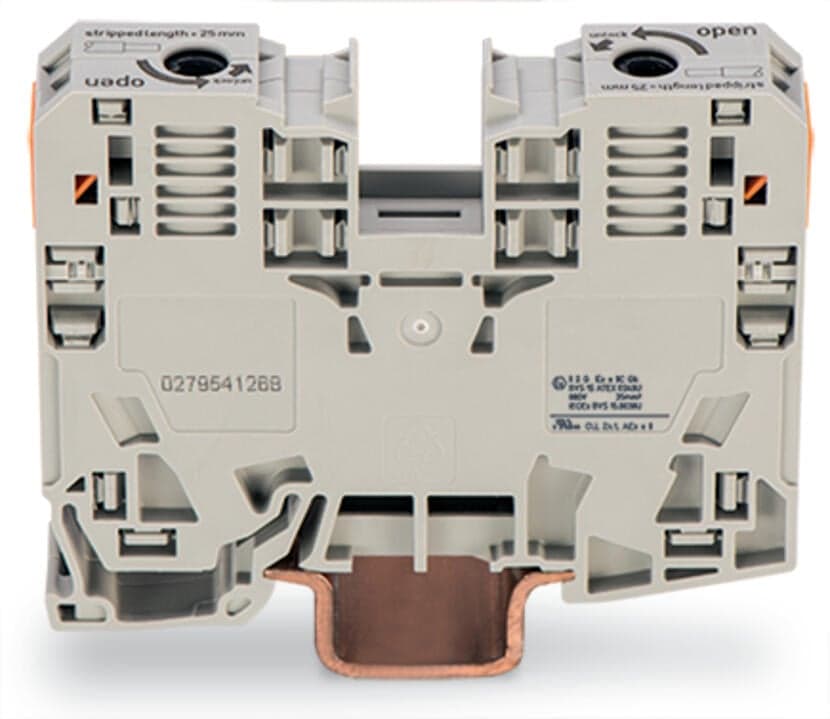

Product Model
285-935
Selling Points
- 1Ensures high reliability in hazardous environments.
- 2Secure and efficient wiring with copper conductors.
- 3Easy installation on standard DIN rails.
- 4Handles high voltage requirements with ease.
- 5Supports high current flow with jumper included.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 16?mm?/ 0.63?inches | Height | 86?mm?/ 3.386?inches |
Depth from upper-edge of DIN-rail | 63?mm?/ 2.48?inches | Mounting type | DIN-rail mounting |
Mounting (note) | only suitable for DIN 35 x 15 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.717MJ |
Weight | 79.2g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-20 |
eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 15?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4055143418539 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | ATEX: PTB 98 ATEX 3134 U (Ex eb IIC Gb) | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 115A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 115A |
Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 115A |
Rated voltage CSA (Use Group D) | 600V | Rated current CSA (Use Group D) | 115A |
Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” | Rated voltage EN (Ex e II) | 880V |
Rated current (Ex e II) | 101A | Rated current (Ex e II) with jumper | 75A |
Power loss, per pole (potential) | 2.652W | Rated current I<sub>N</sub> for specified power loss | 101A |
Resistance value for specified, current-dependent power loss | 0Ω | Connection technology | POWER CAGE CLAMP |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 35 mm2 | Solid conductor | 6 … 35?mm2?/ 8 … 2?AWG |
Stranded conductor | 6 … 35?mm2?/ 8 … 2?AWG | Fine-stranded conductor | 6 … 35?mm2?/ 8 … 2?AWG |
Fine-stranded conductor; with insulated ferrule | 6 … 35?mm2?/ 8 … 2?AWG | Fine-stranded conductor; with uninsulated ferrule | 6 … 35?mm2?/ 8 … 2?AWG |
Strip length | 25?mm?/ 0.98?inches | Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
