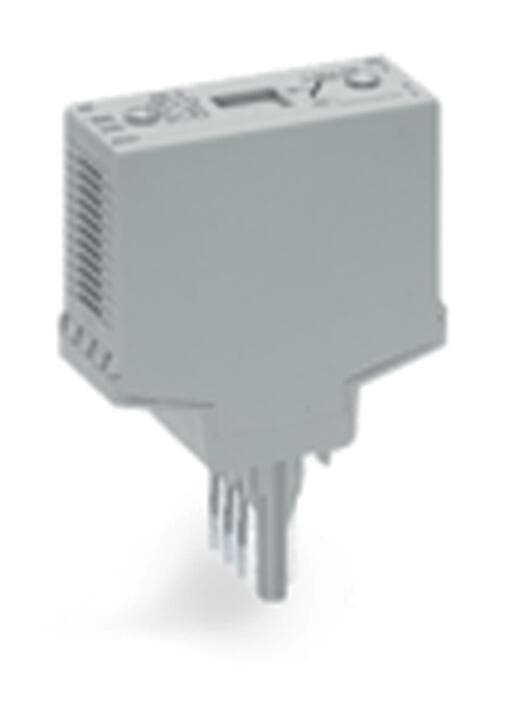

Product Model
286-112
Selling Points
- 1High-Quality Construction: Made from durable materials for long-lasting performance.
- 2Compact Design: 20 mm wide, 52 mm deep, perfect for space-constrained environments.
- 3Robust Electrical Specifications: Rated continuous current of 6 A and surge voltage of 4 kV.
- 4Easy Installation: Pluggable module for receptacle terminal blocks, ensuring seamless integration.
- 5Versatile Application: Suitable for a wide range of industrial and automation applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated continuous current | 6A | Rated voltage | 250V |
Rated surge voltage | 4kV | Pollution degree | 3 |
Number of poles | 8 | Width | 20?mm?/ 0.787?inches |
Height | 52 mm / 2.047 inches | Depth from upper-edge of DIN-rail | 82.5 mm / 3.243 inches |
Note (dimensions) | Depth including carrier terminal block | Housing design | Plug for carrier terminal blocks |
Mounting type | Pluggable module for receptacle terminal blocks | Color | gray |
Fire load | 0.403MJ | Weight | 18.3g |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-18-27-02 |
eCl@ss 9.0 | 27-18-27-02 | ETIM 9.0 | EC001031 |
ETIM 8.0 | EC001031 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918840118 |
Customs tariff number | 8547200000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
