Product Model

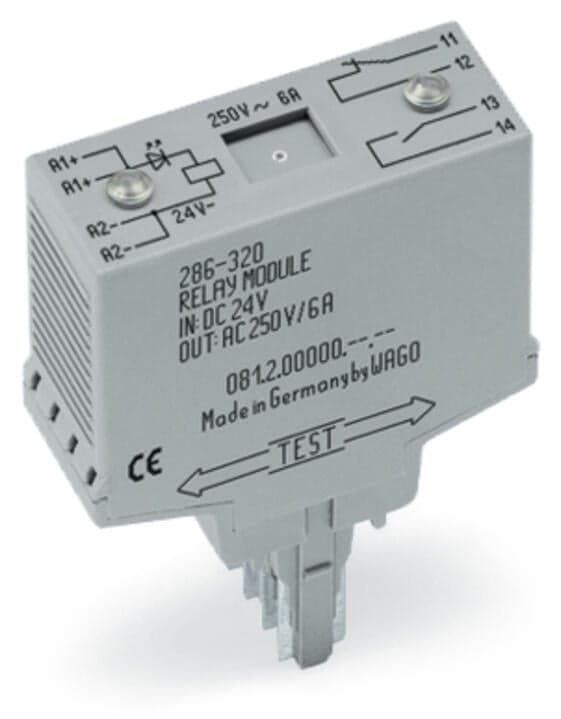

286-320/004-000
Selling Points
- 1Reliable Operation: Designed with robust electromechanical components for consistent performance.
- 2Efficient Design: Compact size (20 mm width) and low weight (29.854 g) for space-saving installations.
- 3Railway Compliance: Meets railway standards with a nominal input voltage of 24 VDC.
- 4IP20 Protection: Ensures safe operation in various environments with an IP20 protection rating.
- 5Easy Installation: Pluggable module for receptacle terminal blocks simplifies mounting and connection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated voltage | 250V | Rated surge voltage | 4kV |
Pollution degree | 2 | Dielectric strength (control/load circuit) (AC, 1?min) | 3?kVrms |
Dielectric strength (open contact) (AC, 1?min) | 1?kVrms | Dielectric strength (load/load circuit) (AC, 1?min) | 1.5?kVrms |
Protection type | IP20 | Width | 20?mm?/ 0.787?inches |
Height | 52 mm / 2.047 inches | Depth from upper-edge of DIN-rail | 82.5 mm / 3.248 inches |
Note (dimensions) | Depth including carrier terminal block | Mounting type | Pluggable module for receptacle terminal blocks |
Note (material data) | Information on material specifications can be found here | Color | gray |
Fire load | 0.414MJ | Weight | 29.9g |
Ambient temperature (operation at U<sub>N</sub>) | -25 … +70 °C | Ambient temperature (storage) | -25 … +70 °C |
Processing temperature | -25 … +50?°C | Relative humidity | 5 … 85?% (no condensation permissible) |
Operating altitude (max.) | 2000m | Standards/specifications | EN 60664-1 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-37-16-01 |
eCl@ss 9.0 | 27-37-16-01 | ETIM 9.0 | EC001437 |
ETIM 8.0 | EC001437 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332426923 |
Customs tariff number | 8536490050 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 610345a0-916d-4e10-a358-1e6f85c3dbbb |
SCIP notification number (Belgium) | e46e67b7-9799-49c8-9216-87539f99f8dc | SCIP notification number (Bulgaria) | aa9b4762-31f1-4f75-bbb5-81dd1ba04525 |
SCIP notification number (Czech Republic) | 55e689a3-144c-4552-abf2-cab40c32c484 | SCIP notification number (Denmark) | 02a05754-be9c-4031-aa17-03899f4015cb |
SCIP notification number (Finland) | 8e9a5848-167c-44a8-aa61-c86d6d287e86 | SCIP notification number (France) | c25fbdb2-eb64-49e6-bd57-798fe9a34dee |
SCIP notification number (Germany) | 641e9fcb-9af4-48c1-ab2f-6f7251da2952 | SCIP notification number (Hungary) | e27f81d5-cddb-40e4-a0fe-3448cf4e1057 |
SCIP notification number (Italy) | 7206583b-b73e-427a-81e3-f098457f4db3 | SCIP notification number (Netherlands) | fcaaa6cb-5d4e-4fd6-a609-720c08cbc672 |
SCIP notification number (Poland) | 6fcaba71-86ba-473f-8ce1-f7c20bd08ff5 | SCIP notification number (Romania) | 617886a9-9671-4421-a55f-b4a493b95858 |
SCIP notification number (Sweden) | 571c9552-ed34-491b-ad09-e4fc1195bf0d | Nominal input voltage U<sub>N</sub> | DC?24?V |
Input voltage range | -30 … +25?% | Nominal input current at U<sub>N</sub> | 20?mA |
Number of break/switch-off contacts | 1 | Number of make/switch-on contacts | 1 |
Contact material (relay) | AgSnO2 | Limiting continuous current | 6?A |
Inrush current (resistive) max. | (AC) 15?A?/ 1?s | Switching Voltage, Max. | AC?250?V |
Switching power (resistive) max. | AC?1500?VA | Pull-in time (typ.) | 10ms |
Drop-out time (typ.) | 4ms | Bounce time (typ.) | 1ms |
Status indicator | Red LED |
Specifications may be subject to change without notice
