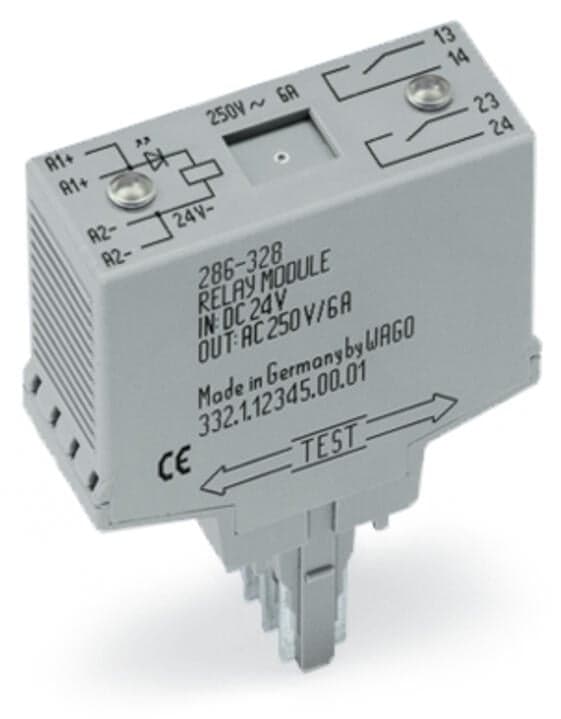

Product Model
286-328
Selling Points
- 1Reliable Automation Solution: Designed for precise control in automation systems.
- 224VDC Operation: Compatible with standard 24VDC control voltages.
- 36A Contact Rating: Handles up to 6A of current with high reliability.
- 4Plug-In Connections: Easy mounting with plug-in terminal blocks.
- 5IP20 Rated: Meets international standards for protection against solid particles.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated voltage | 300V | Rated surge voltage | 4kV |
Overvoltage category | II | Pollution degree | 2 |
Dielectric strength (control/load circuit) (AC, 1?min) | 3?kVrms | Dielectric strength (open contact) (AC, 1?min) | 1?kVrms |
Dielectric strength (load/load circuit) (AC, 1?min) | 1.5?kVrms | Insulation type (control/load circuit) | Reinforced insulation (safe isolation) |
Insulation type (load/load circuit) | Functional insulation | Insulation type (between adjacent devices of the same type) | Reinforced insulation (safe isolation) |
Protection type | IP20 | Width | 20?mm?/ 0.787?inches |
Height | 52 mm / 2.047 inches | Depth from upper-edge of DIN-rail | 82.5 mm / 3.248 inches |
Note (dimensions) | Depth including carrier terminal block | Mounting type | Pluggable module for receptacle terminal blocks |
Note (material data) | Information on material specifications can be found here | Color | gray |
Fire load | 0.412MJ | Weight | 28.5g |
Ambient temperature (operation at U<sub>N</sub>) | -25 … +40 °C | Ambient temperature (storage) | -25 … +70 °C |
Processing temperature | -25 … +50?°C | Relative humidity | 5 … 93?% (no condensation permissible) |
Operating altitude (max.) | 2000m | Standards/specifications | EN 61010-2-201 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-37-16-01 |
eCl@ss 9.0 | 27-37-16-01 | ETIM 9.0 | EC001437 |
ETIM 8.0 | EC001437 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454319540 |
Customs tariff number | 8536490050 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 9ec331bc-4e3f-4a6f-a0b5-541d7bf95266 |
SCIP notification number (Belgium) | ad41781b-e80b-48f9-a959-b0543994faf7 | SCIP notification number (Bulgaria) | 3dbcb743-ecea-4504-89e0-e4b455be2431 |
SCIP notification number (Czech Republic) | 090ee38e-ef53-4f90-9a7f-f43f601b0feb | SCIP notification number (Denmark) | e3f21f7b-83e9-4f09-8502-9010a9097ff3 |
SCIP notification number (Finland) | 03ab8861-c498-492f-9a62-43ba997cc89e | SCIP notification number (France) | 685a717a-c093-4a4b-96e9-ab4f048cdcc5 |
SCIP notification number (Germany) | ca6ddfe7-c4de-4e2a-bfd5-7717e12733d1 | SCIP notification number (Hungary) | 6b876fc6-fc87-4840-8c03-c3c0c0a85f7e |
SCIP notification number (Italy) | ee635f1f-4d3c-49a8-b1dd-e712c9283c29 | SCIP notification number (Netherlands) | 8bd75dca-8da8-44ac-bde3-c0c8e8093933 |
SCIP notification number (Poland) | 4e1ff327-c58c-4927-af20-324698879275 | SCIP notification number (Romania) | 2481b2b6-e784-41d0-adc7-1dea3ddc97b7 |
SCIP notification number (Sweden) | 10af2af1-14c1-458b-977b-316abee978dd | Nominal input voltage U<sub>N</sub> | DC?24?V |
Input voltage range | ±10?% | Nominal input current at U<sub>N</sub> | 8?mA |
Number of make/switch-on contacts | 2 | Contact material (relay) | AgSnO2 |
Limiting continuous current | 6?A | Inrush current (resistive) max. | (AC) 15?A?/ 1?s |
Switching Voltage, Max. | AC?250?V | Switching power (resistive) max. | AC?1500?VA |
Pull-in time (typ.) | 10ms | Drop-out time (typ.) | 4ms |
Bounce time (typ.) | 1ms | Electrical life (NO; resistive load; 23?°C) | 100?x 103 switching operations |
Mechanical life | 50?x 10? switching operations | Status indicator | Red LED |
