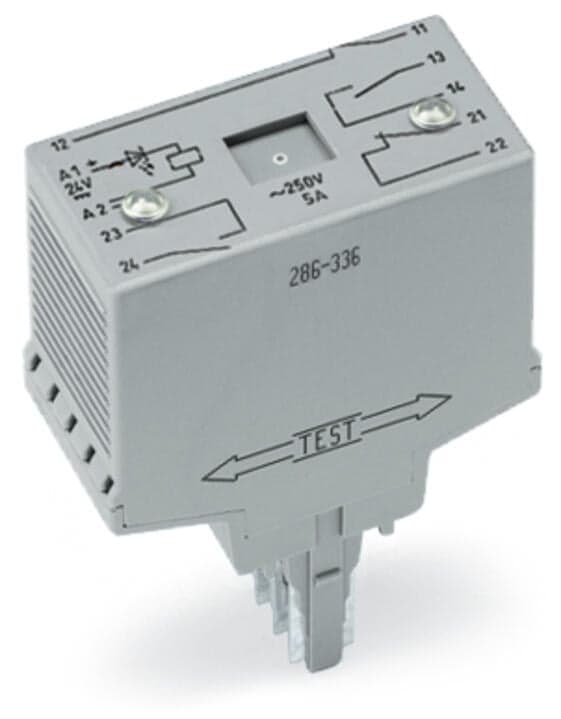

Product Model
286-336/001-000
Selling Points
- 1High-Reliability DC 24V Relay: Operates with a nominal input voltage of 24VDC.
- 22 NO and 2 NC Contacts: Includes two normally open (NO) and two normally closed (NC) contacts.
- 3IP20 Protection: Ensures reliable operation in harsh environments with an IP20 protection rating.
- 4Compact Design: Measures 25mm in width and 82.5mm in height, making it suitable for space-constrained applications.
- 5AgNi + Au Contacts: Constructed with hard gold-plated silver-nickel (AgNi + Au) contacts for durability and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated voltage | 250V | Rated surge voltage | 2.5kV |
Pollution degree | 2 | Dielectric strength (control/load circuit) (AC, 1?min) | 1.5?kVrms |
Protection type | IP20 | Width | 25?mm?/ 0.984?inches |
Height | 52 mm / 2.047 inches | Depth from upper-edge of DIN-rail | 82.5 mm / 3.248 inches |
Note (dimensions) | Depth including carrier terminal block | Mounting type | Pluggable module for receptacle terminal blocks |
Note (material data) | Information on material specifications can be found here | Color | gray |
Fire load | 15.112MJ | Weight | 41g |
Ambient temperature (operation at U<sub>N</sub>) | -25 … +70 °C | Ambient temperature (storage) | -25 … +70 °C |
Processing temperature | -25 … +50?°C | Relative humidity | 5 … 85?% (no condensation permissible) |
Operating altitude (max.) | 2000m | Standards/specifications | EN 60664-1 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-37-16-01 |
eCl@ss 9.0 | 27-37-16-01 | ETIM 9.0 | EC001437 |
ETIM 8.0 | EC001437 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143104746 |
Customs tariff number | 8536490080 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 0a793143-49f9-4230-a7c2-fc470a395514 |
SCIP notification number (Belgium) | 453f8920-e96d-40ba-9383-2af524fc623f | SCIP notification number (Bulgaria) | 880f53e2-0ae2-4667-baa1-954f12b89cd1 |
SCIP notification number (Czech Republic) | 9c21aa3d-2696-4dd2-9bc6-a4b95876e79a | SCIP notification number (Denmark) | 13a39cb9-98ec-458a-bc7c-9e8617817518 |
SCIP notification number (Finland) | 3aa3f4d2-160d-482f-8b4b-6922d0195b73 | SCIP notification number (France) | 624a2c7e-e10f-4fc0-bee8-915e3274a034 |
SCIP notification number (Germany) | 85020e9d-7328-4dd4-a608-8ec2a6697673 | SCIP notification number (Hungary) | a409d1b6-f6d2-44ce-af6a-25c19ec5b265 |
SCIP notification number (Italy) | 1d2acd3b-2431-43d7-b060-66284d6ae26b | SCIP notification number (Netherlands) | c7f767b4-b6af-4f42-8303-f5dab8dff9d1 |
SCIP notification number (Poland) | a471ada6-9072-48b5-8684-283220f57979 | SCIP notification number (Romania) | fbe0b43a-0dc4-4263-be78-bdec9d72cf89 |
SCIP notification number (Sweden) | 4bfb380a-0379-4ff8-a7c1-ef2b4f12ef13 | Nominal input voltage U<sub>N</sub> | DC?24?V |
Input voltage range | -30 … +25?% | Nominal input current at U<sub>N</sub> | 9?mA |
Number of break/switch-off contacts | 2 | Number of make/switch-on contacts | 2 |
Contact material (relay) | AgNi + Au | Limiting continuous current | 5?A |
Switching Voltage, Max. | AC?250?V | Pull-in time (typ.) | 8ms |
Drop-out time (typ.) | 5ms | Bounce time (typ.) | 1ms |
Specifications may be subject to change without notice
