Product Model

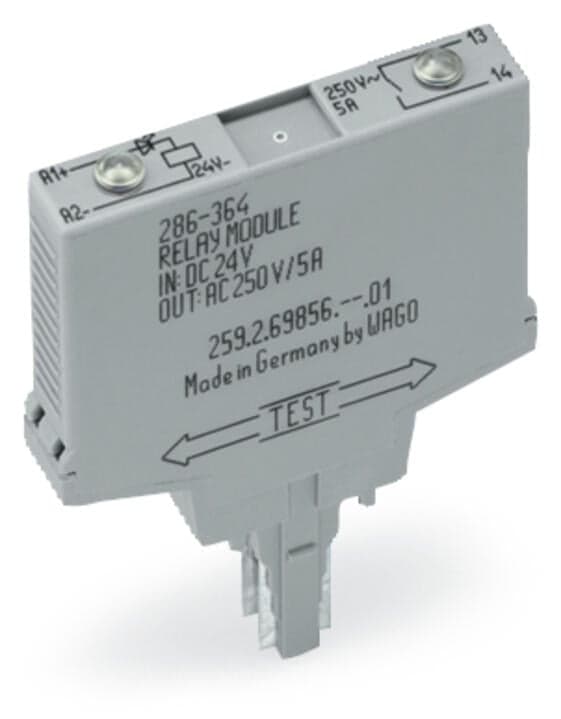

286-364/004-000
Selling Points
- 1Reliable 24VDC operation with 1 make contact.
- 2Limiting continuous current of 3A for safe switching.
- 3Compact design with a module width of 10 mm.
- 4Red status indicator for easy monitoring.
- 5Suitable for railway applications with DIN-rail mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | This relay is designed for use in signal processing networks, which are not supplied by the low-voltage power supply networks. | Rated voltage | 300V |
Overvoltage category | II | Pollution degree | 2 |
Dielectric strength (control/load circuit) (AC, 1?min) | 3?kVrms | Dielectric strength (open contact) (AC, 1?min) | 1?kVrms |
Insulation type (control/load circuit) | Reinforced insulation (safe isolation) | Insulation type (open contact) | Functional insulation |
Insulation type (adjacent devices) | Reinforced insulation (safe isolation) | Protection type | IP20 |
Width | 10?mm?/ 0.394?inches | Height | 52 mm / 2.047 inches |
Depth from upper-edge of DIN-rail | 82.5 mm / 3.248 inches | Note (dimensions) | Depth including carrier terminal block |
Mounting type | Pluggable module for receptacle terminal blocks | Note (material data) | Information on material specifications can be found here |
Color | gray | Fire load | 0.298MJ |
Weight | 19.4g | Ambient temperature (operation at U<sub>N</sub>) | -25 … +70 °C |
Ambient temperature (storage) | -25 … +70 °C | Processing temperature | -25 … +50?°C |
Temperature range of connection cable | ≥ (Tambient+ 20 K) | Relative humidity | 5 … 85?% (no condensation permissible) |
Operating altitude (max.) | 2000m | Standards/specifications | EN 50121-3-2 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-37-16-01 |
eCl@ss 9.0 | 27-37-16-01 | ETIM 9.0 | EC001437 |
ETIM 8.0 | EC001437 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454525002 |
Customs tariff number | 8536490050 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Bulgaria) | 13316a8f-29c5-45a3-81f8-4e33dd677464 |
SCIP notification number (Czech Republic) | 6cadb829-54dd-41ef-947c-e5ec9ec1ed66 | Nominal input voltage U<sub>N</sub> | DC?24?V |
Input voltage range | -30 … +25?% | Nominal input current at U<sub>N</sub> | 8?mA |
Number of make/switch-on contacts | 1 | Contact material (relay) | AgSnO2 |
Limiting continuous current | 3?A | Switching Voltage, Max. | AC?250?V |
Pull-in time (typ.) | 8ms | Drop-out time (typ.) | 4ms |
Bounce time (typ.) | 2ms | Status indicator | Red LED |
