Product Model

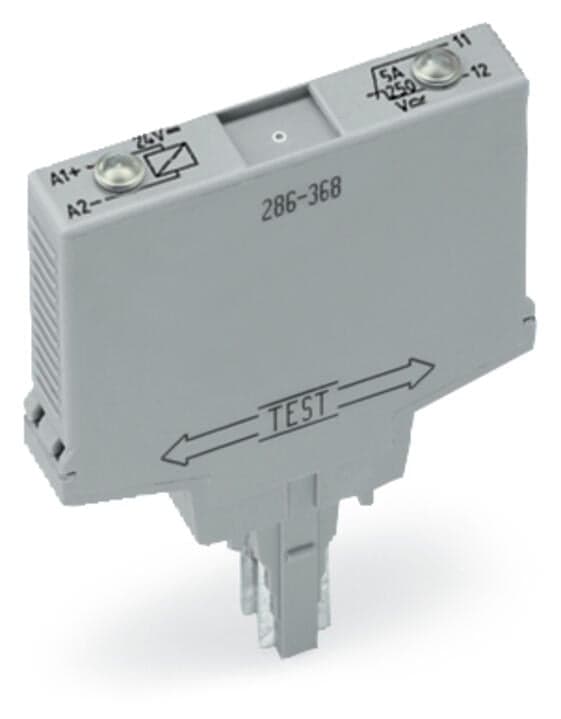

286-368
Selling Points
- 1Designed with AgSnO2 contact material for long-lasting performance.
- 2Handles up to 5 A at 24 VDC, ensuring smooth and reliable operation.
- 3Rated for 250 VDC and 4 kV surge voltage, providing excellent protection against electrical surges.
- 4Features push-in CAGE CLAMP technology for quick and secure conductor connections.
- 5Suitable for a wide range of automation applications, including control and load circuits.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated voltage | 250V | Rated surge voltage | 4kV |
Pollution degree | 2 | Dielectric strength (control/load circuit) (AC, 1?min) | 4?kVrms |
Protection type | IP20 | Width | 10?mm?/ 0.394?inches |
Height | 52 mm / 2.047 inches | Depth from upper-edge of DIN-rail | 82.5 mm / 3.248 inches |
Note (dimensions) | Depth including carrier terminal block | Mounting type | Pluggable module for receptacle terminal blocks |
Note (material data) | Information on material specifications can be found here | Color | gray |
Fire load | 0.298MJ | Weight | 19.1g |
Ambient temperature (operation at U<sub>N</sub>) | -25 … +40 °C | Ambient temperature (storage) | -25 … +70 °C |
Processing temperature | -25 … +50?°C | Relative humidity | 5 … 85?% (no condensation permissible) |
Operating altitude (max.) | 2000m | Standards/specifications | EN 60664-1 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-37-16-01 |
eCl@ss 9.0 | 27-37-16-01 | ETIM 9.0 | EC001437 |
ETIM 8.0 | EC001437 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454384036 |
Customs tariff number | 8536490050 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 36497ae2-55f1-4340-a81f-1e3485ef3972 |
SCIP notification number (Belgium) | b642b671-8ef5-4906-a7c9-2f5e80fe3660 | SCIP notification number (Bulgaria) | c91ef76f-81f8-4e0e-9eec-3ad9927ebe53 |
SCIP notification number (Czech Republic) | 60779511-3574-4177-a2cf-6420095228d6 | SCIP notification number (Denmark) | 35baaaa6-709f-4bed-b488-23c9643ba34c |
SCIP notification number (Finland) | 6d55146d-e74d-43c3-b45a-f2ff48aee3dd | SCIP notification number (France) | 32d9add0-26d8-401c-a183-e3085d344995 |
SCIP notification number (Germany) | a778b3e8-9df1-4ab0-91fb-a1ba9f4ae9a0 | SCIP notification number (Hungary) | f5ec93a7-19f8-40b6-85d7-6461ddd04598 |
SCIP notification number (Italy) | 66b4be46-be73-4cfd-a2a9-98c21d72800c | SCIP notification number (Netherlands) | 4af6202b-3d13-4512-9868-8ebe884382b1 |
SCIP notification number (Poland) | 578745b3-9a9c-4d14-8e14-31ed5af9dd23 | SCIP notification number (Romania) | dbbe6f5e-f2e5-4ca1-a316-1c294a64b9fc |
SCIP notification number (Sweden) | 924ac231-e702-4595-bed8-287a6eb8202a | Nominal input voltage U<sub>N</sub> | DC?24?V |
Input voltage range | ±10?% | Nominal input current at U<sub>N</sub> | 21?mA |
Number of break/switch-off contacts | 1 | Contact material (relay) | AgNi |
Limiting continuous current | 5?A | Switching Voltage, Max. | AC?250?V |
Switching power (resistive) max. | AC?1250?VA | Pull-in time (typ.) | 10ms |
Drop-out time (typ.) | 4ms | Bounce time (typ.) | 3ms |
Mechanical life | 5?x 10? switching operations | Status indicator | Red LED |
Specifications may be subject to change without notice
