Product Model

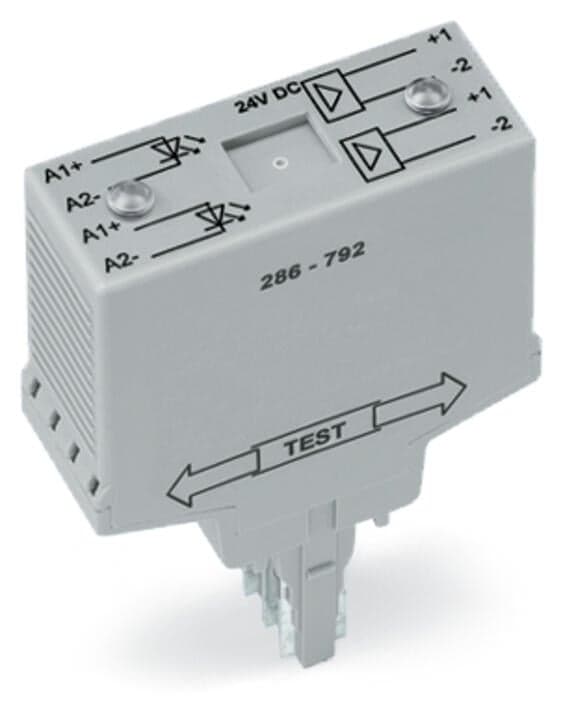

286-792
Selling Points
- 1Compact and space-efficient design for easy integration into industrial control systems.
- 2Built with high-quality components for reliable operation in demanding environments.
- 3Offers 2 inverted outputs for flexible configuration and customization.
- 4Simple and tool-free installation process, reducing setup time and effort.
- 5Suitable for a wide range of industrial applications, including automation and control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pollution degree | 2 | Dielectric strength (control/load circuit) (AC, 1?min) | 2.5?kVrms |
Protection type | IP20 | Width | 20?mm?/ 0.787?inches |
Height | 52 mm / 2.047 inches | Depth from upper-edge of DIN-rail | 82.5 mm / 3.25 inches |
Note (dimensions) | Depth including carrier terminal block | Mounting type | Pluggable module for receptacle terminal blocks |
Note (material data) | Information on material specifications can be found here | Color | gray |
Fire load | 0.416MJ | Weight | 23.4g |
Ambient temperature (operation at U<sub>N</sub>) | -25 … +40 °C | Ambient temperature (storage) | -25 … +40 °C |
Processing temperature | -25 … +50?°C | Relative humidity | 5 … 95?% (no condensation permissible) |
Operating altitude (max.) | 2000m | Standards/specifications | EN 60664-1 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-26-15-03 |
eCl@ss 9.0 | 27-26-15-03 | ETIM 9.0 | EC001504 |
ETIM 8.0 | EC001504 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?(1)?pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4045454860448 |
Customs tariff number | 8541500080 | RoHS Compliance Status | Compliant,No Exemption |
Nominal input voltage U<sub>N</sub> | DC?24?V | Input voltage range (high level) | DC?7.5 … 30?V |
Nominal input current at U<sub>N</sub> | 15?mA | Circuit type | 2-way |
Limiting continuous current | 0.25?A | Nominal output voltage | DC?24?V |
Output voltage range | DC 20 … 30?V | Voltage drop | ≤ 2.5?VDC |
Leakage current at rated voltage | ≤?3?μA | Turn-on time | ≤?60?μs |
Turn-off time | ≤?120?μs | Switching frequency | ≤?1.5?kHz |
Specifications may be subject to change without notice
