Product Model
286-807
Selling Points

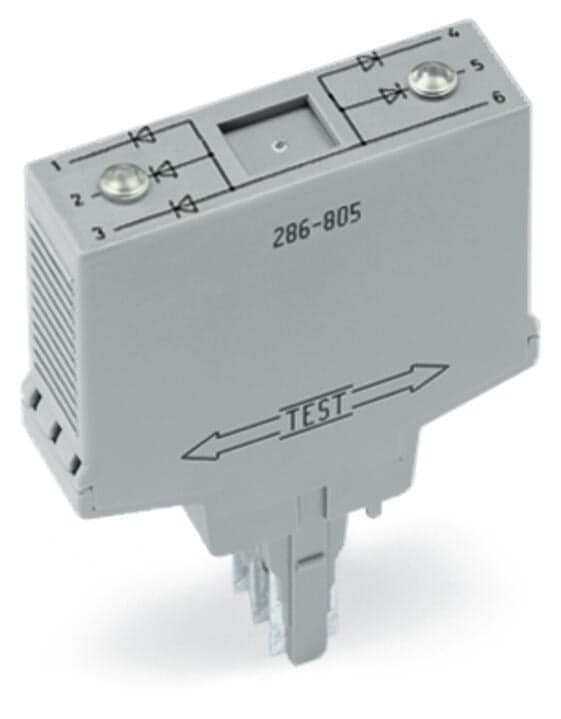

- 1Reliable Control Solutions: The WAGO 286-807 Diode Gate Module ensures secure and reliable wiring with its 7 diodes 1N4007 and common anode design.
- 2High Voltage Compatibility: Compatible with control voltages up to 250VAC/250VDC, making it suitable for various industrial applications.
- 3Easy Mounting: Features plug-in mounting for carrier terminal blocks, simplifying installation and reducing setup time.
- 4Durable Construction: Constructed with light gray housing and CAGE CLAMP spring connections for secure wiring.
- 5Versatile Use: Ideal for use in industrial settings where reliable diode gate functionality is required, such as in automation and control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Max. permissible forward current per the manufacturer’s data sheet. With all diodes loaded, the continuous current must be reduced to 0.45 A. | Operating voltage | ≤?AC/DC?250?V |
Peak reverse voltage | 1000V | Rectified current for each diode (resistive) | 1A |
Type of diode | 1N4007; with common anode | Number/type of diode/LED | 7 diodes |
Rated voltage | 250V | Rated surge voltage | 4kV |
Pollution degree | 2 | Width | 20?mm?/ 0.787?inches |
Height | 52 mm / 2.047 inches | Depth from upper-edge of DIN-rail | 82.5 mm / 3.25 inches |
Note (dimensions) | Depth including carrier terminal block | Mounting type | Pluggable module for receptacle terminal blocks |
Housing design | Plug for carrier terminal blocks | Color | gray |
Fire load | 0.413MJ | Weight | 23g |
Ambient temperature (operation) | -25 … +40 °C | Relative humidity | 5 … 95?% (no condensation permissible) |
Operating altitude (max.) | 2000m | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-37-12-92 | eCl@ss 9.0 | 27-37-92-16 |
ETIM 9.0 | EC002024 | ETIM 8.0 | EC002024 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?(1)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454198084 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | 65ac8316-e37d-4c58-bb30-416abf4b60f3 | SCIP notification number (Belgium) | 20ff7050-194e-45c8-ac55-a2a5d952d042 |
SCIP notification number (Bulgaria) | d0c33f81-6d34-4d00-9ec2-54d7ae460503 | SCIP notification number (Czech Republic) | 07539d46-8d16-44e9-a26d-e3f913a3f86d |
SCIP notification number (Denmark) | 2f6f4612-3016-4674-9567-46c2a2a05a48 | SCIP notification number (Finland) | ad93c21a-c3f6-4871-8bfc-98001f7916a4 |
SCIP notification number (France) | 2ddb0758-73fb-4728-8a3f-fc7e1365094d | SCIP notification number (Germany) | 532ce08e-068d-4731-ab8a-b05bb7d3dd75 |
SCIP notification number (Hungary) | f79d8925-01b8-4a40-b191-e4819bae3c78 | SCIP notification number (Italy) | 62312609-b561-4823-a357-01ee6f7be4c9 |
SCIP notification number (Netherlands) | 923c7bb4-bbae-4f8b-8ada-27a1e2e52b2a | SCIP notification number (Poland) | 68367116-ecba-4d56-a111-7a44368792ef |
SCIP notification number (Romania) | 390ad834-b628-4204-8480-73e7d0b531f2 | SCIP notification number (Sweden) | aec73862-a4ce-4ea9-b7c4-91780c38a176 |
Specifications may be subject to change without notice
