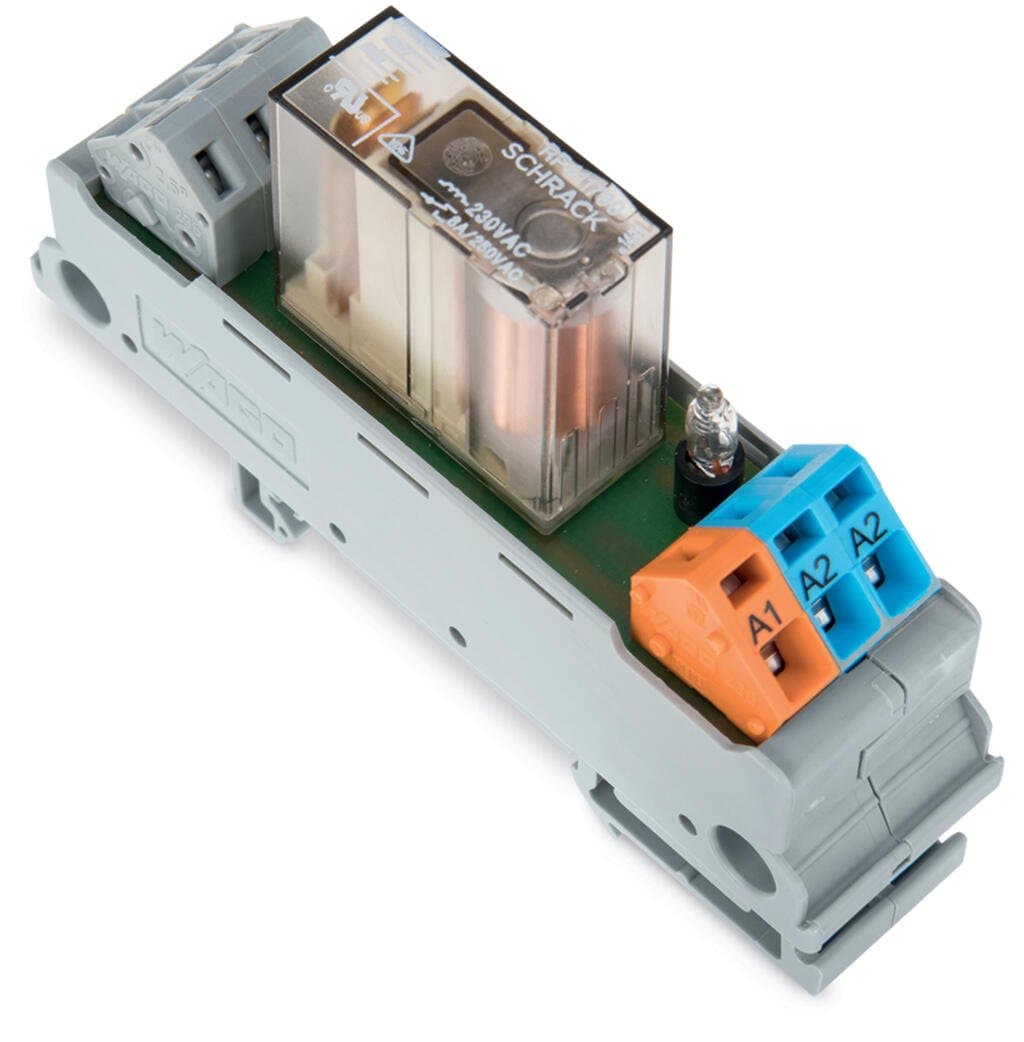

Product Model
288-508
Selling Points
- 1Built with AgNi 90/10 contact material for long-lasting performance.
- 2Ideal for various industrial applications requiring safe signal processing.
- 3Withstands continuous current up to 6 A and makes current up to 16 A (AC) for robust operation.
- 4Mounts easily on DIN-35 rail, ensuring efficient use of space in control systems.
- 5Meets pollution degree 2 standards and has a dielectric strength of 4 kVrms for secure operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated voltage | 300V | Rated surge voltage | 2.5kV |
Pollution degree | 2 | Dielectric strength (control/load circuit) (AC, 1?min) | 4?kVrms |
Dielectric strength (open contact) (AC, 1?min) | 1?kVrms | Connection technology | CAGE CLAMP? |
WAGO connector | WAGO 236 Series | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches |
Width | 20.5?mm?/ 0.807?inches | Height | 85?mm?/ 3.346?inches |
Depth from upper-edge of DIN-rail | 48?mm?/ 1.89?inches | Mounting type | DIN-35 rail |
Note (material data) | Information on material specifications can be found here | Color | gray |
Fire load | 0.772MJ | Weight | 40.4g |
Ambient temperature (operation at U<sub>N</sub>) | -25 … +40 °C | Ambient temperature (storage) | -40 … +80 °C |
Processing temperature | -25 … +50?°C | Standards/specifications | EN 60664-1 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-37-16-01 |
eCl@ss 9.0 | 27-37-16-01 | ETIM 9.0 | EC001437 |
ETIM 8.0 | EC001437 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454192686 |
Customs tariff number | 8536490050 | CAS-No. | 80-05-7 |
REACH Candidate List Substance | 4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | 6bc2e648-cf09-4497-834f-2bb17cd10b35 | SCIP notification number (Belgium) | 4b46c18f-3115-4e08-a360-b1247623e7c2 |
SCIP notification number (Bulgaria) | 068927df-6d56-4a4f-82f1-d29e894b2f54 | SCIP notification number (Czech Republic) | 2f68d7ff-27f0-4487-a2e1-2afbaacecfad |
SCIP notification number (Denmark) | ba5f099e-8de1-439b-872d-b439403d09b9 | SCIP notification number (Finland) | 3c457995-bb3e-4c01-94e2-51b781005bc9 |
SCIP notification number (France) | 97596b31-8677-43fb-89c3-bb034f10e8eb | SCIP notification number (Germany) | 50eb1042-e19b-4646-b968-3d5904c94810 |
SCIP notification number (Hungary) | ea881867-6997-44bf-88c9-e97d46d1b029 | SCIP notification number (Italy) | 0207166e-7ca8-4719-b159-a3a14f6c070f |
SCIP notification number (Netherlands) | 58089748-d777-46bf-8f42-c2f22c07fc01 | SCIP notification number (Poland) | 19c85501-97f5-40b9-a7b5-efdce2acfc92 |
SCIP notification number (Romania) | 237f8336-b5a6-426b-abb1-402156a2cdcd | SCIP notification number (Sweden) | 7b2f828d-9f3f-45ff-91c4-16e5f872c76f |
Nominal input voltage U<sub>N</sub> | AC?230?V | Input voltage range | ±10?% |
Nominal input current at U<sub>N</sub> | 7?mA | Number of changeover contacts | 1 |
Contact material (relay) | AgNi 90/10 | Limiting continuous current | 6?A |
Inrush current (resistive) max. | (AC) 16?A?/ 4?s | Switching Voltage, Max. | AC?250?V |
Switching power (resistive) max. | AC?1500?VA | Pull-in time (typ.) | 9ms |
Drop-out time (typ.) | 3ms | Bounce time (typ.) | 2ms |
Electrical life (NO; resistive load; 23?°C) | 100?x 103 switching operations | Mechanical life | 30?x 10? switching operations |
Specifications may be subject to change without notice
