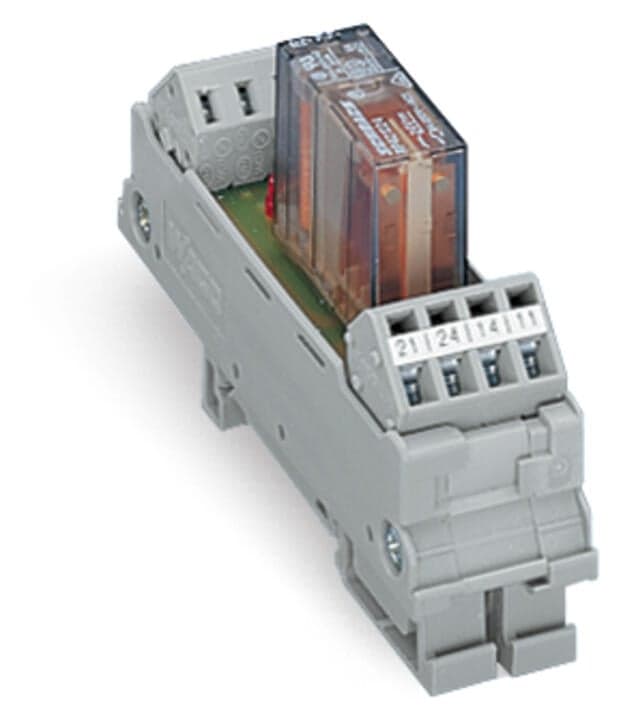

Product Model
288-512
Selling Points
- 1Reliable 24V AC/DC Operation: Switch between AC and DC environments with a nominal input voltage of 24V AC/DC.
- 2High Current Capacity: Supports a limiting continuous current of 6A, making it suitable for various control applications.
- 3Compact Design: Measuring 23 mm in width, this module is perfect for space-constrained control panels.
- 4Durable Contacts: Features AgNi 0.15 contact material for long-lasting performance and high electrical life.
- 5Easy Installation: Utilizes CAGE CLAMP spring connections for secure wiring and mounting on DIN-35 rail.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated voltage | 250V | Rated surge voltage | 2.5kV |
Pollution degree | 2 | Dielectric strength (control/load circuit) (AC, 1?min) | 2?kVrms |
Dielectric strength (open contact) (AC, 1?min) | 1?kVrms | Dielectric strength (load/load circuit) (AC, 1?min) | 1.5?kVrms |
Connection technology | CAGE CLAMP? | WAGO connector | WAGO 236 Series |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Width | 22.5?mm?/ 0.886?inches |
Height | 85?mm?/ 3.346?inches | Depth from upper-edge of DIN-rail | 48?mm?/ 1.89?inches |
Mounting type | DIN-35 rail | Note (material data) | Information on material specifications can be found here |
Color | gray | Fire load | 1.172MJ |
Weight | 48.4g | Ambient temperature (operation at U<sub>N</sub>) | -25 … +40 °C |
Ambient temperature (storage) | -40 … +80 °C | Processing temperature | -25 … +50?°C |
Standards/specifications | EN 60664-1 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-37-16-01 | eCl@ss 9.0 | 27-37-16-01 |
ETIM 9.0 | EC001437 | ETIM 8.0 | EC001437 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?(1)?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4045454413750 | Customs tariff number | 8536490050 |
RoHS Compliance Status | Compliant,No Exemption | Nominal input voltage U<sub>N</sub> | 24 VAC/VDC |
Input voltage range | ±10?% | Nominal input current at U<sub>N</sub> | 22?mA |
Number of changeover contacts | 2 | Contact material (relay) | AgNi 0.15 |
Limiting continuous current | 6?A | Inrush current (resistive) max. | (AC) 14?A?/ 4?s |
Switching Voltage, Max. | AC?250?V | Switching power (resistive) max. | AC?1500?VA |
Pull-in time (typ.) | 8ms | Drop-out time (typ.) | 3ms |
Bounce time (typ.) | 2ms | Electrical life (NO; resistive load; 23?°C) | 100?x 103 switching operations |
Mechanical life | 20?x 10? switching operations |
Specifications may be subject to change without notice
