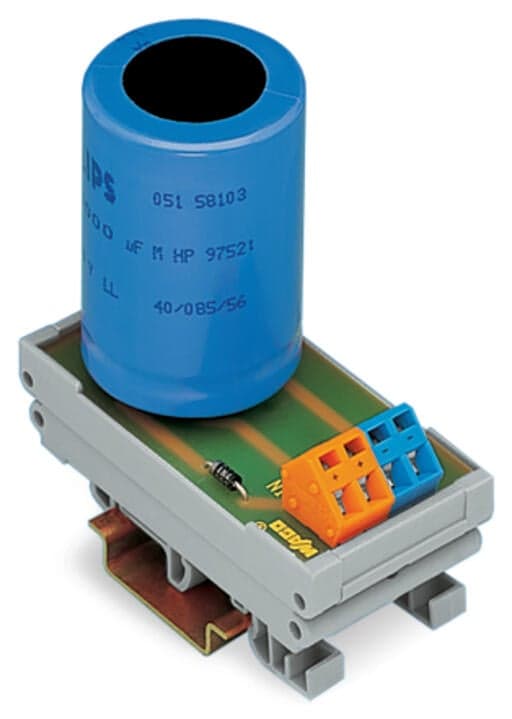

Product Model
288-824
Selling Points
- 1Stabilizes power in electronic circuits with a 10 mF capacitor.
- 2Compatible with 24 VDC nominal voltage.
- 3Compact design suitable for various applications.
- 4High-quality component from a trusted manufacturer, Wago.
- 5Easy integration into existing systems with a 2.50 mm² connection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Notice: Using insufficiently smoothed and unregulated single-phase power supplies may lead to voltage increases by the back-up capacitor module. | Connection technology | CAGE CLAMP? |
WAGO connector | WAGO 236 Series | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches |
Width | 38?mm?/ 1.496?inches | Height | 85?mm?/ 3.346?inches |
Depth from upper-edge of DIN-rail | 81?mm?/ 3.189?inches | Housing design | Mounting carrier |
Mounting type | DIN-35 rail | Color | gray |
Fire load | 0.89MJ | Weight | 101.6g |
Conformity marking | CE | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-04-07-01 | eCl@ss 9.0 | 27-04-07-01 |
ETIM 9.0 | EC002540 | ETIM 8.0 | EC002540 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 8?(1)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454649593 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | 5f79e0aa-2f0b-49f4-b003-dcd5ad5c3506 | SCIP notification number (Belgium) | a4d10e7f-4810-4932-8c96-ec9e9bbc1777 |
SCIP notification number (Bulgaria) | 5bdb77e1-746c-498e-aafc-50d004df968f | SCIP notification number (Czech Republic) | 7d64f929-7103-4f3e-aac1-4db1205a602c |
SCIP notification number (Denmark) | e2b69e29-763d-4c72-919c-bd9c6e2c4d7a | SCIP notification number (Finland) | 30e8b00e-a9db-4ae1-9ae3-e0493b74c2f2 |
SCIP notification number (France) | 1b9d452b-68f6-496c-8243-047124270fa6 | SCIP notification number (Germany) | 5d2ddd3e-b428-4503-b936-4a5bd0c66b20 |
SCIP notification number (Hungary) | f2df32dd-8798-4896-ad13-3de66f63f74c | SCIP notification number (Italy) | 2923de86-1705-457c-89a0-678fdb089258 |
SCIP notification number (Netherlands) | 781b42a9-6019-4810-bacc-9b9953777f98 | SCIP notification number (Poland) | 222639a1-4bf7-486f-a8ed-4815b4dbff98 |
SCIP notification number (Romania) | ae94b7d7-f10a-4504-97b5-a47bcd10c034 | SCIP notification number (Sweden) | 5b380c20-fa31-44b9-91b1-58591f758868 |
Nominal input voltage [V] | DC?24?V | Input voltage range | 0 … +25?% |
Input current I<sub>i</sub> | ≤?1?A | Output voltage range | DC?24?V |
Nominal capacity | 10000μF |
Specifications may be subject to change without notice
