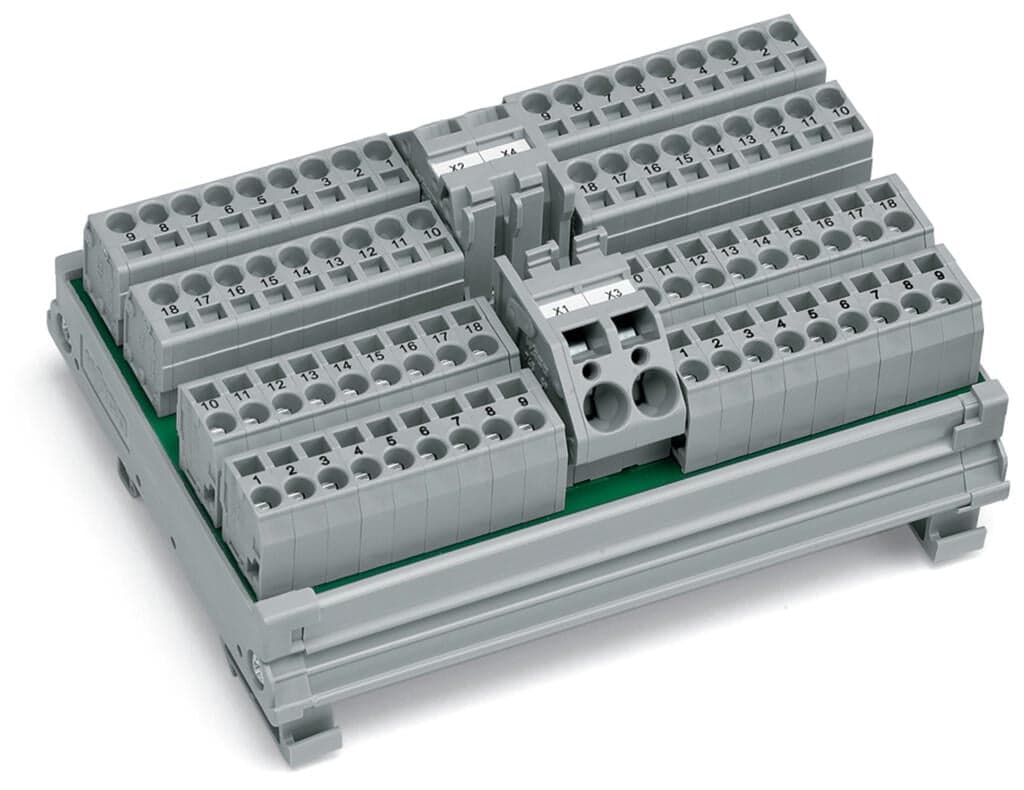

WAGO 288-837 Potential Distribution Module

Selling Points

1Handles up to 4 kV power rating.
2Utilizes CAGE CLAMP spring connections for secure and reliable connections.
3Designed for easy installation on 35 mm DIN rails.
4Offers 19 connection points per potential, enhancing flexibility.
5Built with fine-stranded conductors (0.08 to 2.5 mm) and solid conductors (0.2 to 6 mm), ensuring durability.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Operating voltage	≤?AC/DC?250?V	Current per connection (max.)	12A
Total current per potential (max.)	32A	Rated voltage	250V
Rated surge voltage	4kV	Pollution degree	2
Total number of potentials	4	Clamping units	19
Connection type 1	Power supply	Mating direction	45°
Connection technology	CAGE CLAMP?	WAGO connector	WAGO 745 Series
Solid conductor	0.2 … 6?mm2?/ 24 … 10?AWG	Fine-stranded conductor	0.2 … 6?mm2?/ 24 … 10?AWG
Strip length	11 … 12?mm?/ 0.43 … 0.47?inches	Connection type 2	Connection points
Mating direction 2	45°	Connection technology 2	CAGE CLAMP?
WAGO connector 2	WAGO 739 Series	Solid conductor 2	0.08 … 2.5?mm2?/ 28 … 12?AWG
Fine-stranded conductor 2	0.08 … 2.5?mm2?/ 28 … 12?AWG	Strip length 2	8 … 9?mm?/ 0.31 … 0.35?inches
Note (conductor cross-section)	12 AWG: THHN, THWN	Width	115?mm?/ 4.528?inches
Height	85?mm?/ 3.346?inches	Depth from upper-edge of DIN-rail	45?mm?/ 1.772?inches
Mounting type	DIN-35 rail	Housing design	Mounting carrier
Fire load	1.475MJ	Weight	178.2g
Ambient temperature (operation)	-20 … +50 °C	Ambient temperature (storage)	-40 … +80 °C
Product Group	6 (INTERFACE ELECTRONIC)	eCl@ss 10.0	27-14-11-52
eCl@ss 9.0	27-14-11-52	ETIM 9.0	EC002780
ETIM 8.0	EC002780	ECCN	NO US CLASSIFICATION
PU (SPU)	4?(1)?pcs	Packaging type	box
Country of origin	DE	GTIN	4045454287092
Customs tariff number	8537109150	RoHS Compliance Status	Compliant,No Exemption

Specifications may be subject to change without notice
