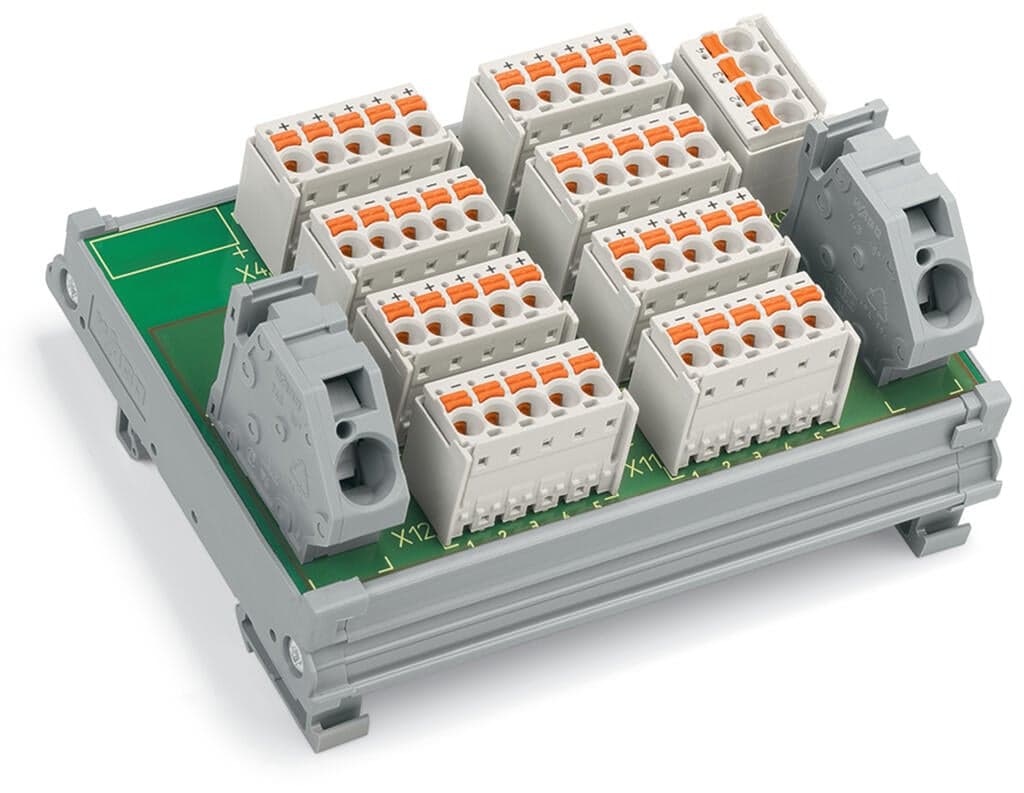

Product Model
288-870/000-030
Selling Points
- 14 Potentials with 6 Connection Points Each: Distributes power efficiently with multiple connection points.
- 222 Ground Clamping Points: Ensures secure grounding for reliable operation.
- 3CAGE CLAMP Technology: Easy and secure connection method.
- 4DIN-35 Rail Mounting: Convenient and space-efficient mounting solution.
- 524VDC Power Distribution: Designed for 24VDC supply voltage, suitable for various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal operating voltage | DC?24?V | Current per connection (max.) | 10A |
Total current per potential (max.) | 10A | Total current 0 V (max.) | 40A |
Total number of potentials | 4 | Clamping units | 28 |
Connection type 1 | Power supply 0 V | Mating direction | 45° |
Connection technology | CAGE CLAMP? | WAGO connector | WAGO 745 Series |
Solid conductor | 0.2 … 16?mm2?/ 24 … 6?AWG | Fine-stranded conductor | 0.2 … 16?mm2?/ 24 … 6?AWG |
Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches | Connection type 2 | Power supply 24 V; Connection points |
Mating direction 2 | 45° | Connection technology 2 | Push-in CAGE CLAMP? |
WAGO connector 2 | picoMAX?5.0 (WAGO 2092 Series) | Solid conductor 2 | 0.2 … 2.5?mm2?/ 24 … 12?AWG |
Fine-stranded conductor 2 | 0.2 … 2.5?mm2?/ 24 … 12?AWG | Strip length 2 | 9 … 10?mm?/ 0.35 … 0.39?inches |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Width | 100?mm?/ 3.937?inches |
Height | 85?mm?/ 3.346?inches | Depth from upper-edge of DIN-rail | 49?mm?/ 1.929?inches |
Mounting type | DIN-35 rail | Housing design | Mounting carrier |
Fire load | 2.324MJ | Weight | 140.4g |
Ambient temperature (operation) | -25 … +70 °C (without condensation) | Ambient temperature (storage) | -40 … +85 °C |
eCl@ss 10.0 | 27-14-11-52 | eCl@ss 9.0 | 27-14-11-52 |
ETIM 9.0 | EC002780 | ETIM 8.0 | EC002780 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143107662 | Customs tariff number | 8537109150 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
