Product Model

288-870/000-040

Manufacturer

wago

Category

Interface Modules

Product ID

38672

In Stock
Last updated: 2025/4/17
View Specifications

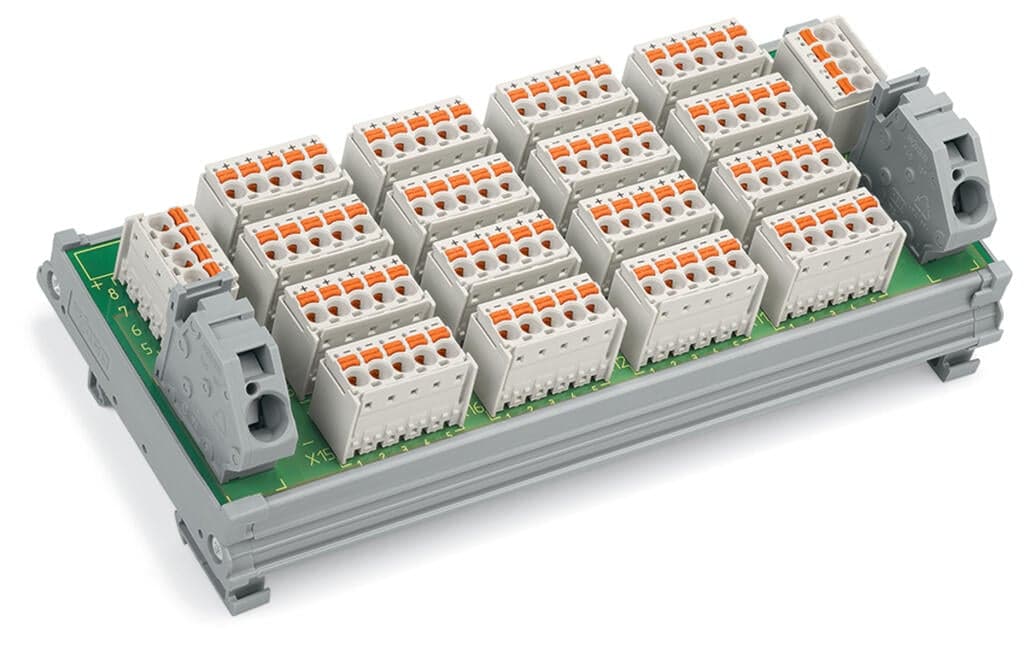

wago 288-870/000-040

Selling Points

  • 1Distributes power to 8 potentials with 6 connections each.
  • 2Features 42 ground clamping points for secure connections.
  • 3Designed for easy mounting on DIN-35 rail systems.
  • 4Utilizes reliable CAGE CLAMP spring connections.
  • 5Operates on a nominal operating voltage of 24Vdc.
Product Details
288-870/000-040
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Nominal operating voltage
DC?24?V
Current per connection (max.)
10A
Total current per potential (max.)
10A
Total current 0 V (max.)
76A
Total number of potentials
8
Clamping units
48
Connection type 1
Power supply 0 V
Mating direction
45°
Connection technology
CAGE CLAMP?
WAGO connector
WAGO 745 Series
Solid conductor
0.2 … 16?mm2?/ 24 … 6?AWG
Fine-stranded conductor
0.2 … 16?mm2?/ 24 … 6?AWG
Strip length
12 … 13?mm?/ 0.47 … 0.51?inches
Connection type 2
Power supply 24 V; Connection points
Mating direction 2
45°
Connection technology 2
Push-in CAGE CLAMP?
WAGO connector 2
picoMAX?5.0 (WAGO 2092 Series)
Solid conductor 2
0.2 … 2.5?mm2?/ 24 … 12?AWG
Fine-stranded conductor 2
0.2 … 2.5?mm2?/ 24 … 12?AWG
Strip length 2
9 … 10?mm?/ 0.35 … 0.39?inches
Note (conductor cross-section)
12 AWG: THHN, THWN
Width
154?mm?/ 6.063?inches
Height
85?mm?/ 3.346?inches
Depth from upper-edge of DIN-rail
49?mm?/ 1.929?inches
Mounting type
DIN-35 rail
Housing design
Mounting carrier
Fire load
3.738MJ
Weight
226.9g
Ambient temperature (operation)
-25 … +70 °C (without condensation)
Ambient temperature (storage)
-40 … +85 °C
eCl@ss 10.0
27-14-11-52
eCl@ss 9.0
27-14-11-52
ETIM 9.0
EC002780
ETIM 8.0
EC002780
ECCN
NO US CLASSIFICATION
PU (SPU)
1?pcs
Packaging type
box
Country of origin
DE
GTIN
4055143107679
Customs tariff number
8537109150
RoHS Compliance Status
Compliant,No Exemption

Specifications may be subject to change without notice
