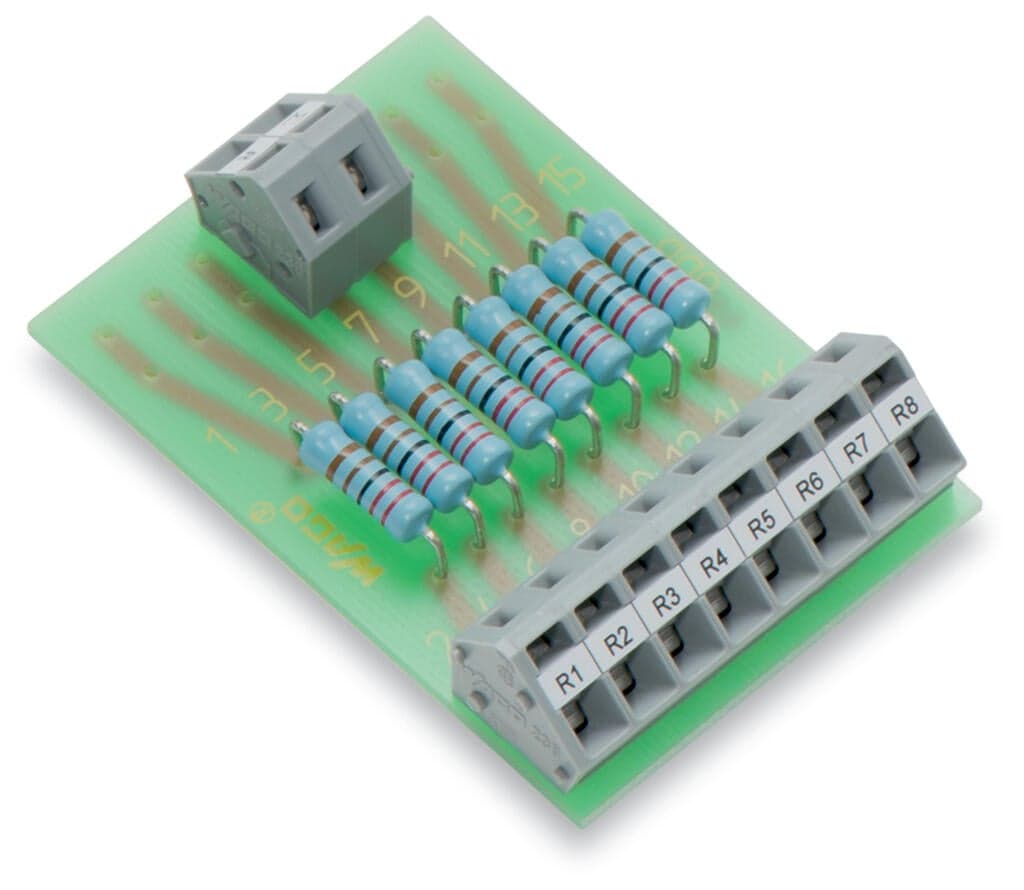

Product Model
289-113
Selling Points
- 1DIN-Rail Mounting: Mounts easily on DIN-rail via adapter for efficient installation.
- 2CAGE CLAMP Connections: Utilizes WAGO's CAGE CLAMP spring connections for secure and reliable connections.
- 3High Power Rating: Each resistor has a 1 watt power rating, suitable for various applications.
- 4Ambient Temperature Range: Operates in ambient temperatures from -25°C to +40°C.
- 5RoHS Compliant: Meets RoHS compliance standards, ensuring environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Max. admissible capacity of a single resistor – with all resistors loaded, the max. admissible power dissipation must be reduced. | Operating voltage | ≤?AC/DC?40?V |
Resistor | 2K2 | Tolerance | ±1% |
Resistor type/design | DIN 0414 | Temperature coefficient | 50 ppm (20 °C) |
Component rated dissipation (P70) | 1W | Rated voltage | 250V |
Rated surge voltage | 4kV | Connection technology | CAGE CLAMP? |
WAGO connector | WAGO 236 Series | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Width | 42.5?mm?/ 1.673?inches |
Height from the surface | 32?mm?/ 1.26?inches | Depth | 62.5?mm?/ 2.461?inches |
Mounting type | DIN-35 rail | Housing design | PCB |
Weight | 18.9g | Ambient temperature (operation) | -25 … +40 °C |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-39-03-13 |
eCl@ss 9.0 | 27-39-03-13 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454192785 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
