Product Model
289-128/006-000
Selling Points

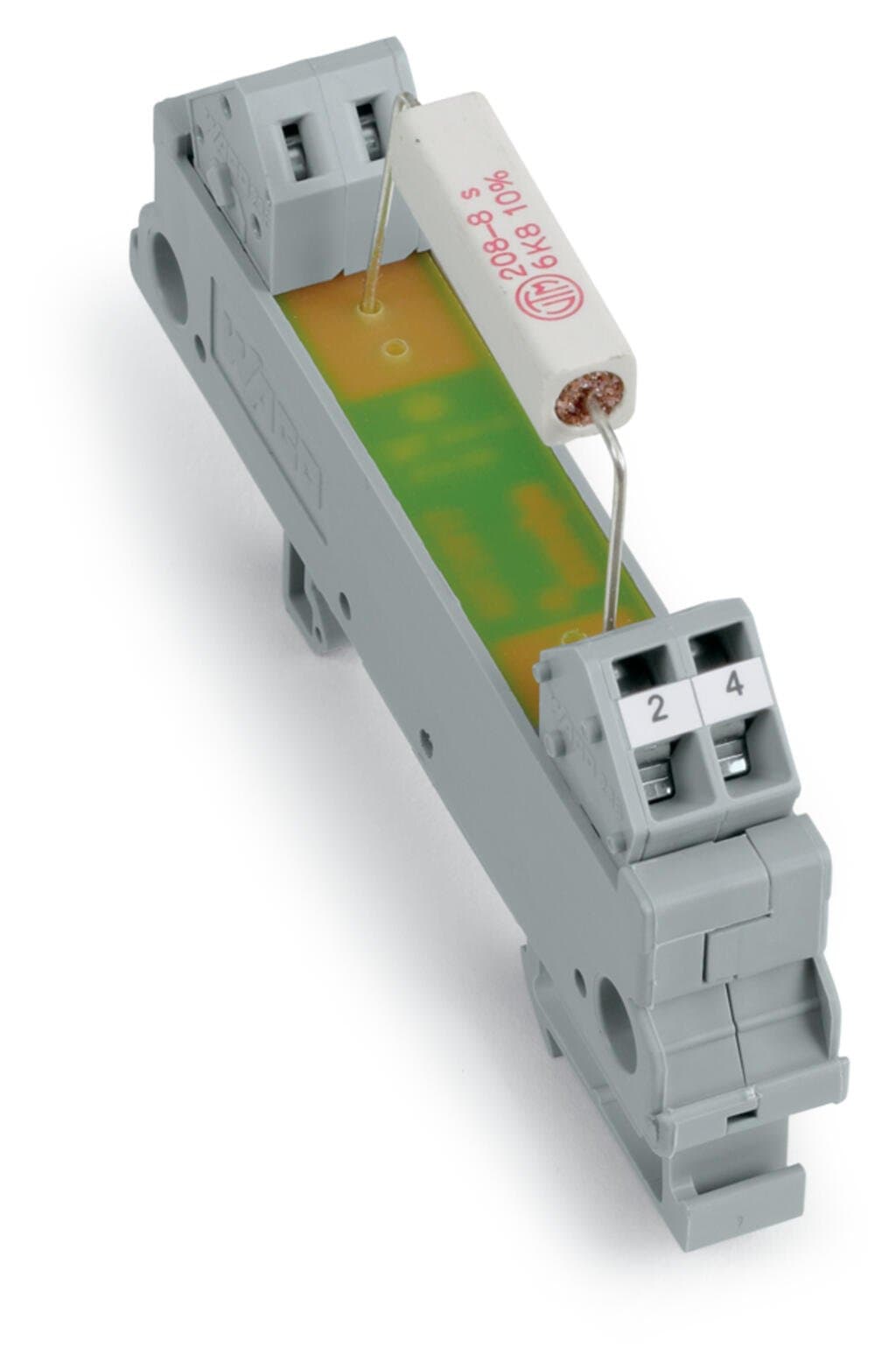

- 1High-quality component module with a 270R resistor.
- 25W power rating for robust performance.
- 3Compact design for easy integration.
- 4Reliable and precise electronics solution.
- 5Compatible with various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Depending on operating conditions, the components' temperature may exceed the limit temperature for accessible parts. | Note | Other resistors are available upon request! |
Resistor | 270R | Tolerance | ±10 % |
Temperature coefficient | 50 ppm (20 °C) | Component rated dissipation (P70) | 5W |
Protection type | IP00;Notice!Live parts can be easily touched! Protection against direct contact must be provided by the equipment manufacturer, e.g., using a WAGO 709 Series Cover (see “Accessories”) or a similar cover. The installation guidelines must be observed for each individual application. | Connection technology | CAGE CLAMP? |
WAGO connector | WAGO 236 Series | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Width | 13?mm?/ 0.512?inches |
Height | 85?mm?/ 3.346?inches | Depth from upper-edge of DIN-rail | 34?mm?/ 1.339?inches |
Mounting type | DIN-35 rail | Housing design | Mounting carrier |
Fire load | 0.515MJ | Weight | 19.2g |
Ambient temperature (operation) | -20 … +70 °C (Derating must be observed) | Ambient temperature (storage) | -40 … +70 °C |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-14-11-27 |
eCl@ss 9.0 | 27-14-11-49 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 18?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821253785 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
