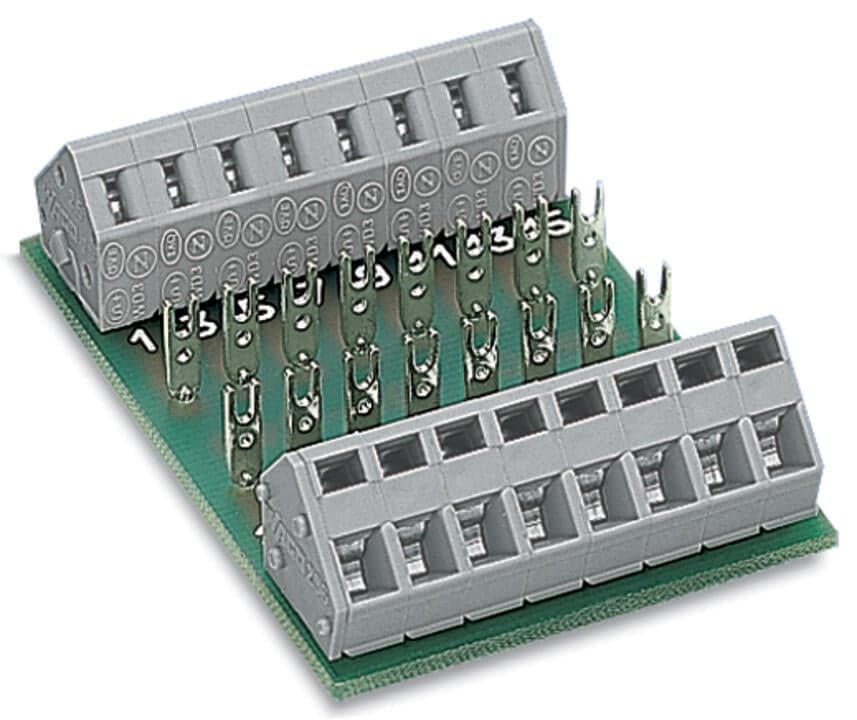

Product Model
289-131
Selling Points
- 1CAGE CLAMP Connection Technology: Secure and reliable connections for various industrial applications.
- 2DIN-Rail Mounting: Easily mount on DIN-rail using a rail adapter for convenient installation.
- 3Rated Current of 3A: Supports high current requirements in industrial settings.
- 4Operating Voltage up to 250V AC/DC: Compatible with a wide range of power sources.
- 5RoHS Compliant: Meets environmental regulations with no SVHC substances.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating voltage | ≤?AC/DC?250?V | Nominal current | 3A |
Specialty functions | With solder pin | Rated voltage | 250V |
Rated surge voltage | 1.5kV | Protection type | IP00;Notice!Live parts can be easily touched! Protection against direct contact must be provided by the equipment manufacturer, e.g., using a WAGO 709 Series Cover (see “Accessories”) or a similar cover. The installation guidelines must be observed for each individual application. |
Connection technology | CAGE CLAMP? | WAGO connector | WAGO 236 Series |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Note (conductor cross-section) | 12 AWG: THHN, THWN |
Width | 42.5?mm?/ 1.673?inches | Height from the surface | 32?mm?/ 1.26?inches |
Depth | 62.5?mm?/ 2.461?inches | Mounting type | DIN-35 rail |
Housing design | PCB | Fire load | 0.778MJ |
Weight | 24.4g | Ambient temperature (operation) | -25 … +40 °C |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-39-03-13 |
eCl@ss 9.0 | 27-39-03-13 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454193065 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
