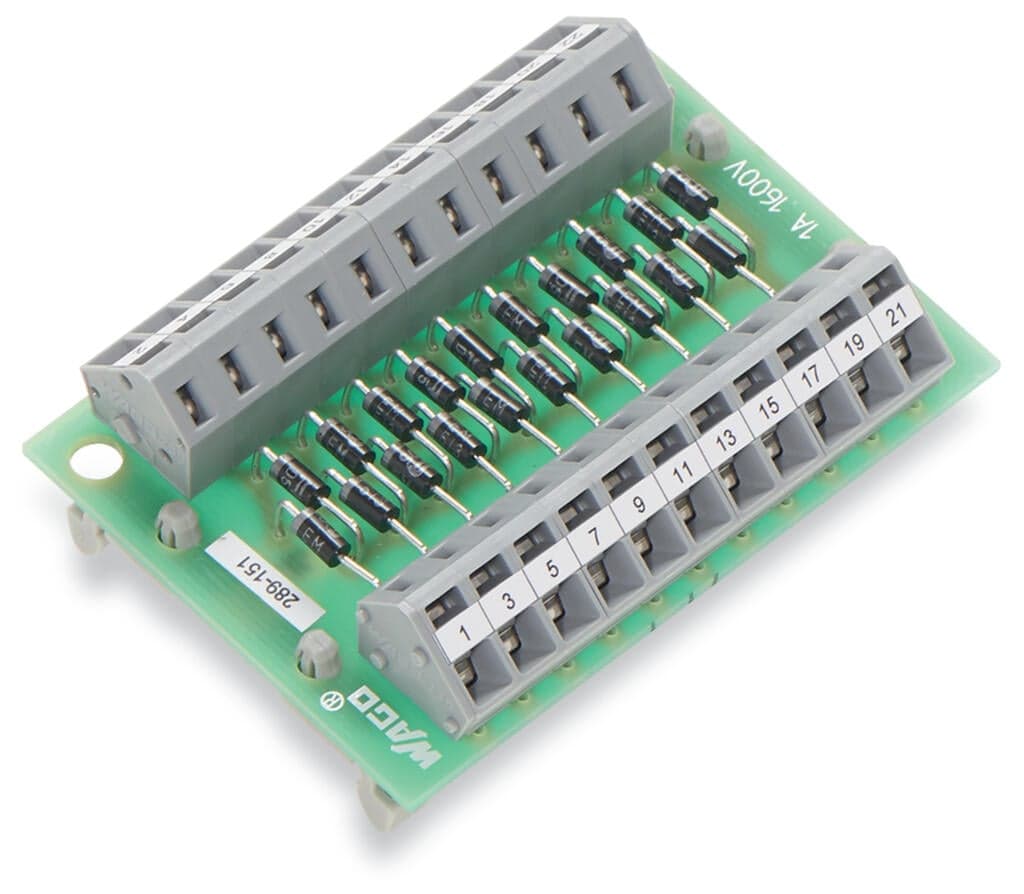

Product Model
289-151
Selling Points
- 1Compact design for easy installation and space-saving.
- 2High current rating of 2.50 mm² for robust electrical connections.
- 3Push-In Cage Clamp connections for secure and fast assembly.
- 4Suitable for various industrial applications requiring reliable diode modules.
- 5DIN rail mounting for versatile and efficient system integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Max. permissible forward current per the manufacturer’s data sheet. With all diodes loaded, the continuous current must be reduced to 0.45 A. | Operating voltage | ≤?AC/DC?250?V |
Peak reverse voltage | 1600V | Rectified current for each diode (resistive) | 1A |
Type of diode | EM 513 | Number/type of diode/LED | 20 diodes |
Forward voltage per diode | 1.1V | Forward current per diode (resistive) | 1A |
Leakage current | 50μA | Rated voltage | 250V |
Rated surge voltage | 4kV | Pollution degree | 2 |
Protection type | IP00;Notice!Live parts can be easily touched! Protection against direct contact must be provided by the equipment manufacturer, e.g., using a WAGO 709 Series Cover (see “Accessories”) or a similar cover. The installation guidelines must be observed for each individual application. | Connection technology | CAGE CLAMP? |
WAGO connector | WAGO 236 Series | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Width | 69?mm?/ 2.717?inches |
Height | 50?mm?/ 1.969?inches | Depth from upper-edge of DIN-rail | 21?mm?/ 0.827?inches |
Mounting type | DIN-35 rail | Housing design | PCB with mounting feet |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V2 |
Fire load | 0.056MJ | Weight | 35.5g |
Ambient temperature (operation) | -25 … +40 °C | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-37-92-16 |
ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?(1)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454380960 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Bulgaria) | 9d6b0648-24e2-47a3-98c7-8ae0ce95627c | SCIP notification number (Czech Republic) | 38fb7a70-155d-47f3-a266-5b93fc5bcac6 |
Specifications may be subject to change without notice
