Product Model

289-172

Manufacturer

wago

Category

Interface Modules

Product ID

40103

In Stock
Last updated: 2025/4/17
View Specifications

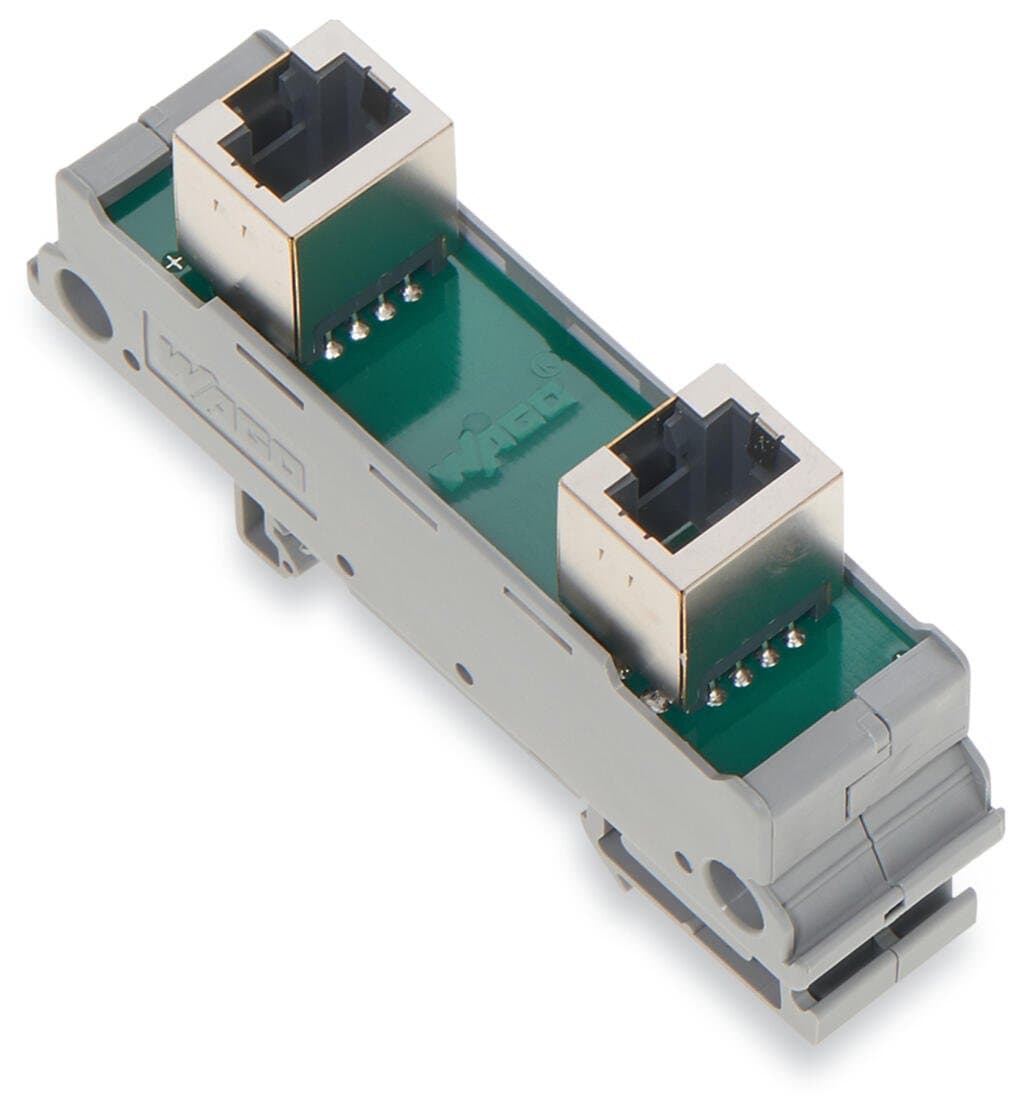

wago 289-172

Selling Points

  • 1≥ 500 MΩ for reliable signal processing.
  • 2Supports fast and efficient data transfer.
  • 3Easy installation on standard DIN rails.
  • 4Dual RJ-45 connectors for versatile connectivity.
  • 585 mm depth and 20.5 mm width for space-efficient installations.
Product Details
289-172
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Operating voltage
≤30?VAC;?≤42?VDC
Nominal current
1.5A
Insulation resistance
≥?500?MΩ
Dielectric strength (contact/contact) (AC, 1 min)
1kV<sub>rms</sub>
Mating cycles
500
Transmission length (max.)
100m
Connection cable
Cat. 5 (min.)
Width
20.5?mm?/ 0.807?inches
Height
85?mm?/ 3.346?inches
Depth from upper-edge of DIN-rail
38.5?mm?/ 1.516?inches
Mounting type
DIN-35 rail
Housing design
Mounting carrier
Fire load
0.772MJ
Weight
28.3g
Ambient temperature (operation)
-40 … +85 °C
Ambient temperature UL (operation at U<sub>N</sub>)
-40 … +70 °C
Ambient temperature (storage)
-40 … +85 °C
Relative humidity
85% (non-condensing)
Product Group
6 (INTERFACE ELECTRONIC)
eCl@ss 10.0
19-17-90-01
eCl@ss 9.0
19-17-90-01
ETIM 9.0
EC001121
ETIM 8.0
EC001121
ECCN
NO US CLASSIFICATION
PU (SPU)
15?(1)?pcs
Packaging type
box
Country of origin
DE
GTIN
4045454317478
Customs tariff number
8536904000
RoHS Compliance Status
Compliant,No Exemption
Pluggable connector
RJ-45 (shielded)
Pole number 1
8
Connection type 1
System
Connector 2
RJ-45 (shielded)
Pole number (2)
8
Connection type 2
System

Specifications may be subject to change without notice
