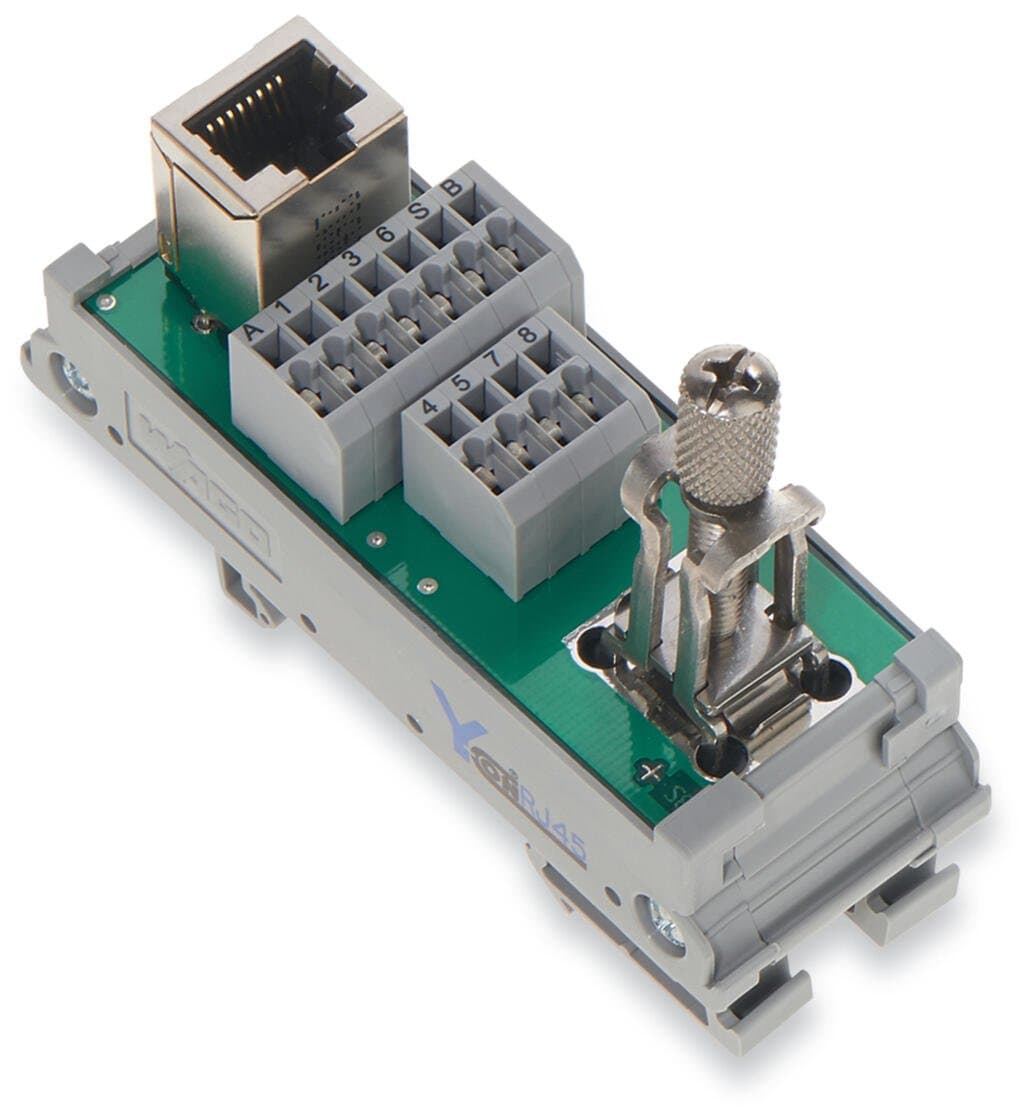

Product Model
289-179
Selling Points
- 1RJ-45 Connectivity: Connects to Ethernet networks with standard RJ-45 connectors.
- 2Power Jumper Contacts: Includes power jumper contacts for easy integration into your system.
- 3Cat. 5 Compatibility: Supports Cat. 5 cable for high-speed data transmission.
- 4DIN-35 Rail Mounting: Easily mounts on DIN-35 rail systems for compact installations.
- 5High Insulation Resistance: Ensures reliable operation with insulation resistance ≥ 500 MΩ.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating voltage | ≤35?VAC;?≤50?VDC | Nominal current | 2.1A |
Insulation resistance | ≥?500?MΩ | Specialty functions | With power jumper contacts |
Dielectric strength (contact/contact) (AC, 1 min) | 1kV<sub>rms</sub> | Mating cycles | 1,000 |
Transmission length (max.) | 100m | Connection cable | Cat. 5 (min.) |
WAGO shield clamping saddle | 11 mm wide; cable diameter up to 8 mm | Width | 30?mm?/ 1.181?inches |
Height | 85?mm?/ 3.346?inches | Depth from upper-edge of DIN-rail | 67?mm?/ 2.638?inches |
Mounting type | DIN-35 rail | Housing design | Mounting carrier |
Fire load | 0.823MJ | Weight | 52.5g |
Ambient temperature (operation) | -40 … +85 °C (Actuation: ?35 … +85 °C) | Ambient temperature (storage) | -40 … +85 °C |
Relative humidity | 85% (non-condensing) | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 19-17-90-01 | eCl@ss 9.0 | 19-17-90-01 |
ETIM 9.0 | EC001121 | ETIM 8.0 | EC001121 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?(1)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454326197 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Pluggable connector | RJ-45 shielded; with two additional power jumper contacts |
Pole number 1 | 10 | Connection type 1 | System |
Design 2 | PCB terminal blocks (double-row) | Pole number (2) | 11 |
Connection type 2 | System | Connection technology 2 | CAGE CLAMP? |
WAGO connector 2 | WAGO 739 Series | Solid conductor 2 | 0.08 … 1.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor 2 | 0.08 … 1.5?mm2?/ 28 … 14?AWG | Strip length 2 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Specifications may be subject to change without notice
