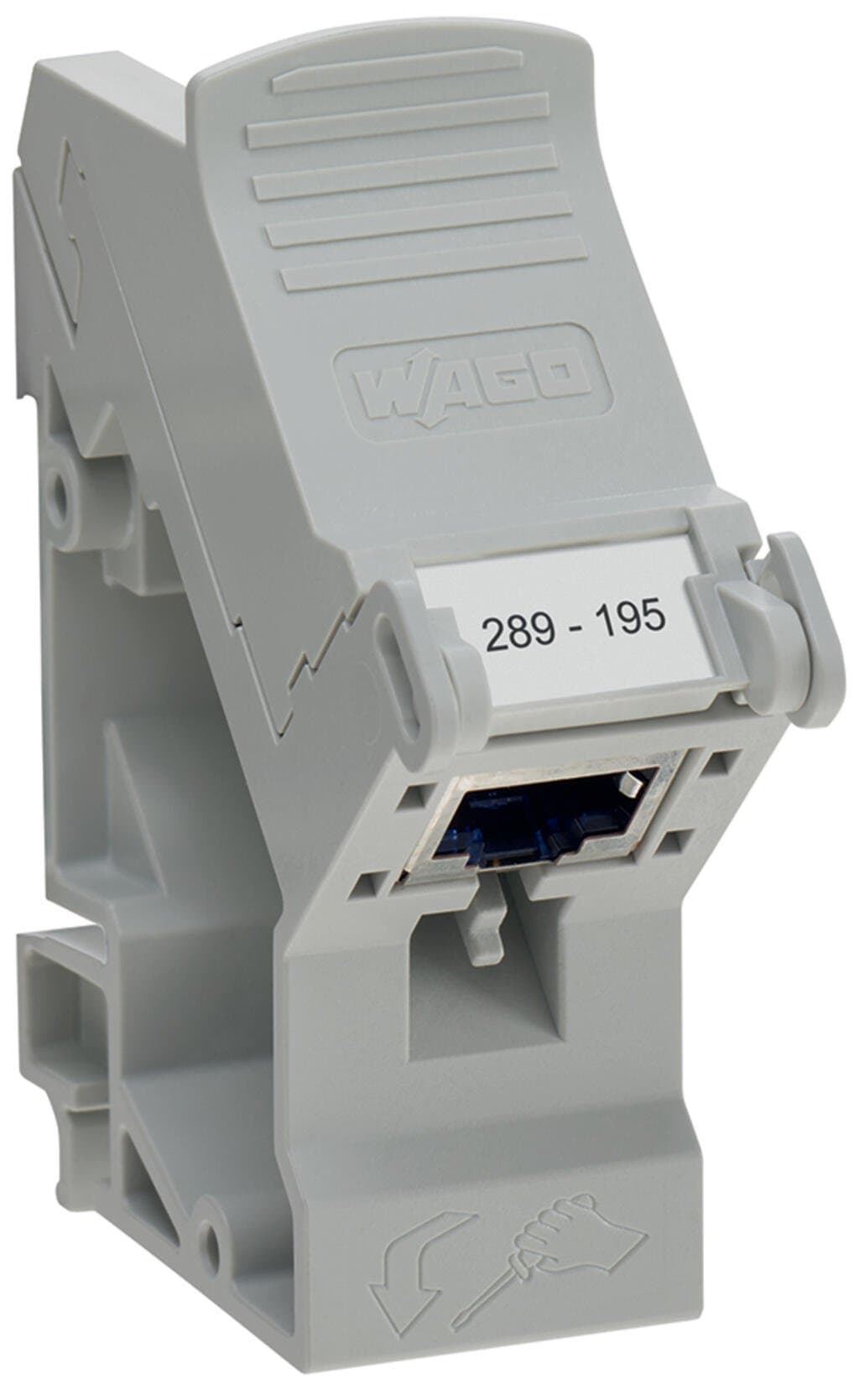

Product Model
289-195
Selling Points
- 1Ensures secure and reliable data transfer.
- 2Easy installation on standard DIN rails.
- 3Supports high-speed Ethernet connections up to Cat. 6.
- 4Provides protection against solid objects larger than 12.5 mm in diameter.
- 5Durable design for repeated use in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Specialty functions | with shield connection | Protection type | IP20 |
Mating cycles | 750 | Connection cable | Cat. 6 (min.) |
Width | 26.8?mm?/ 1.056?inches | Height | 81.4?mm?/ 3.205?inches |
Depth from upper-edge of DIN-rail | 64.4?mm?/ 2.535?inches | Mounting type | DIN-35 rail |
Housing design | Mounting carrier | Contact material (connector) | Au over Ni |
Weight | 51g | Ambient temperature (operation) | -10 … +60 °C |
Ambient temperature (storage) | -40 … +70 °C | Relative humidity | 95% (non-condensing) |
eCl@ss 10.0 | 27-14-11-52 | eCl@ss 9.0 | 27-14-11-52 |
ETIM 9.0 | EC002780 | ETIM 8.0 | EC002780 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4055143292986 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Pluggable connector | RJ-45 (shielded) |
Pole number 1 | 8 | Connection type 1 | System |
Pole number (2) | 8 | Connection type 2 | System |
Connection technology 2 | IDC connection | Solid conductor 2 | 0.2 … 0.32?mm2?/ 24 … 22?AWG |
Stranded conductor 2 | 0.2 … 0.32?mm2?/ 26/7 … 22/7?AWG | Strip length 2 | 0.8 … 1.6?mm?/ 0.03 … 0.06?inches |
Specifications may be subject to change without notice
