Product Model
289-202
Selling Points

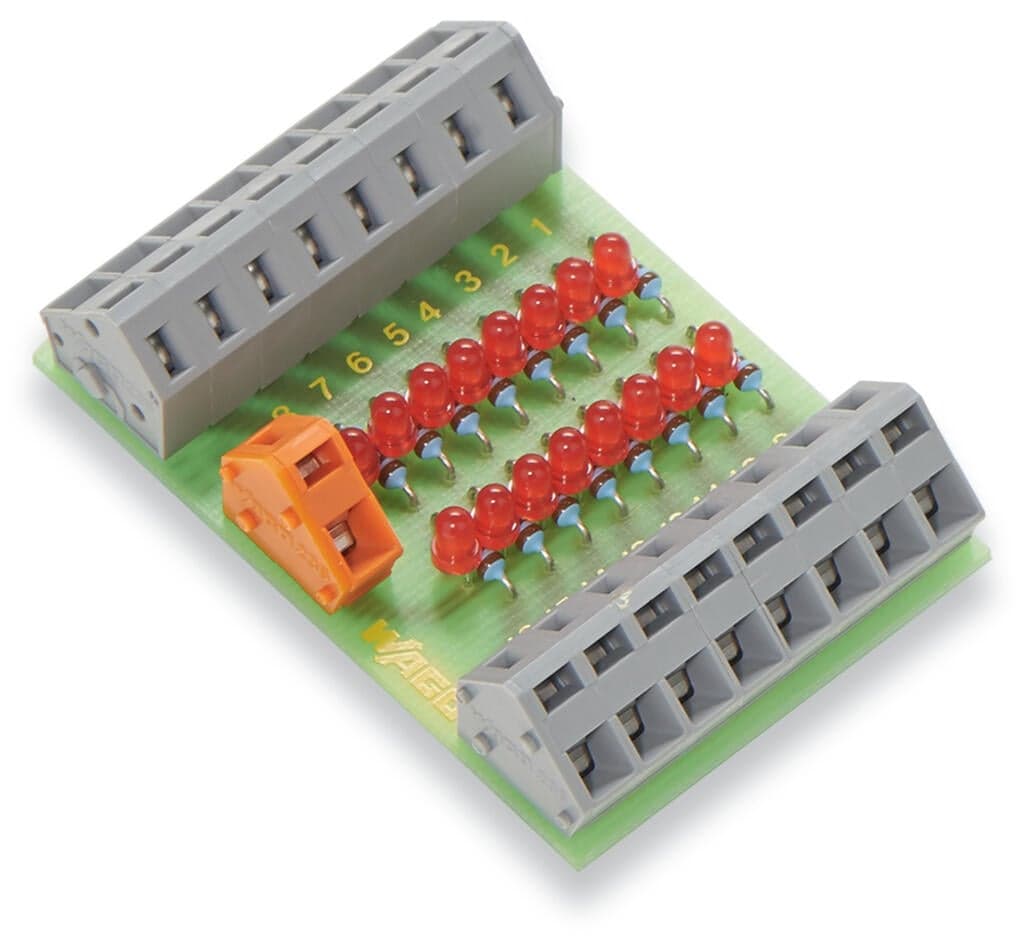

- 116 Red LEDs with Common Anode: Features 16 high-intensity red LEDs with a common anode for efficient lighting.
- 2DC 24V Operation: Designed to operate at a nominal voltage of DC 24V, with an operating range of 20-26V.
- 3Compact Design: Measures 47mm in width, 31.5mm in height from the DIN rail, and 65.5mm in depth.
- 4DIN Rail Mounting: Easy installation on DIN rail using a carrier rail adapter for secure mounting.
- 5Rohs Compliant: Meets RoHS compliance standards, ensuring environmental safety and sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal operating voltage | DC?24?V | Operating voltage | 20 … 26?VDC |
Current consumption at nominal supply voltage | ≤?5.6?mA?(per LED) | Number/type of diode/LED | 16 LED (red); with common anode |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Width | 47?mm?/ 1.85?inches | Height from the surface | 31.5?mm?/ 1.24?inches |
Depth | 65.5?mm?/ 2.579?inches | Mounting type | DIN-35 rail |
Housing design | PCB | Fire load | 0.249MJ |
Weight | 26.2g | Ambient temperature (operation) | -25 … +40 °C |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-39-03-13 |
eCl@ss 9.0 | 27-39-03-13 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454495558 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
