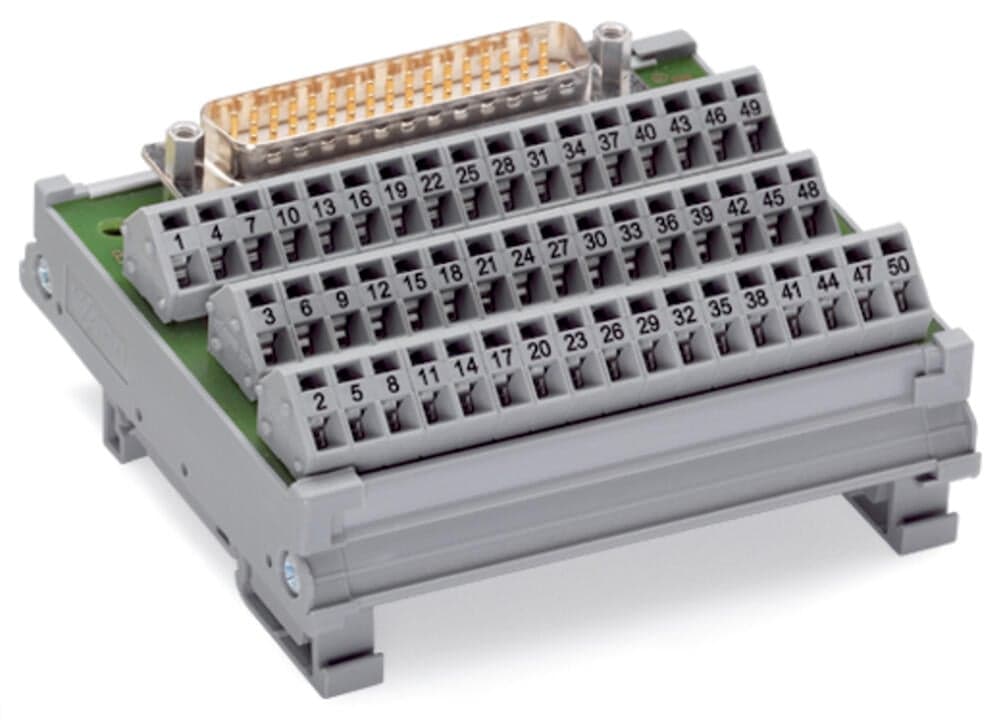

Product Model
289-544
Selling Points
- 1Robust Connectivity: Equipped with a 50-pin D-sub male connector and IDC mating connectors for reliable system connections.
- 2Versatile Mounting: Designed for DIN-35 rail mounting with a width of 94mm, ensuring easy integration into various industrial settings.
- 3High Current Capacity: Supports a rated current of 2A, making it suitable for demanding applications.
- 4Temperature Range: Operates within an ambient temperature range of -20°C to +50°C, ensuring stable performance in diverse environments.
- 5Flexible Field Connections: Accommodates cables from 0.08 to 2.5mm² using a 3-row spring CAGE CLAMP for flexible field connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating voltage | ≤?AC/DC?125?V | Nominal current | 2A |
Contact resistance (max.) | 30?mΩ | Rated voltage | 125V |
Pollution degree | 2 | Protection type | IP00;Notice!Live parts can be easily touched! Protection against direct contact must be provided by the equipment manufacturer, e.g., using a WAGO 709 Series Cover (see “Accessories”) or a similar cover. The installation guidelines must be observed for each individual application. |
Dielectric strength (channel/channel) (AC, 1 min.) | 0.75kV<sub>rms</sub> | Insulation type | Functional insulation |
Performance level | 2 / 200 mating cycles | Strain relief | UNC 4-40 stud bolt |
Width | 94?mm?/ 3.701?inches | Height | 85?mm?/ 3.346?inches |
Depth from upper-edge of DIN-rail | 34?mm?/ 1.339?inches | Mounting type | DIN-35 rail |
Housing design | Mounting carrier | Contact material (connector) | Au over Ni |
Fire load | 1.318MJ | Weight | 126.8g |
Ambient temperature (operation) | -20 … +50 °C | Ambient temperature (storage) | -40 … +70 °C |
Relative humidity | 85% (non-condensing) | Standards/specifications | EN 61010-2-201 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-14-11-52 |
eCl@ss 9.0 | 27-14-11-52 | ETIM 9.0 | EC002780 |
ETIM 8.0 | EC002780 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 3?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454452216 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 8bebd6e9-0e05-4fdf-811c-c5dba1336061 |
SCIP notification number (Belgium) | 1d5364e5-40a2-42f1-9a8c-0a701b7351f2 | SCIP notification number (Bulgaria) | 9862e7f8-588b-4846-b592-95fda5f5358b |
SCIP notification number (Czech Republic) | 5e3085b6-bbc1-4eb0-8b33-6042c5593337 | SCIP notification number (Denmark) | 657cde4d-0221-47e6-b60f-949a5a95c85d |
SCIP notification number (Finland) | 5b7ecd8d-9faf-45a2-ad55-a0516bdbc4f5 | SCIP notification number (France) | 390fd549-2e39-4b57-a047-e1dd392ff083 |
SCIP notification number (Germany) | ba33c737-df4e-4840-a3ea-7137eef4b5a9 | SCIP notification number (Hungary) | c873c66a-91f6-4e54-ace1-fcb04fd21cb2 |
SCIP notification number (Italy) | 962eb620-d19a-4cb7-a302-229d921905a0 | SCIP notification number (Netherlands) | d5a3c85f-2626-403c-aa04-35017d70a01d |
SCIP notification number (Poland) | 55f60432-5532-4bf8-a386-9ff01ec9cbb3 | SCIP notification number (Romania) | 62c70e42-5127-4358-8741-e26fe3aa7535 |
SCIP notification number (Sweden) | dac45454-af16-4194-940a-05dec65e861f | Pluggable connector | D-subminiature male connector |
Pole number 1 | 50 | Connection type 1 | System |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Mating direction | vertical |
Design 2 | PCB terminal blocks (triple-row) | Pole number (2) | 50 |
Connection type 2 | Field | Connection technology 2 | CAGE CLAMP? |
WAGO connector 2 | WAGO 236 Series | Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length 2 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Specifications may be subject to change without notice
