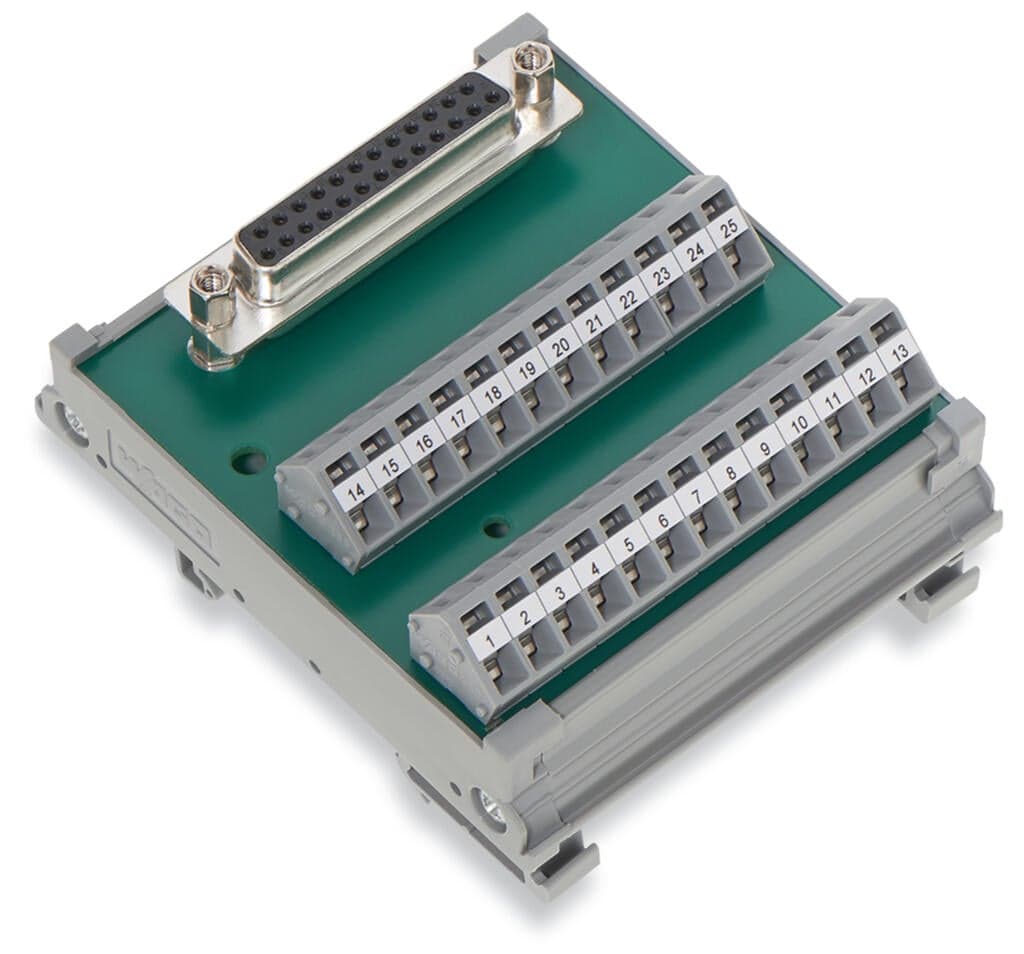

Product Model
289-557
Selling Points
- 1High-Reliability Design: Built to withstand 200 mating cycles, ensuring long-lasting connectivity.
- 2Versatile Connectivity: Compatible with solder contact and DIN-35 rail mounting for easy integration.
- 3Industrial-Grade Performance: Operating voltage up to 125 V AC/DC, suitable for various industrial applications.
- 4Compact Design: Dimensions include a mounting socket (85x34 mm), perfect for space-constrained environments.
- 5Compliance and Safety: Meets EN 61010-2-201 standards and has an IP20 protection type for secure operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating voltage | ≤?AC/DC?125?V | Nominal current | 2A |
Contact resistance (max.) | 30?mΩ | Rated voltage | 125V |
Rated surge voltage | 0.8kV | Pollution degree | 2 |
Protection type | IP20 | Insulation type | Basic insulation |
Performance level | 2 / 200 mating cycles | Strain relief | UNC 4-40 stud bolt |
Width | 72?mm?/ 2.835?inches | Height | 85?mm?/ 3.346?inches |
Depth from upper-edge of DIN-rail | 34?mm?/ 1.339?inches | Mounting type | DIN-35 rail |
Housing design | Mounting carrier | Contact material (connector) | Au over Ni |
Fire load | 1.142MJ | Weight | 81.5g |
Ambient temperature (operation) | -20 … +50 °C | Ambient temperature (storage) | -40 … +70 °C |
Relative humidity | 85% (non-condensing) | Standards/specifications | EN 61010-2-201 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-14-11-52 |
eCl@ss 9.0 | 27-14-11-52 | ETIM 9.0 | EC002780 |
ETIM 8.0 | EC002780 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 4?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454432683 |
Customs tariff number | 85366990990 | RoHS Compliance Status | Compliant,No Exemption |
Pluggable connector | D-subminiature female connector | Pole number 1 | 25 |
Connection type 1 | System | Note (conductor cross-section) | 12 AWG: THHN, THWN |
Mating direction | vertical | Design 2 | PCB terminal blocks (double-row) |
Pole number (2) | 25 | Connection type 2 | Field |
Connection technology 2 | CAGE CLAMP? | WAGO connector 2 | WAGO 236 Series |
Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Strip length 2 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Specifications may be subject to change without notice
