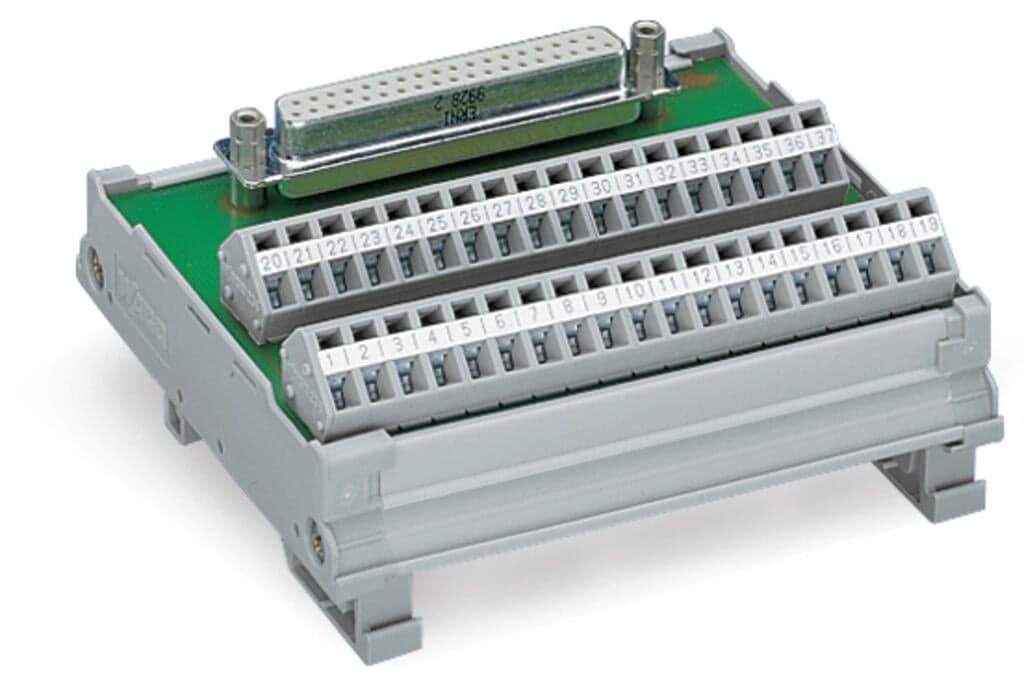

Product Model
289-558
Selling Points
- 137-Pole D-Sub Female Connector: Connects with solder terminals for reliable mating.
- 2Vertical Mounting: Easy installation on PCBs with double-row terminal blocks.
- 3High Operating Current: Supports up to 2 A, ideal for demanding applications.
- 4Wide Operating Voltage: Compatible with 125 V AC/DC, ensuring versatility in various environments.
- 5Gold-Plated Contacts: Ensures low contact resistance (10 mohm) for efficient signal transfer.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating voltage | ≤?AC/DC?125?V | Nominal current | 2A |
Contact resistance (max.) | 30?mΩ | Rated voltage | 125V |
Rated surge voltage | 0.8kV | Pollution degree | 2 |
Protection type | IP20 | Insulation type | Basic insulation |
Performance level | 2 / 200 mating cycles | Strain relief | UNC 4-40 stud bolt |
Width | 102?mm?/ 4.016?inches | Height | 85?mm?/ 3.346?inches |
Depth from upper-edge of DIN-rail | 34?mm?/ 1.339?inches | Mounting type | DIN-35 rail |
Housing design | Mounting carrier | Contact material (connector) | Au over Ni |
Fire load | 1.378MJ | Weight | 113g |
Ambient temperature (operation) | -20 … +50 °C | Ambient temperature (storage) | -40 … +70 °C |
Relative humidity | 85% (non-condensing) | Standards/specifications | EN 61010-2-201 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-14-11-52 |
eCl@ss 9.0 | 27-14-11-52 | ETIM 9.0 | EC002780 |
ETIM 8.0 | EC002780 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 3?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454501303 |
Customs tariff number | 85366990990 | RoHS Compliance Status | Compliant,No Exemption |
Pluggable connector | D-subminiature female connector | Pole number 1 | 37 |
Connection type 1 | System | Note (conductor cross-section) | 12 AWG: THHN, THWN |
Mating direction | vertical | Design 2 | PCB terminal blocks (double-row) |
Pole number (2) | 37 | Connection type 2 | Field |
Connection technology 2 | CAGE CLAMP? | WAGO connector 2 | WAGO 236 Series |
Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Strip length 2 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Specifications may be subject to change without notice
