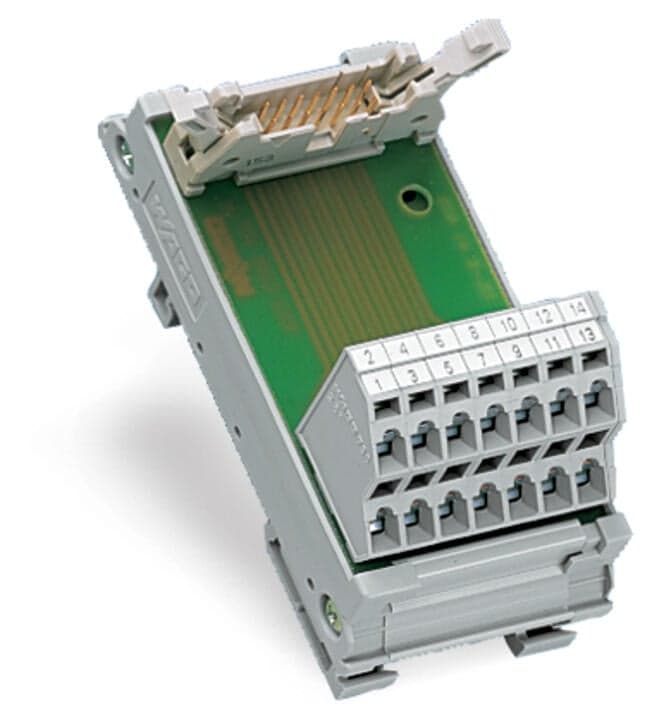

Product Model
289-611
Selling Points
- 1DIN 41651 Compliance: Meets international standards for pluggable connectors.
- 210-Pole Configuration: Supports multiple connections with a single module.
- 3Triple-Deck PCB Terminal Blocks: Provides ample space for wiring and connections.
- 4Operating Voltage Range: Compatible with AC 100 V and DC 125 V.
- 5High Performance Level: Withstands up to 50 mating cycles, ensuring long-term reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating voltage | ≤?AC/DC?125?V | Nominal current | 1A |
Rated voltage | 125V | Rated surge voltage | 0.8kV |
Pollution degree | 2 | Protection type | IP20 |
Insulation type | Basic insulation | Performance level | 3 / 50 mating cycles |
Width | 35?mm?/ 1.378?inches | Height | 85?mm?/ 3.346?inches |
Depth from upper-edge of DIN-rail | 48?mm?/ 1.89?inches | Mounting type | DIN-35 rail |
Housing design | Mounting carrier | Contact material (connector) | Au over Ni |
Fire load | 0.859MJ | Weight | 46.9g |
Ambient temperature (operation) | -20 … +55 °C | Ambient temperature (storage) | -40 … +70 °C |
Relative humidity | 85% (non-condensing) | Standards/specifications | EN 61010-2-201 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-14-11-52 |
eCl@ss 9.0 | 27-14-11-52 | ETIM 9.0 | EC002780 |
ETIM 8.0 | EC002780 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454471200 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Pluggable connector | DIN 41651 connector; male connector | Pole number 1 | 10 |
Connection type 1 | System | Note (conductor cross-section) | 12 AWG: THHN, THWN |
Mating direction | vertical | Design 2 | PCB terminal blocks (double-deck) |
Pole number (2) | 10 | Connection type 2 | Field |
Connection technology 2 | CAGE CLAMP? | WAGO connector 2 | WAGO 736 Series |
Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Strip length 2 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Specifications may be subject to change without notice
