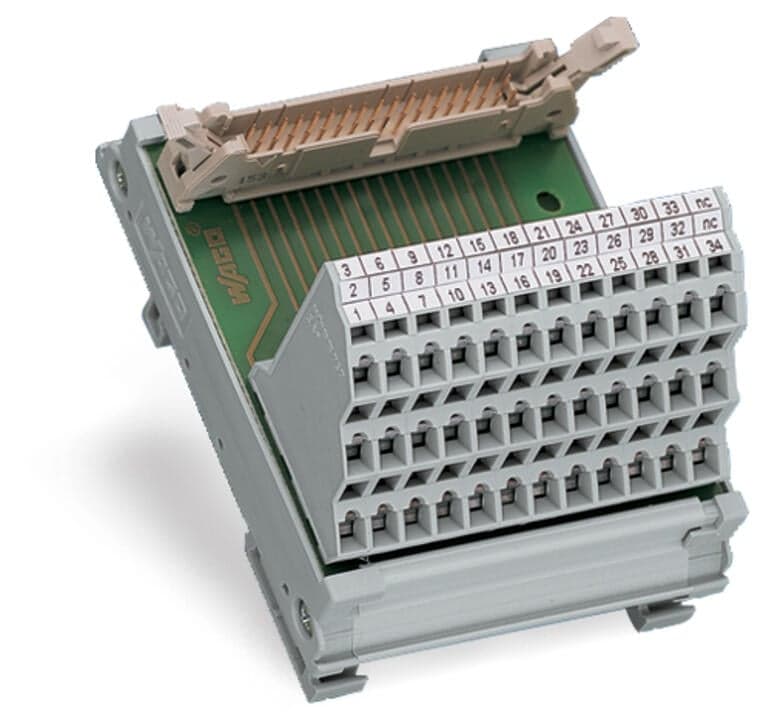

Product Model
289-614
Selling Points
- 120-Pole Triple-Deck PCB Terminal Blocks: Designed for efficient and secure connections.
- 2DIN 41651 Compliant: Ensures compatibility with standard industrial connectors.
- 3IP20 Protection: Provides reliable protection against dust and water.
- 4Operating Voltage: ≤ AC 100 V; ≤ DC 125 V: Suitable for a wide range of industrial applications.
- 5Mounting Type: DIN-35 Rail: Easy installation on standard DIN rails.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating voltage | ≤?AC/DC?125?V | Nominal current | 1A |
Rated voltage | 125V | Pollution degree | 2 |
Protection type | IP00;Notice!Live parts can be easily touched! Protection against direct contact must be provided by the equipment manufacturer, e.g., using a WAGO 709 Series Cover (see “Accessories”) or a similar cover. The installation guidelines must be observed for each individual application. | Dielectric strength (channel/channel) (AC, 1 min.) | 1.3kV<sub>rms</sub> |
Insulation type | Functional insulation | Performance level | 3 / 50 mating cycles |
Width | 47?mm?/ 1.85?inches | Height | 85?mm?/ 3.346?inches |
Depth from upper-edge of DIN-rail | 62?mm?/ 2.441?inches | Mounting type | DIN-35 rail |
Housing design | Mounting carrier | Contact material (connector) | Au over Ni |
Fire load | 0.955MJ | Weight | 37.8g |
Ambient temperature (operation) | -20 … +55 °C | Ambient temperature (storage) | -40 … +70 °C |
Relative humidity | 85% (non-condensing) | Standards/specifications | EN 61010-2-201 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-14-11-52 |
eCl@ss 9.0 | 27-14-11-52 | ETIM 9.0 | EC002780 |
ETIM 8.0 | EC002780 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 5?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454011543 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Siemens ET200SP | 6ES7 134-6FF00-0AA1 | Pluggable connector | DIN 41651 connector; male connector |
Pole number 1 | 20 | Connection type 1 | System |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Mating direction | vertical |
Design 2 | PCB terminal blocks (triple-deck) | Pole number (2) | 20 |
Connection type 2 | Field | Connection technology 2 | CAGE CLAMP? |
WAGO connector 2 | WAGO 737 Series | Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length 2 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Specifications may be subject to change without notice
