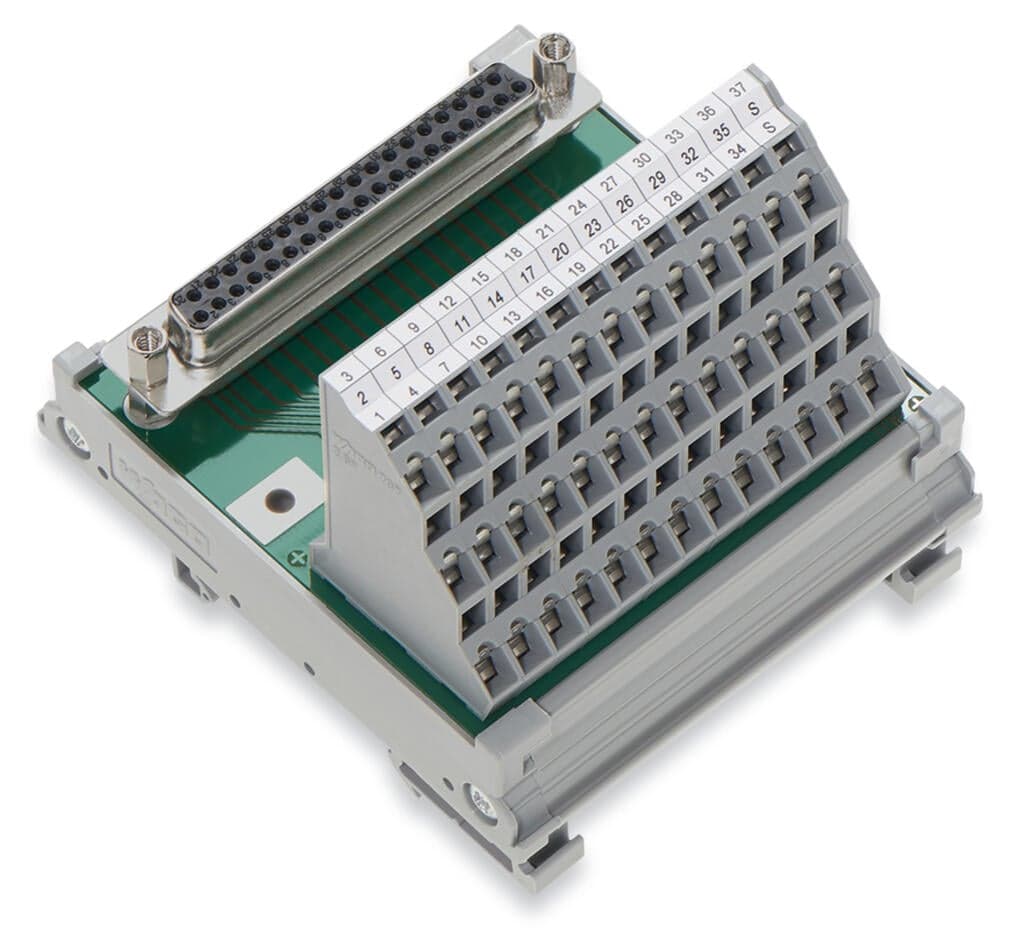

Product Model
289-623
Selling Points
- 1Ensures reliable and secure signal transmission.
- 2Ideal for system connections with solder contact.
- 3Accommodates cables from 0.08 to 2.5mm² for field connections.
- 4Easy installation on standard DIN rails.
- 5Provides robust protection against dust and water.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating voltage | ≤?AC/DC?125?V | Nominal current | 2A |
Contact resistance (max.) | 30?mΩ | Specialty functions | with shield connection |
Rated voltage | 125V | Rated surge voltage | 0.8kV |
Pollution degree | 2 | Protection type | IP00;Notice!Live parts can be easily touched! Protection against direct contact must be provided by the equipment manufacturer, e.g., using a WAGO 709 Series Cover (see “Accessories”) or a similar cover. The installation guidelines must be observed for each individual application. |
Dielectric strength (channel/channel) (AC, 1 min.) | 1.3kV<sub>rms</sub> | Insulation type | Functional insulation |
Performance level | 2 / 200 mating cycles | Strain relief | UNC 4-40 stud bolt |
Width | 56?mm?/ 2.205?inches | Height | 85?mm?/ 3.346?inches |
Depth from upper-edge of DIN-rail | 62?mm?/ 2.441?inches | Mounting type | DIN-35 rail |
Housing design | Mounting carrier | Contact material (connector) | Au over Ni |
Fire load | 1.032MJ | Weight | 94.5g |
Ambient temperature (operation) | -20 … +50 °C | Ambient temperature (storage) | -40 … +70 °C |
Relative humidity | 85% (non-condensing) | Standards/specifications | EN 61010-2-201 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-14-11-52 |
eCl@ss 9.0 | 27-14-11-52 | ETIM 9.0 | EC002780 |
ETIM 8.0 | EC002780 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 4?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454417192 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Pluggable connector | D-subminiature female connector | Pole number 1 | 25 |
Connection type 1 | System | Note (conductor cross-section) | 12 AWG: THHN, THWN |
Mating direction | vertical | Design 2 | PCB terminal blocks (triple-deck) |
Pole number (2) | 27 | Connection type 2 | Field |
Connection technology 2 | CAGE CLAMP? | WAGO connector 2 | WAGO 737 Series |
Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Strip length 2 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Specifications may be subject to change without notice
