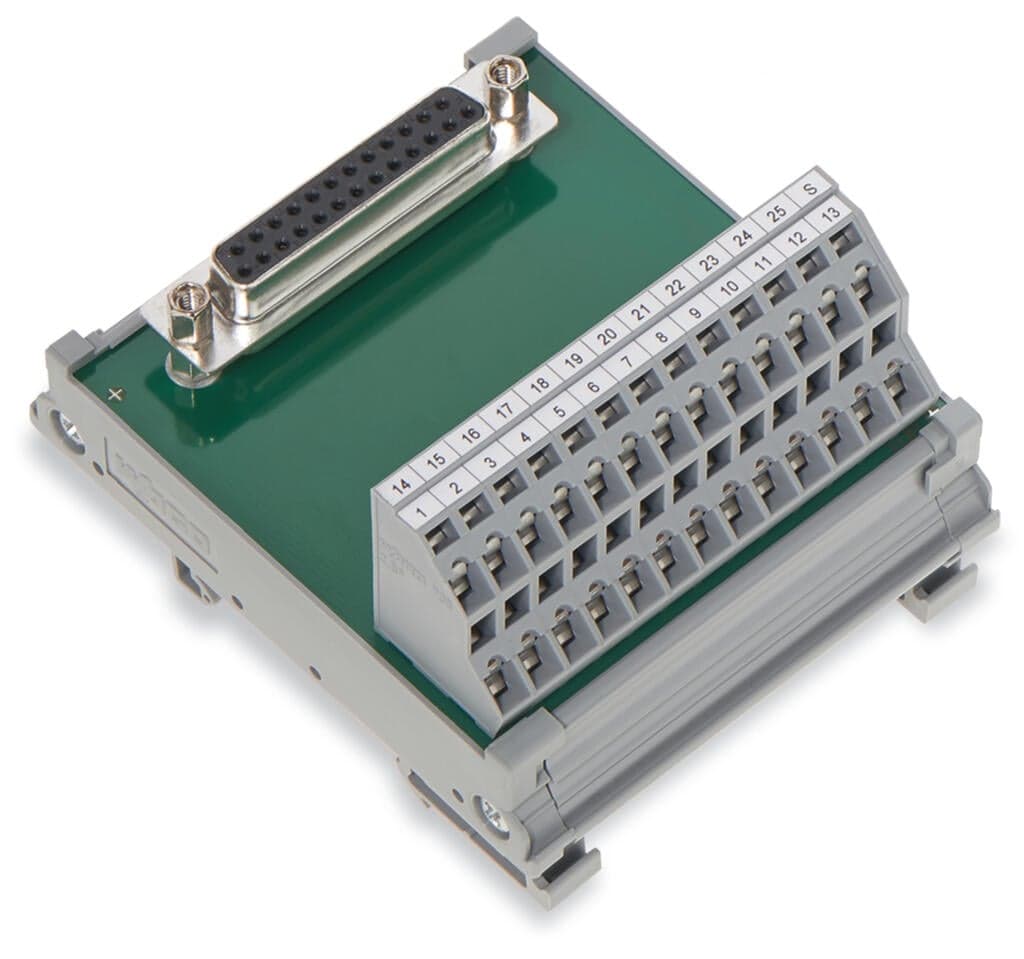

Product Model
289-652
Selling Points
- 1DIN-35 Rail Mounting: Easily integrate with standard DIN-35 rail systems.
- 2AC/DC 125V Operating Voltage: Compatible with both AC and DC voltages up to 125V.
- 3IP20 Protection: Ensures reliable operation in harsh environments with IP20 protection.
- 4Shielded Connection: Provides secure and stable connections with a shielded design.
- 5Double-Deck PCB Terminal Blocks: Supports 26-pin field connections with double-deck spring CAGE CLAMP technology.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating voltage | ≤?AC/DC?125?V | Nominal current | 2A |
Contact resistance (max.) | 30?mΩ | Specialty functions | with shield connection |
Rated voltage | 125V | Rated surge voltage | 0.8kV |
Pollution degree | 2 | Protection type | IP20 |
Insulation type | Basic insulation | Performance level | 2 / 200 mating cycles |
Strain relief | UNC 4-40 stud bolt | Width | 68.5?mm?/ 2.697?inches |
Height | 85?mm?/ 3.346?inches | Depth from upper-edge of DIN-rail | 48?mm?/ 1.89?inches |
Mounting type | DIN-35 rail | Housing design | Mounting carrier |
Contact material (connector) | Au over Ni | Fire load | 1.143MJ |
Weight | 90.1g | Ambient temperature (operation) | -20 … +50 °C |
Ambient temperature (storage) | -40 … +70 °C | Relative humidity | 85% (non-condensing) |
Standards/specifications | EN 61010-2-201 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-14-11-52 | eCl@ss 9.0 | 27-14-11-52 |
ETIM 9.0 | EC002780 | ETIM 8.0 | EC002780 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 4?(1)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454725747 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Pluggable connector | D-subminiature female connector |
Pole number 1 | 25 | Connection type 1 | System |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Mating direction | vertical |
Design 2 | PCB terminal blocks (double-deck) | Pole number (2) | 26 |
Connection type 2 | Field | Connection technology 2 | CAGE CLAMP? |
WAGO connector 2 | WAGO 736 Series | Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length 2 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Specifications may be subject to change without notice
