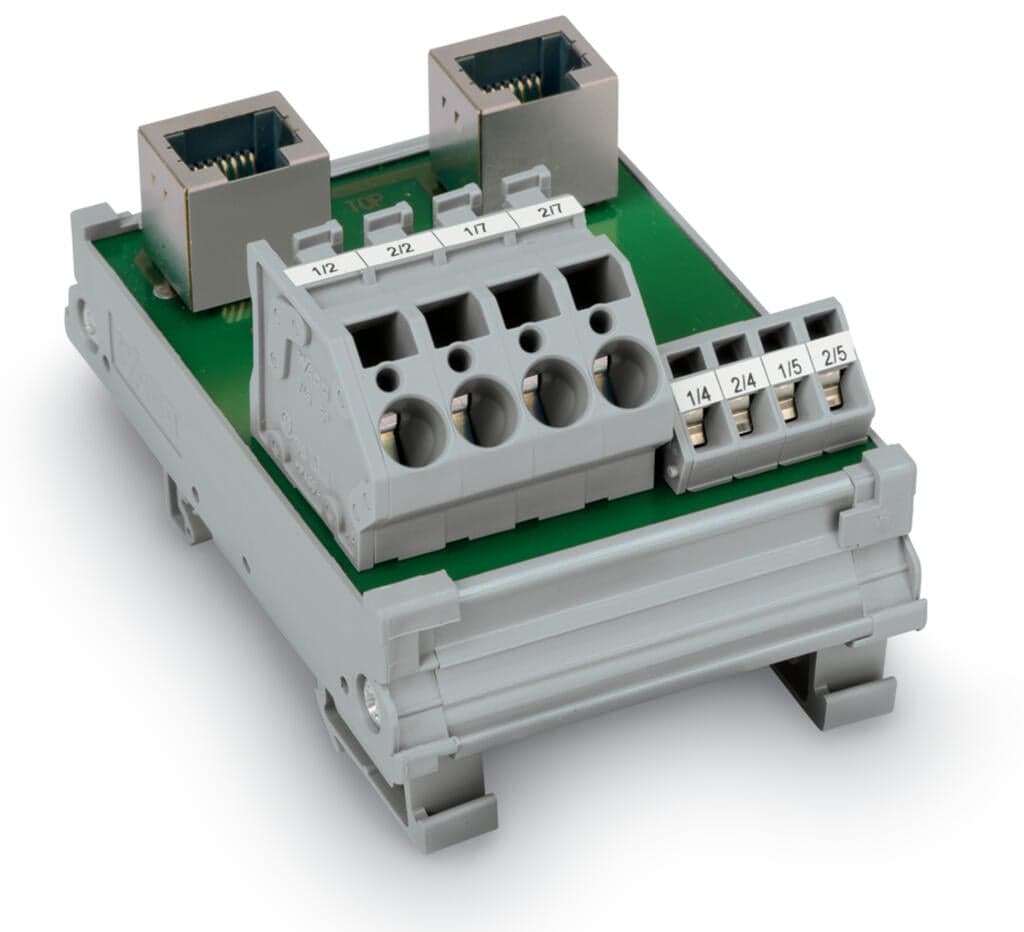

Product Model
289-965
Selling Points
- 1Equipped with 2x RJ-45 connectors for reliable and secure connections.
- 2Designed for easy installation on DIN-35 rail systems, ensuring compact and efficient use.
- 3Supports a rated current of 1.5A, making it suitable for demanding applications.
- 4Operates within an ambient temperature range of -20°C to +85°C, ensuring durability in various environments.
- 5Built with high-quality materials and CAGE CLAMP technology for secure cable management.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal current | 1.5A | Insulation resistance | ≥?500?MΩ |
Dielectric strength (contact/contact) (AC, 1 min) | 0.5kV<sub>rms</sub> | Mating cycles | 500 |
Connection cable | RJ-45 cable assembly (recommended: UTP) | Width | 58?mm?/ 2.283?inches |
Height | 85?mm?/ 3.346?inches | Depth from upper-edge of DIN-rail | 45?mm?/ 1.772?inches |
Mounting type | DIN-35 rail | Housing design | Mounting carrier |
Fire load | 1.038MJ | Weight | 70g |
Ambient temperature (operation) | -20 … +85 °C | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-14-11-52 | eCl@ss 9.0 | 27-14-11-52 |
ETIM 9.0 | EC001132 | ETIM 8.0 | EC001132 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 5?(1)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454830038 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Pluggable connector | 2 x RJ-45 (shielded) |
Pole number 1 | 8 | Connection type 1 | System |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Design 2 | PCB terminal blocks |
Pole number (2) | 8 | Connection type 2 | Clamping units 2, 7 |
Connection technology 2 | CAGE CLAMP? | WAGO connector 2 | WAGO 236 Series |
Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Strip length 2 | 5 … 6?mm?/ 0.2 … 0.24?inches | Design 3 | PCB terminal blocks |
Pole number (3) | 4 | Connection type 3 | Clamping units 4, 5 |
Connection technology 3 | CAGE CLAMP? | WAGO connector 3 | WAGO 745 Series |
Solid conductor 3 | 0.2 … 6?mm2?/ 24 … 10?AWG | Fine-stranded conductor 3 | 0.2 … 6?mm2?/ 24 … 10?AWG |
Strip length 3 | 11 … 12?mm?/ 0.43 … 0.47?inches |
Specifications may be subject to change without notice
