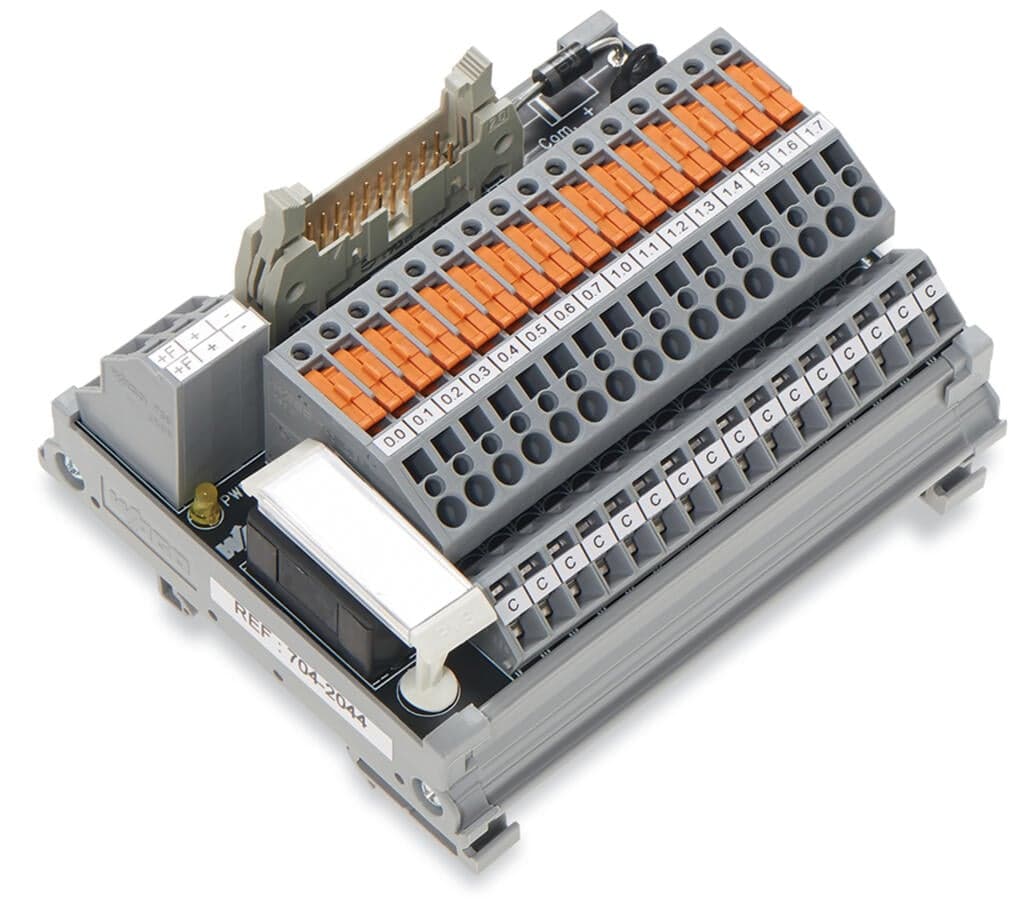

Product Model
704-2044
Selling Points
- 1Efficient Digital I/O: 16-channel digital input or output for seamless data transmission.
- 2Durable Design: Built with a pluggable connector per DIN 41651 for reliable connections.
- 3Easy Mounting: Mounts on DIN-35 rail for convenient installation.
- 4Versatile Connectivity: Supports 2-wire connection for various system wiring needs.
- 5High-Temperature Operation: Operates in ambient temperatures ranging from -20°C to +50°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Inputs/outputs | 16-channel digital input or output | Circuit type | 2-wire connection |
Nominal operating voltage | DC?24?V | Operating voltage range | ±10?% |
Current consumption (status indication) | 5mA | Total current | 2A |
Limiting continuous current | 1?A | Status indicator | Green LED (channel) |
Internal fuse | 2?A | Specialty functions | With disconnect/test terminal blocks |
Rated voltage | 50V | Rated surge voltage | 0.8kV |
Pollution degree | 2 | Width | 99?mm?/ 3.898?inches |
Height | 85?mm?/ 3.346?inches | Depth from upper-edge of DIN-rail | 50?mm?/ 1.969?inches |
Mounting type | DIN-35 rail | Fire load | 2.955MJ |
Weight | 184.1g | Ambient temperature (operation) | -20 … +50 °C |
Ambient temperature (storage) | -40 … +70 °C | Relative humidity | 85% (non-condensing) |
Product Group | 30 (WAGO France) | eCl@ss 10.0 | 27-14-11-52 |
eCl@ss 9.0 | 27-14-11-52 | ETIM 9.0 | EC002780 |
ETIM 8.0 | EC002780 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | FR | GTIN | 4050821220619 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Siemens S7-300 | 6ES7 313-5BE01-0AB0 | Siemens S7-400 | 6ES7 421-1BL01-0AA0 |
Siemens S7-1500 | 6ES7 511-1CK00-0AB0 | Siemens ET200SP | 6ES7 131-6BH01-0BA0 |
GE Fanuc 9030 | IC693 MDL241 | GE Fanuc RX3i | IC694 MDL655 |
Schneider Modicon TM3 | TM3 DI16(G) | Schneider Modicon M340 | BMX DDI 1602 |
Schneider Modicon Quantum | 140 DDI 353 00 | Schneider TSX | TSX DEY 16D2 |
Schneider Twido | TM2 DDI 16DK | Rockwell Compact Logix | 1769 - IQ16 |
Rockwell Control Logix | 1756 - IB16I | Omron CJ1W | CJ1W-ID211 |
WAGO I/O System 750 | 750-1400 | WAGO I/O System 753 | 753-430 (x2) |
Pluggable connector | DIN 41651 connector; male connector | Pole number 1 | 20 |
Connection type 1 | System | Note (conductor cross-section) | 12 AWG: THHN, THWN |
Mating direction | vertical | Design 2 | PCB terminal blocks |
Pole number (2) | 16 | Connection type 2 | Field |
WAGO connector 2 | WAGO 742 Series | Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length 2 | 8 … 9?mm?/ 0.31 … 0.35?inches |
Design 3 | PCB terminal blocks | Pole number (3) | 16 |
Connection type 3 | Field | WAGO connector 3 | WAGO 236 Series |
Solid conductor 3 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor 3 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Strip length 3 | 5 … 6?mm?/ 0.2 … 0.24?inches | Design (4) | PCB terminal blocks (double-deck) |
Pole number (4) | 6 | Connection type 4 | Power supply |
WAGO connector 4 | WAGO 736 Series | Solid conductor 4 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor 4 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length 4 | 5 … 6?mm?/ 0.2 … 0.24?inches |
