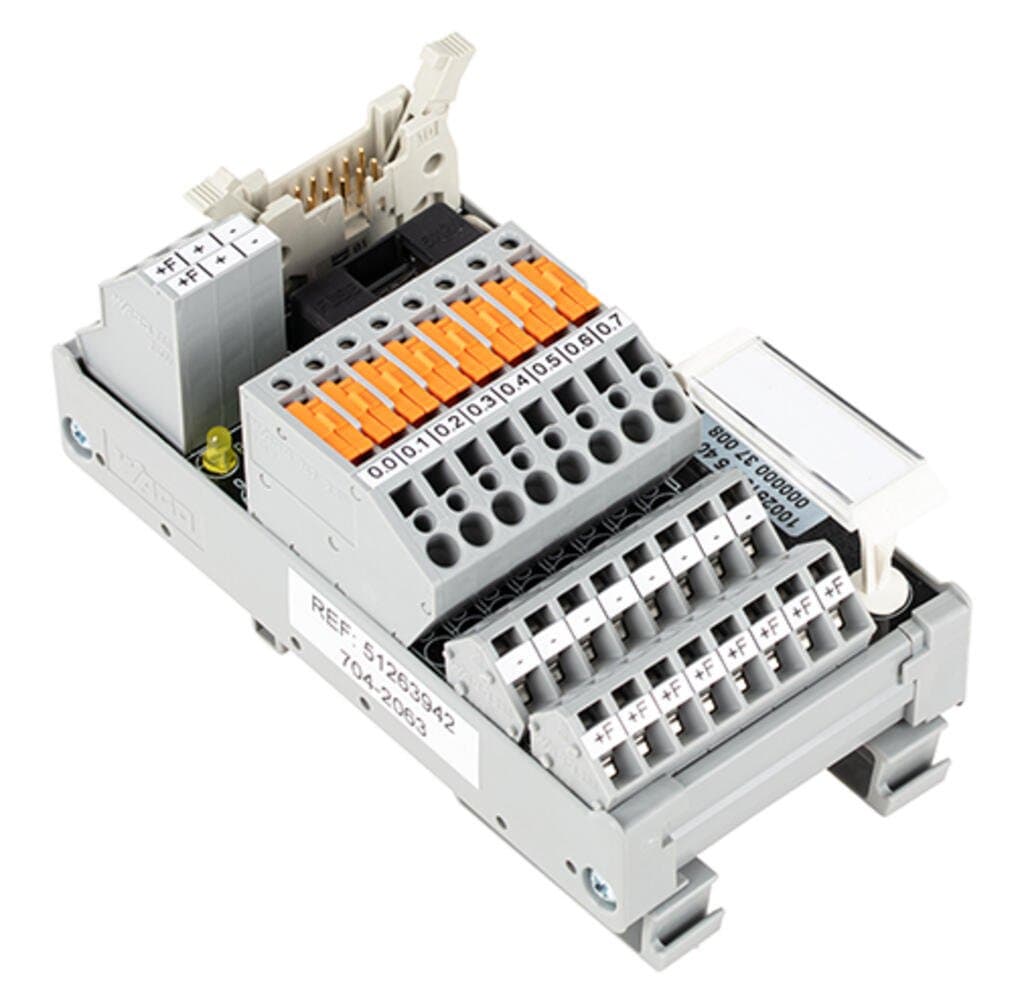

Product Model
704-2063
Selling Points
- 1Comprehensive Compatibility: Compatible with various PLC modules including Siemens S7-300, S7-400, and GE Fanuc 9030.
- 2Versatile Connectivity: 10-pole configuration with a pluggable DIN 41651 male connector for vertical system connections.
- 3Reliable Performance: Operates within a nominal operating voltage of 24 V DC and an ambient temperature range of -20°C to +50°C.
- 4Efficient Design: 8-channel digital input or output with 3-wire connection and spring CAGE CLAMP terminals for 0.08 to 1.5mm² cables.
- 5Easy Installation: Includes a disconnect terminal block and is designed for mounting on DIN-35 rail, making it easy to integrate into your system wiring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Inputs/outputs | 8-channel digital input or output | Circuit type | 3-wire connection |
Nominal operating voltage | DC?24?V | Operating voltage range | ±10?% |
Current consumption (status indication) | 5mA | Total current | 2A |
Limiting continuous current | 1?A | Status indicator | Green LED (channel) |
Internal fuse | 2?A | Specialty functions | With disconnect/test terminal blocks |
Rated voltage | 50V | Rated surge voltage | 0.8kV |
Pollution degree | 2 | Width | 56?mm?/ 2.205?inches |
Height | 105?mm?/ 4.133?inches | Depth from upper-edge of DIN-rail | 63?mm?/ 2.48?inches |
Mounting type | DIN-35 rail | Fire load | 1.704MJ |
Weight | 114.4g | Ambient temperature (operation) | -20 … +50 °C |
Ambient temperature (storage) | -40 … +70 °C | Relative humidity | 85% (non-condensing) |
ETIM 9.0 | EC002780 | ETIM 8.0 | EC002780 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143982672 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | ea9a20da-8b1a-439a-a833-8ee3e9359dd1 | SCIP notification number (Belgium) | ebd72325-2c63-4714-85c6-8118c200cafa |
SCIP notification number (Bulgaria) | 94557d82-b313-4285-b4dc-e2d313075247 | SCIP notification number (Czech Republic) | 20b8f1bb-502b-408d-a8a0-5b764f12e475 |
SCIP notification number (Denmark) | be02303e-6e1c-45eb-be4e-ae6dd975f3c3 | SCIP notification number (Finland) | 89390587-075a-4386-8ec2-6938d7751ce7 |
SCIP notification number (France) | 0c7750b7-c4d4-4470-8222-8dd456d677a0 | SCIP notification number (Germany) | dbcb5603-5a25-4486-b62d-ee23ff8c96b7 |
SCIP notification number (Hungary) | 36e1c04d-f474-47a9-9485-4a0d6eea10c6 | SCIP notification number (Italy) | 7efab2cc-10b0-4773-b9ee-34a30d9b29d1 |
SCIP notification number (Netherlands) | 54ee55f1-13bd-49b4-8a3e-dfdd19aa10e2 | SCIP notification number (Poland) | f1db8e2c-42a8-418e-8616-511c338c81fb |
SCIP notification number (Romania) | 19e89bee-8d45-450e-b5df-8384d92f6342 | SCIP notification number (Sweden) | d041b71a-6f2c-4e44-a762-aba4fceeb88f |
Siemens S7-300 | 6ES7 313-5BE01-0AB0 | Siemens S7-1500 | 6ES7 522-1BF00-0AB0 |
Siemens ET200SP | 6ES7 131-6BF00-0CA0 | GE Fanuc 9030 | IC693 MDL634 |
Schneider Modicon TM3 | TM3 DI8(G) | Schneider Modicon M340 | BMX DDM 16022 |
Schneider Modicon Quantum | 140 DDM 390 00 | Schneider TSX | TSX DEY 08D2 |
Rockwell Compact Logix | 1769 - OB8 | Omron CJ1W | CJ1W-ID201 |
WAGO I/O System 750 | 750-1502 | WAGO I/O System 753 | 753-430 (x1) |
Pluggable connector | DIN 41651 connector; male connector | Pole number 1 | 10 |
Connection type 1 | System | Mating direction | vertical |
Design 2 | PCB terminal blocks | Pole number (2) | 8 |
Connection type 2 | Field | WAGO connector 2 | WAGO 742 Series |
Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Strip length 2 | 8 … 9?mm?/ 0.31 … 0.35?inches | Design 3 | PCB terminal blocks |
Pole number (3) | 16 | Connection type 3 | Field |
WAGO connector 3 | WAGO 236 Series | Solid conductor 3 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor 3 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length 3 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Design (4) | PCB terminal blocks (double-deck) | Pole number (4) | 24 |
Connection type 4 | Power supply | WAGO connector 4 | WAGO 736 Series |
Solid conductor 4 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor 4 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Strip length 4 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Specifications may be subject to change without notice
