Product Model

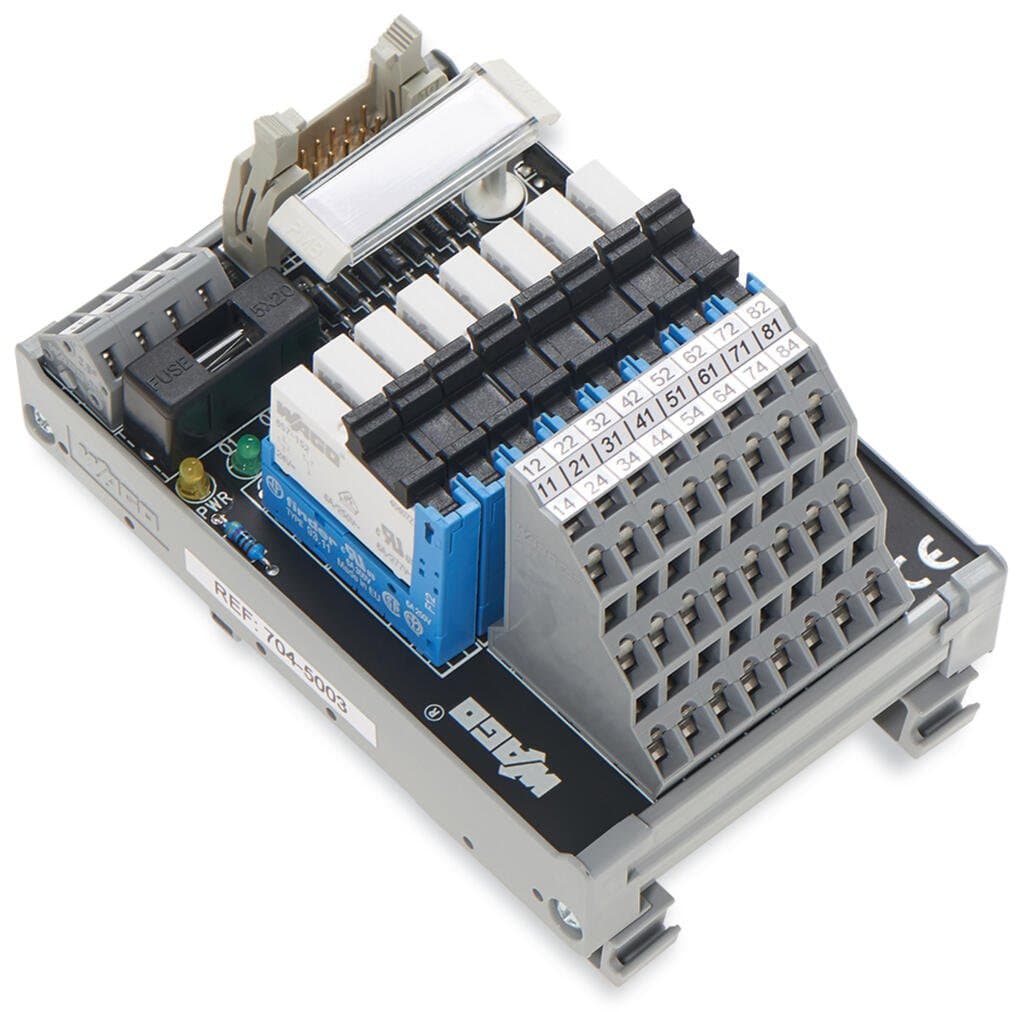

704-5003
Selling Points
- 1Pluggable DIN 41651 Connector: Ensures secure and reliable connections.
- 210-Pole Configuration: Provides flexibility with 8-channel relay output.
- 3High Reliability: Designed for demanding industrial applications.
- 4Easy Installation: Mounts on a DIN-35 rail for straightforward setup.
- 5Versatile Connectivity: Supports 2.50 mm² conductor range for various cable types.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Inputs/outputs | 8-channel relay output | Nominal operating voltage | DC?24?V |
Operating voltage range | ±10?% | Number of changeover contacts | 1 |
Limiting continuous current | 5?A | Switching Voltage, Max. | AC?250?V;?DC?48?V |
Switching power (resistive) max. | AC?1250?VA;?DC?50?W | Mechanical life | 10?x 10? switching operations |
Status indicator | Green LED (channel) | Internal fuse | Supply: 1 A; Relay output: - |
WAGO Basic Relay | 857-152 | Rated voltage | 50V |
Rated surge voltage | 0.8kV | Pollution degree | 2 |
Dielectric strength (control/load circuit) (AC, 1?min) | 4?kVrms | Dielectric strength (load/load circuit) (AC, 1?min) | 1?kVrms |
Width | 70?mm?/ 2.756?inches | Height | 105?mm?/ 4.134?inches |
Depth from upper-edge of DIN-rail | 65?mm?/ 2.559?inches | Mounting type | DIN-35 rail |
Contact material (relay) | AgSnO2 | Fire load | 1.304MJ |
Weight | 230g | Ambient temperature (operation) | -25 … +40 °C |
Ambient temperature (storage) | -40 … +70 °C | Relative humidity | 85% (non-condensing) |
Product Group | 30 (WAGO France) | eCl@ss 10.0 | 27-14-11-52 |
eCl@ss 9.0 | 27-14-11-52 | ETIM 9.0 | EC002780 |
ETIM 8.0 | EC002780 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | FR | GTIN | 4045454980092 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Bulgaria) | 0c7733fd-61a0-4cde-8ddc-942c6a0fa5ea |
SCIP notification number (Czech Republic) | f202cc7f-10ec-4ffc-827b-a812bffd4864 | Siemens S7-300 | 6ES7 322-1BF01-0AA0 |
Siemens S7-1500 | 6ES7 522-1BF00-0AB0 | Siemens ET200SP | 6ES7 132-6BF00-0CA0 |
GE Fanuc 9030 | IC693 MDL730 | Schneider Modicon TM3 | TM3 DQ8T(G) |
Schneider Modicon M340 | BMX DDM 16022 | Schneider Modicon Quantum | 140 DDM 390 00 |
Schneider TSX | TSX DSY 08T2 | Rockwell Compact Logix | 1769 - OB8 |
Omron CJ1W | CJ1W-OD204 | WAGO I/O System 750 | 750-1502 |
WAGO I/O System 753 | 753-530 (x1) | Pluggable connector | DIN 41651 connector; male connector |
Pole number 1 | 10 | Connection type 1 | System |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Mating direction | vertical |
Design 2 | PCB terminal blocks (triple-deck) | Pole number (2) | 24 |
Connection type 2 | Field | WAGO connector 2 | WAGO 737 Series |
Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Strip length 2 | 5 … 6?mm?/ 0.2 … 0.24?inches | Design 3 | PCB terminal blocks |
Pole number (3) | 4 | Connection type 3 | Power supply |
WAGO connector 3 | WAGO 236 Series | Solid conductor 3 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor 3 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length 3 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Specifications may be subject to change without notice
