Product Model

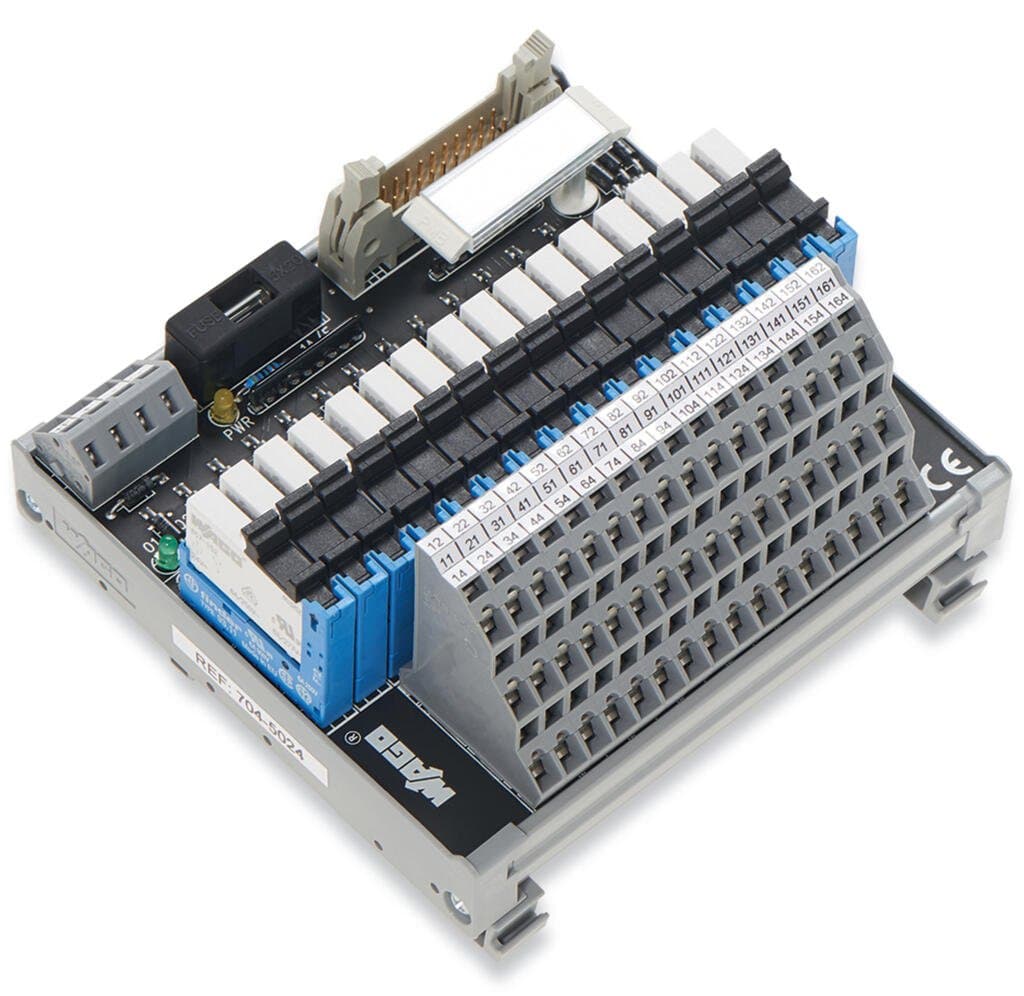

704-5024
Selling Points
- 1The WAGO 704-5024 features a 16-channel relay output for precise control.
- 2Built with triple-deck PCB terminal blocks and a mounting carrier for long-lasting performance.
- 3Compatible with DIN-35 rail mounting for straightforward integration into your system.
- 4Equipped with green LED indicators for channel status and yellow LEDs for power supply status.
- 5Designed to withstand 10 million switching operations, ensuring high mechanical life and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Inputs/outputs | 16-channel relay output | Nominal operating voltage | DC?24?V |
Operating voltage range | ±10?% | Number of changeover contacts | 1 |
Limiting continuous current | 5?A | Switching Voltage, Max. | AC?250?V;?DC?48?V |
Switching power (resistive) max. | AC?1250?VA;?DC?50?W | Mechanical life | 10?x 10? switching operations |
Status indicator | Green LED (channel) | Internal fuse | Supply: 1 A; Relay output: - |
WAGO Basic Relay | 857-152 | Rated voltage | 50V |
Rated surge voltage | 0.8kV | Pollution degree | 2 |
Dielectric strength (control/load circuit) (AC, 1?min) | 4?kVrms | Dielectric strength (load/load circuit) (AC, 1?min) | 1?kVrms |
Width | 111?mm?/ 4.37?inches | Height | 105?mm?/ 4.134?inches |
Depth from upper-edge of DIN-rail | 65?mm?/ 2.559?inches | Mounting type | DIN-35 rail |
Contact material (relay) | AgSnO2 | Fire load | 1.776MJ |
Weight | 300g | Ambient temperature (operation) | -25 … +40 °C |
Ambient temperature (storage) | -40 … +70 °C | Relative humidity | 85% (non-condensing) |
Product Group | 30 (WAGO France) | eCl@ss 10.0 | 27-14-11-52 |
eCl@ss 9.0 | 27-14-11-52 | ETIM 9.0 | EC002780 |
ETIM 8.0 | EC002780 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | FR | GTIN | 4045454980139 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Siemens S7-300 | 6ES7 313-5BE01-0AB0 | Siemens S7-400 | 6ES7 422-1BL00-0AA0 |
Siemens S7-1500 | 6ES7 511-1CK00-0AB0 | Siemens ET200SP | 6ES7 132-6BH00-0AA0 |
GE Fanuc 9030 | IC693 MDL740 | GE Fanuc RX3i | IC694 MDL753 |
Schneider Modicon TM3 | TM3 DQ16T(G) | Schneider Modicon M340 | BMX DDO 1602 |
Schneider Modicon Quantum | 140 DDO 353 00 | Schneider TSX | TSX DSY 16T2 |
Schneider Twido | TM2 DDO 16TK | Rockwell Compact Logix | 1769 - OB16 |
Rockwell Control Logix | 1756 - OB16E | Omron CJ1W | CJ1W-MD232 |
WAGO I/O System 750 | 750-1500 | WAGO I/O System 753 | 753-530 (x2) |
Pluggable connector | DIN 41651 connector; male connector | Pole number 1 | 20 |
Connection type 1 | System | Note (conductor cross-section) | 12 AWG: THHN, THWN |
Mating direction | vertical | Design 2 | PCB terminal blocks (triple-deck) |
Pole number (2) | 48 | Connection type 2 | Field |
WAGO connector 2 | WAGO 737 Series | Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length 2 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Design 3 | PCB terminal blocks | Pole number (3) | 4 |
Connection type 3 | Power supply | WAGO connector 3 | WAGO 236 Series |
Solid conductor 3 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor 3 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Strip length 3 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Specifications may be subject to change without notice
