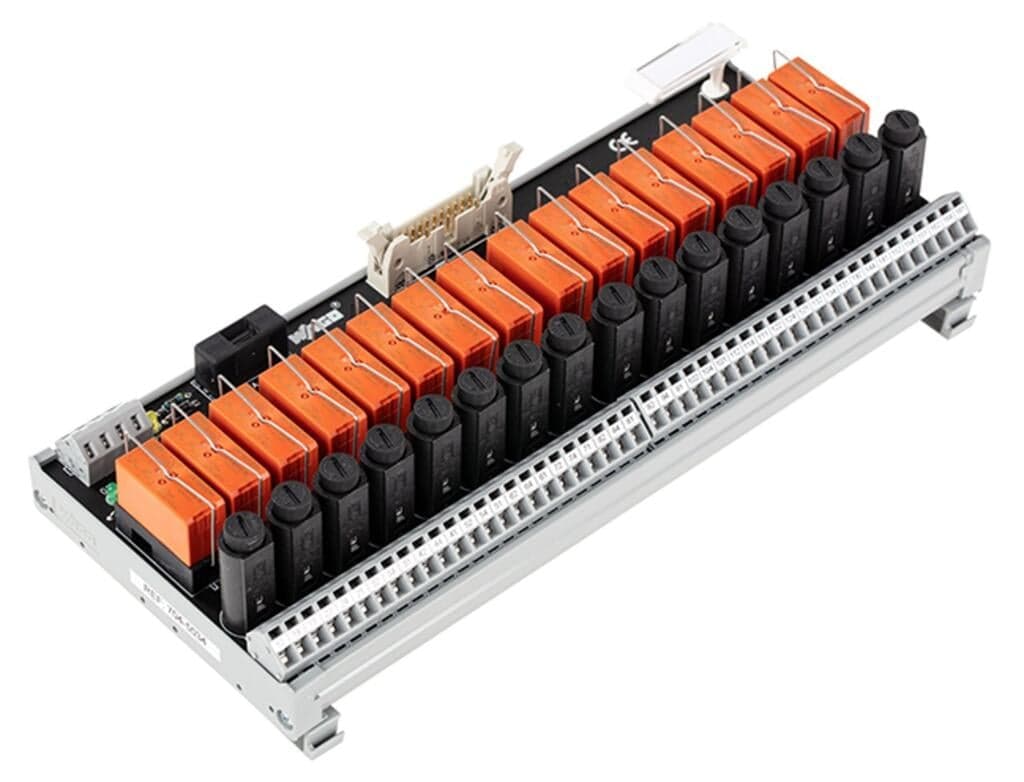

Product Model
704-5034
Selling Points
- 116-channel relay output ensures robust signal processing.
- 2Easy installation on DIN-35 rail systems.
- 3Compliant with DIN 41651 for secure connections.
- 4Includes output fuse and PCB terminal blocks for added safety.
- 5Withstands 30 x 10^6 switching operations for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Independent of the relay used, the maximum continuous current is 5 A per channel. | Inputs/outputs | 16-channel relay output |
Nominal operating voltage | DC?24?V | Operating voltage range | ±10?% |
Number of changeover contacts | 1 | Limiting continuous current | 5?A |
Making capacity | 2?ms?16?A | Switching Voltage, Max. | AC?250?V;?DC?48?V |
Switching power (resistive) max. | AC?1250?VA;?DC?50?W | Mechanical life | 30?x 10? switching operations |
Status indicator | Green LED (channel) | Internal fuse | Supply: 1 A; Relay output: 5 A |
WAGO Basic Relay | 788-154 | Specialty functions | With output fuse |
Rated voltage | 50V | Rated surge voltage | 0.8kV |
Pollution degree | 2 | Dielectric strength (control/load circuit) (AC, 1?min) | 4?kVrms |
Dielectric strength (load/load circuit) (AC, 1?min) | 1?kVrms | Width | 247?mm?/ 9.724?inches |
Height | 105?mm?/ 4.134?inches | Depth from upper-edge of DIN-rail | 55?mm?/ 2.165?inches |
Mounting type | DIN-35 rail | Contact material (relay) | AgNi 90/10 |
Fire load | 5.442MJ | Weight | 685g |
Ambient temperature (operation) | -25 … +50 °C | Ambient temperature (storage) | -40 … +70 °C |
Relative humidity | 85% (non-condensing) | Product Group | 30 (WAGO France) |
eCl@ss 10.0 | 27-14-11-52 | eCl@ss 9.0 | 27-14-11-52 |
ETIM 9.0 | EC002780 | ETIM 8.0 | EC002780 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | FR |
GTIN | 4045454980153 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Siemens S7-300 | 6ES7 313-5BE01-0AB0 |
Siemens S7-400 | 6ES7 422-1BL00-0AA0 | Siemens S7-1500 | 6ES7 511-1CK00-0AB0 |
Siemens ET200SP | 6ES7 132-6BH00-0AA0 | GE Fanuc 9030 | IC693 MDL740 |
GE Fanuc RX3i | IC694 MDL753 | Schneider Modicon TM3 | TM3 DQ16T(G) |
Schneider Modicon M340 | BMX DDO 1602 | Schneider Modicon Quantum | 140 DDO 353 00 |
Schneider TSX | TSX DSY 16T2 | Schneider Twido | TM2 DDO 16TK |
Rockwell Compact Logix | 1769 - OB16 | Rockwell Control Logix | 1756 - OB16E |
Omron CJ1W | CJ1W-MD232 | WAGO I/O System 750 | 750-1500 |
WAGO I/O System 753 | 753-530 (x2) | Pluggable connector | DIN 41651 connector; male connector |
Pole number 1 | 20 | Connection type 1 | System |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Mating direction | vertical |
Design 2 | PCB terminal blocks | Pole number (2) | 48 |
Connection type 2 | Field | WAGO connector 2 | WAGO 236 Series |
Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Strip length 2 | 5 … 6?mm?/ 0.2 … 0.24?inches | Design 3 | PCB terminal blocks |
Pole number (3) | 4 | Connection type 3 | Power supply |
WAGO connector 3 | WAGO 236 Series | Solid conductor 3 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor 3 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length 3 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Specifications may be subject to change without notice
