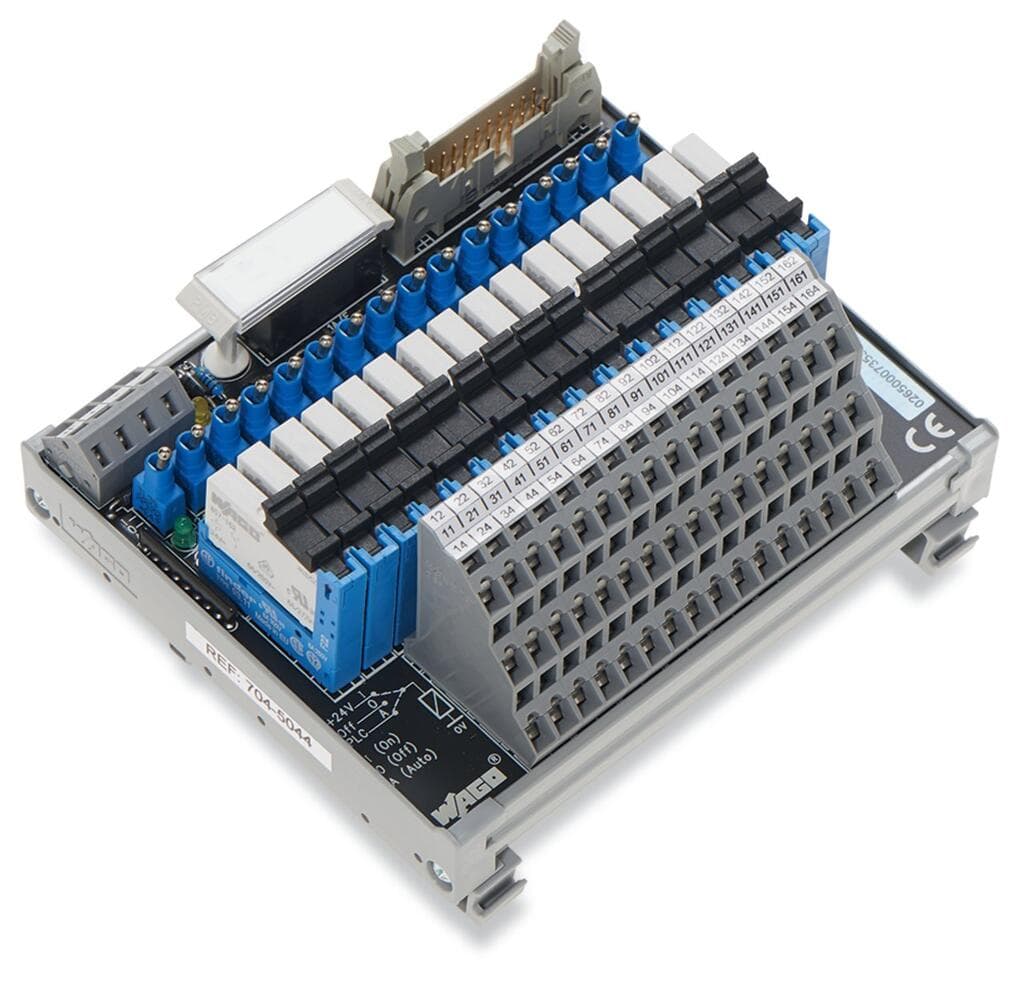

Product Model
704-5044
Selling Points
- 116-Channel Relay Output: Control multiple devices with precision and reliability.
- 2Manual Operation: Easy to use and configure without complex automation.
- 3DIN-35 Rail Mounting: Convenient and secure installation on standard DIN rails.
- 4High Mechanical Life: Withstands up to 10 x 10^6 switching operations for durability.
- 5Robust Connectivity: Features a 20-pole pluggable connector per DIN 41651 for secure connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Inputs/outputs | 16-channel relay output | Nominal operating voltage | DC?24?V |
Operating voltage range | ±10?% | Number of changeover contacts | 1 |
Limiting continuous current | 5?A | Switching Voltage, Max. | AC?250?V;?DC?48?V |
Switching power (resistive) max. | AC?1250?VA;?DC?50?W | Mechanical life | 10?x 10? switching operations |
Status indicator | Green LED (channel) | Internal fuse | Supply: 1 A; Relay output: - |
WAGO Basic Relay | 857-152 | Specialty functions | With manual operation |
Rated voltage | 50V | Rated surge voltage | 0.8kV |
Pollution degree | 2 | Dielectric strength (control/load circuit) (AC, 1?min) | 4?kVrms |
Dielectric strength (load/load circuit) (AC, 1?min) | 1?kVrms | Width | 121?mm?/ 4.76?inches |
Height | 105?mm?/ 4.134?inches | Depth from upper-edge of DIN-rail | 65?mm?/ 2.559?inches |
Mounting type | DIN-35 rail | Contact material (relay) | AgSnO2 |
Fire load | 1.776MJ | Weight | 319g |
Ambient temperature (operation) | -25 … +40 °C | Ambient temperature (storage) | -40 … +70 °C |
Relative humidity | 85% (non-condensing) | Product Group | 30 (WAGO France) |
eCl@ss 10.0 | 27-14-11-52 | eCl@ss 9.0 | 27-14-11-52 |
ETIM 9.0 | EC002780 | ETIM 8.0 | EC002780 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | FR |
GTIN | 4045454980160 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Siemens S7-300 | 6ES7 313-5BE01-0AB0 |
Siemens S7-400 | 6ES7 422-1BL00-0AA0 | Siemens S7-1500 | 6ES7 511-1CK00-0AB0 |
Siemens ET200SP | 6ES7 132-6BH00-0AA0 | GE Fanuc 9030 | IC693 MDL740 |
GE Fanuc RX3i | IC694 MDL753 | Schneider Modicon TM3 | TM3 DQ16T(G) |
Schneider Modicon M340 | BMX DDO 1602 | Schneider Modicon Quantum | 140 DDO 353 00 |
Schneider TSX | TSX DSZ 32T2 | Schneider Twido | TM2 DDO 16TK |
Rockwell Compact Logix | 1769 - OB16 | Rockwell Control Logix | 1756 - OB16E |
Omron CJ1W | CJ1W-MD232 | WAGO I/O System 750 | 750-1500 |
WAGO I/O System 753 | 753-530 (x2) | Pluggable connector | DIN 41651 connector; male connector |
Pole number 1 | 20 | Connection type 1 | System |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Mating direction | vertical |
Design 2 | PCB terminal blocks (triple-deck) | Pole number (2) | 48 |
Connection type 2 | Field | WAGO connector 2 | WAGO 737 Series |
Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Strip length 2 | 5 … 6?mm?/ 0.2 … 0.24?inches | Design 3 | PCB terminal blocks |
Pole number (3) | 4 | Connection type 3 | Power supply |
WAGO connector 3 | WAGO 236 Series | Solid conductor 3 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor 3 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length 3 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Specifications may be subject to change without notice
