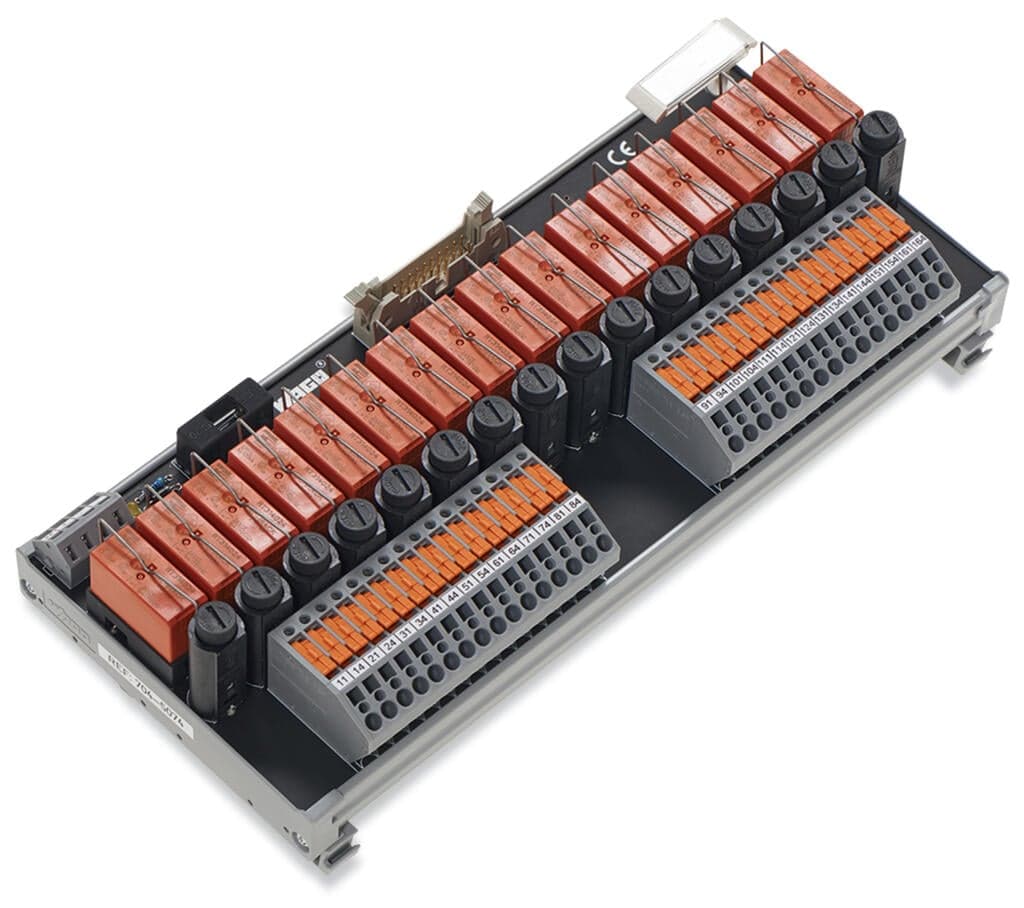

Product Model
704-5074
Selling Points
- 116-channel relay output for versatile system connections.
- 2DIN-35 rail mounting for easy integration into control systems.
- 320-pole pluggable connector per DIN 41651 for secure connections.
- 4High mechanical life of 30 x 10^6 switching operations.
- 5Equipped with a disconnect terminal block and fuse for safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Independent of the relay used, the maximum continuous current is 5 A per channel. | Inputs/outputs | 16-channel relay output |
Nominal operating voltage | DC?24?V | Operating voltage range | ±10?% |
Number of make/switch-on contacts | 1 | Limiting continuous current | 5?A |
Switching Voltage, Max. | AC?250?V;?DC?48?V | Switching power (resistive) max. | AC?1250?VA;?DC?50?W |
Mechanical life | 30?x 10? switching operations | Status indicator | Green LED (channel) |
Internal fuse | Supply: 1 A; Relay output: 5 A | WAGO Basic Relay | 788-154 |
Specialty functions | With disconnect/test terminal blocks | Rated voltage | 50V |
Rated surge voltage | 0.8kV | Pollution degree | 2 |
Dielectric strength (control/load circuit) (AC, 1?min) | 4?kVrms | Dielectric strength (load/load circuit) (AC, 1?min) | 1?kVrms |
Width | 240?mm?/ 9.449?inches | Height | 105?mm?/ 4.134?inches |
Depth from upper-edge of DIN-rail | 55?mm?/ 2.165?inches | Mounting type | DIN-35 rail |
Contact material (relay) | AgNi 90/10 | Fire load | 7.22MJ |
Weight | 785g | Ambient temperature (operation) | -25 … +50 °C |
Ambient temperature (storage) | -40 … +70 °C | Relative humidity | 85% (non-condensing) |
Product Group | 30 (WAGO France) | eCl@ss 10.0 | 27-14-11-52 |
eCl@ss 9.0 | 27-14-11-52 | ETIM 9.0 | EC002780 |
ETIM 8.0 | EC002780 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | FR | GTIN | 4045454980207 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Siemens S7-300 | 6ES7 313-5BE01-0AB0 | Siemens S7-400 | 6ES7 422-1BL00-0AA0 |
Siemens S7-1500 | 6ES7 511-1CK00-0AB0 | Siemens ET200SP | 6ES7 132-6BH00-0AA0 |
GE Fanuc 9030 | IC693 MDL740 | GE Fanuc RX3i | IC694 MDL753 |
Schneider Modicon TM3 | TM3 DQ16T(G) | Schneider Modicon M340 | BMX DDO 1602 |
Schneider Modicon Quantum | 140 DDO 353 00 | Schneider TSX | TSX DSY 16T2 |
Schneider Twido | TM2 DDO 16TK | Rockwell Compact Logix | 1769 - OB16 |
Rockwell Control Logix | 1756 - OB16E | Omron CJ1W | CJ1W-MD232 |
WAGO I/O System 750 | 750-1500 | WAGO I/O System 753 | 753-530 (x2) |
Pluggable connector | DIN 41651 connector; male connector | Pole number 1 | 20 |
Connection type 1 | System | Note (conductor cross-section) | 12 AWG: THHN, THWN |
Mating direction | vertical | Design 2 | PCB terminal blocks |
Pole number (2) | 32 | Connection type 2 | Field |
WAGO connector 2 | WAGO 742 Series | Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length 2 | 8 … 9?mm?/ 0.31 … 0.35?inches |
Design 3 | PCB terminal blocks | Pole number (3) | 4 |
Connection type 3 | Power supply | WAGO connector 3 | WAGO 236 Series |
Solid conductor 3 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor 3 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Strip length 3 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Specifications may be subject to change without notice
