Product Model

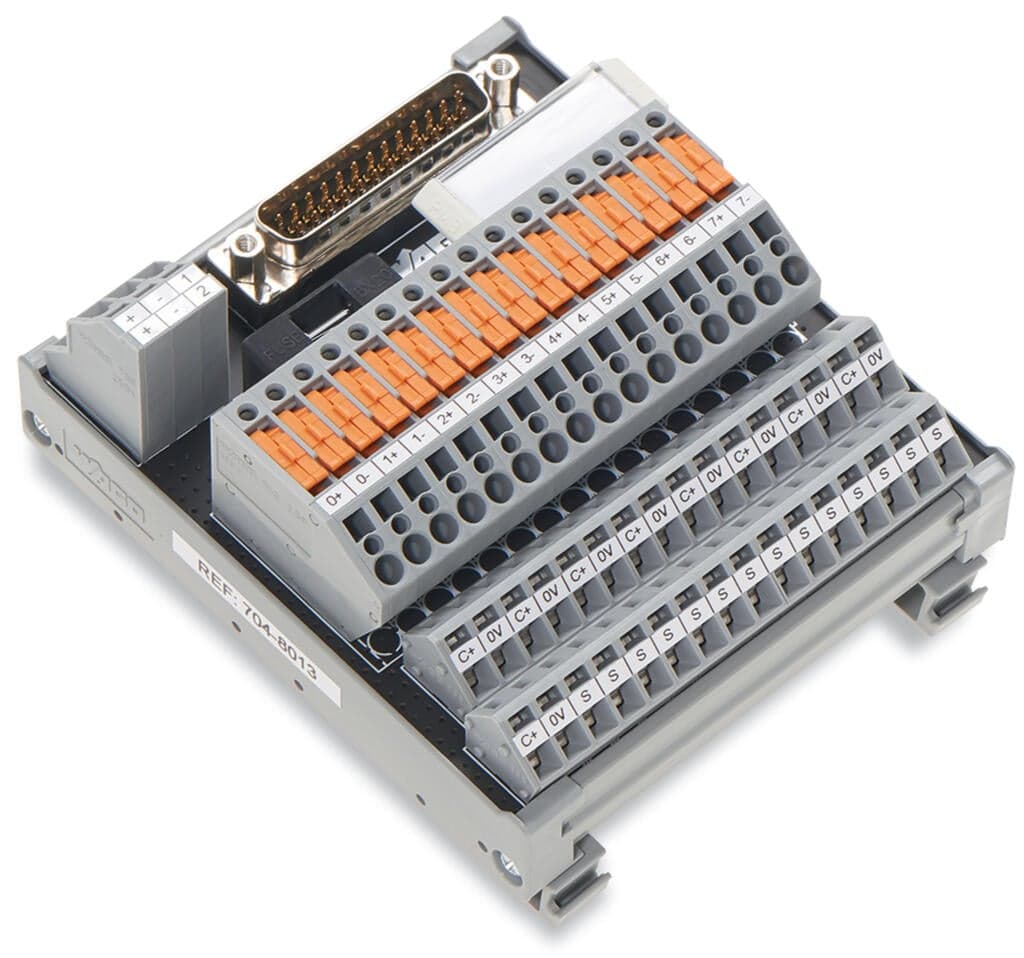

704-8013
Selling Points
- 18-Channel Analog Input/Output: Supports both analog inputs and outputs for versatile system integration.
- 225-Pole Configuration: Provides a robust connection with a 25-pole setup, ensuring reliable data transfer.
- 3D-Sub Male Connector: Equipped with a 25-pin D-sub male connector for easy system connections.
- 4CAGE CLAMP Technology: Utilizes spring CAGE CLAMP technology for secure field connections accommodating cables from 0.08 to 2.5mm².
- 5DIN-35 Rail Mounting: Designed for mounting on DIN-35 rails, offering a compact and efficient installation solution.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Inputs/outputs | 8-channel analog input or output | Circuit type | 2-wire connection |
Operating voltage | ≤48?VDC | Limiting continuous current | 1?A |
Internal fuse | Supply: 2 A | Specialty functions | With disconnect/test terminal blocks |
Rated voltage | 50V | Rated surge voltage | 0.8kV |
Pollution degree | 2 | Width | 92?mm?/ 3.62?inches |
Height | 105?mm?/ 4.134?inches | Depth from upper-edge of DIN-rail | 50?mm?/ 1.969?inches |
Mounting type | DIN-35 rail | Fire load | 2.496MJ |
Weight | 190g | Ambient temperature (operation) | -20 … +50 °C |
Ambient temperature (storage) | -40 … +70 °C | Relative humidity | 85% (non-condensing) |
Product Group | 30 (WAGO France) | eCl@ss 10.0 | 27-14-11-52 |
eCl@ss 9.0 | 27-14-11-52 | ETIM 9.0 | EC002780 |
ETIM 8.0 | EC002780 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | FR | GTIN | 4050821115564 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Siemens S7-300 | 6ES7 331-1KF02-0AB0 | Siemens S7-400 | 6ES7 431-1KF00-0AB0 |
Siemens S7-1500 | 6ES7 531-7KF00-0AB0 | GE Fanuc 9030 | IC693 ALG222 |
GE Fanuc RX3i | IC694 ALG223 | Schneider Modicon TM3 | TM3 AI8(G) |
Schneider Modicon M340 | BMX ART 0414 | Schneider Modicon Quantum | 140 ACI 030 00 |
Schneider TSX | TSX AEY 414 | Rockwell Compact Logix | 1769 - IF16C |
Rockwell Control Logix | 1756 - IF6CIS | WAGO I/O System 753 | 753-453 (x2) |
Pluggable connector | D-subminiature male connector | Pole number 1 | 25 |
Connection type 1 | System | Note (conductor cross-section) | 12 AWG: THHN, THWN |
Mating direction | vertical | Design 2 | PCB terminal blocks |
Pole number (2) | 16 | Connection type 2 | Field |
WAGO connector 2 | WAGO 742 Series | Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length 2 | 8 … 9?mm?/ 0.31 … 0.35?inches |
Design 3 | PCB terminal blocks (double-row) | Pole number (3) | 32 |
Connection type 3 | Field | WAGO connector 3 | WAGO 236 Series |
Solid conductor 3 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor 3 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Strip length 3 | 5 … 6?mm?/ 0.2 … 0.24?inches | Design (4) | PCB terminal blocks (double-deck) |
Pole number (4) | 6 | Connection type 4 | Power supply |
Connection technology 4 | CAGE CLAMP? | WAGO connector 4 | WAGO 736 Series |
Solid conductor 4 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor 4 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Strip length 4 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Specifications may be subject to change without notice
