Product Model
706-100/1303-200
Selling Points

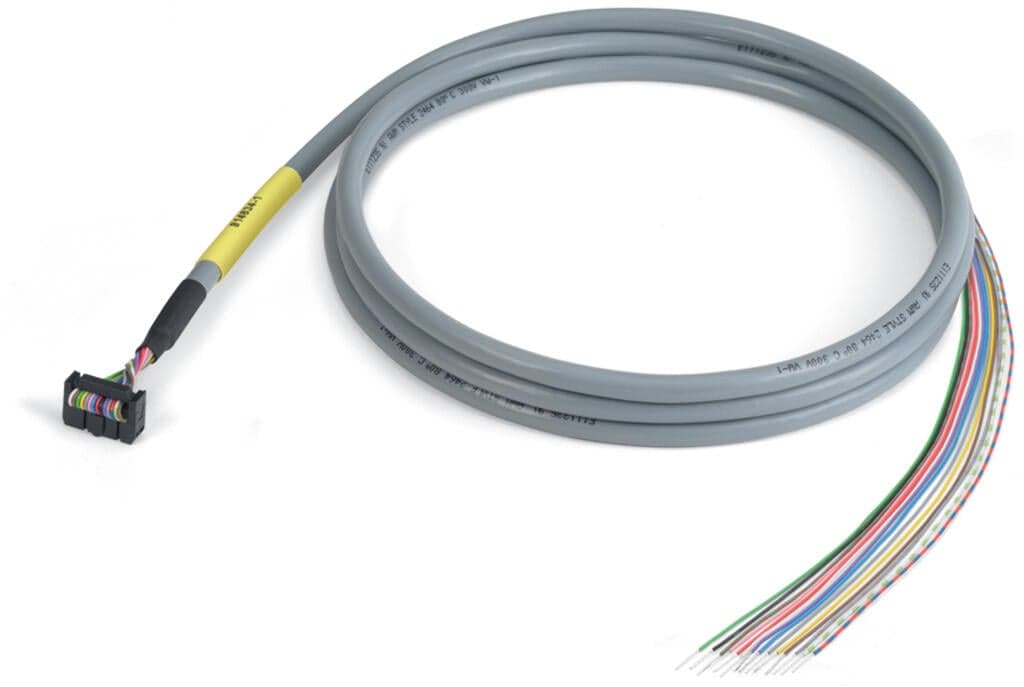

- 114-Pole Pluggable Connector: DIN 41651 compliant for secure connections.
- 2Open-Ended Design: Easy to connect and disconnect without damaging the cable.
- 32-Meter Length: Convenient for various industrial setups and configurations.
- 4UR Components, 857 Series: High-quality components for reliable performance.
- 5IP20 Protection: Ensures safe operation in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | When using more than 10 wires, the maximum current per wire must be reduced to 0.7?A. | Operating voltage | ≤?AC/DC?35?V |
Current per wire (max.) | 1A | Cable type | LiYY |
Color code | per DIN VDE 47100 | Cable length | 2m |
Weight | 199g | Ambient temperature (operation) | -20 … +50 °C |
Product Group | 30 (WAGO France) | eCl@ss 10.0 | 27-06-03-11 |
eCl@ss 9.0 | 27-06-03-11 | ETIM 9.0 | EC001855 |
ETIM 8.0 | EC001855 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | FR | GTIN | 4050821452423 |
Customs tariff number | 8544429090 | RoHS Compliance Status | Compliant,No Exemption |
Pluggable connector | Pluggable connector per DIN 41651; female connector | Pole number 1 | 14 |
Connection type 1 | System | Wire cross-section | 0.14mm2 |
Connector 2 | open-ended | Connection type 2 | open-ended |
Specifications may be subject to change without notice
