Product Model
706-100/1602-200
Selling Points

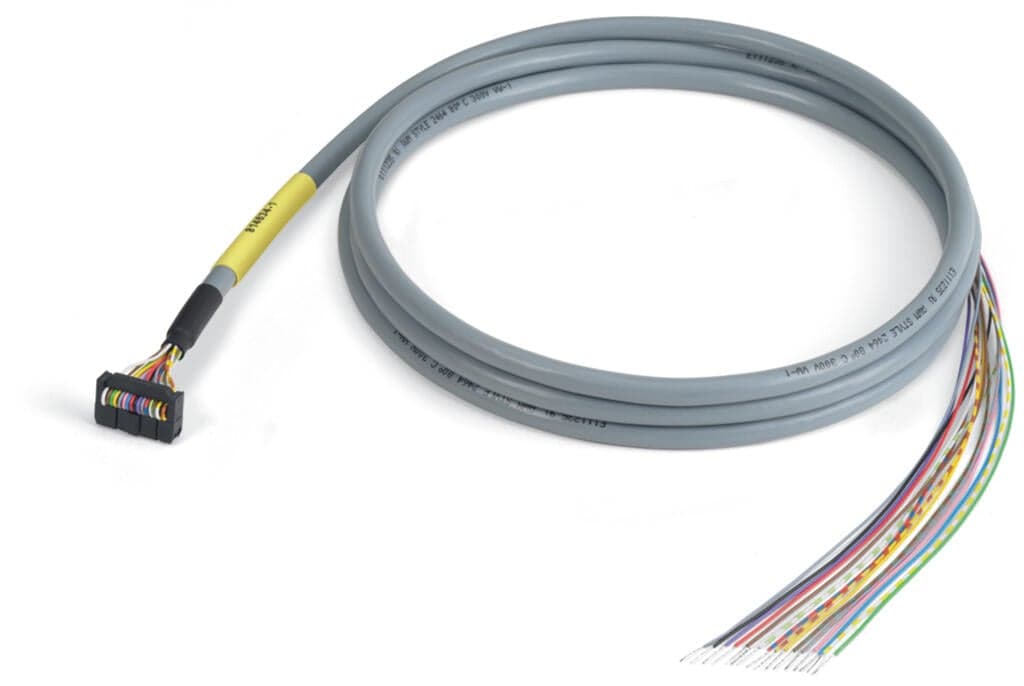

- 1Fast and Reliable Connections: The WAGO 706-100/1602-200 connection cable ensures quick and secure connections with its 16-pole pluggable connector.
- 2Durable Design: Built with a 0.14 mm² conductor cross-section, this cable withstands high currents and maintains performance over time.
- 3Easy Installation: The open-ended design with bare end flying leads simplifies installation and reduces setup time.
- 4IP20 Protection Rating: Offers protection against solid objects larger than 12.5 mm in diameter, ensuring safe operation in various environments.
- 5Compliant with DIN 41651: Meets industry standards for reliable and efficient connections in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | When using more than 10 wires, the maximum current per wire must be reduced to 0.7?A. | Operating voltage | ≤?AC/DC?35?V |
Current per wire (max.) | 1A | Cable type | LiYY |
Color code | per DIN VDE 47100 | Cable length | 2m |
Weight | 202g | Ambient temperature (operation) | -20 … +50 °C |
Product Group | 30 (WAGO France) | eCl@ss 10.0 | 27-06-03-11 |
eCl@ss 9.0 | 27-06-03-11 | ETIM 9.0 | EC001855 |
ETIM 8.0 | EC001855 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | FR | GTIN | 4050821452447 |
Customs tariff number | 8544429090 | RoHS Compliance Status | Compliant,No Exemption |
Pluggable connector | Pluggable connector per DIN 41651; female connector | Pole number 1 | 16 |
Connection type 1 | System | Wire cross-section | 0.14mm2 |
Connector 2 | open-ended | Connection type 2 | open-ended |
Specifications may be subject to change without notice
