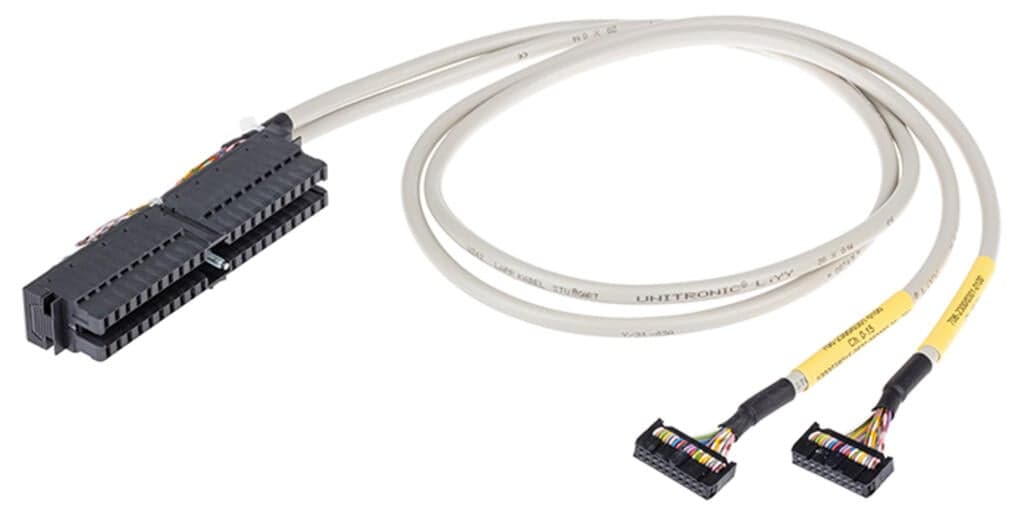

Product Model
706-2300/301-300
Selling Points
- 1Designed for Siemens S7-300 systems
- 2Supports 2 x 16 digital inputs or outputs
- 33-meter length for flexible installation
- 40.14mm² conductor cross-section for reliable connections
- 5IP20 rating for environmental protection
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | When using more than 10 wires, the maximum current per wire must be reduced to 0.7?A. | Inputs/outputs | 2 x 16 digital inputs or outputs |
Operating voltage | ≤?AC/DC?35?V | Current per wire (max.) | 1A |
Cable type | LiYY | Color code | per DIN VDE 47100 |
Cable length | 3m | Weight | 561g |
Ambient temperature (operation) | -20 … +50 °C | Product Group | 30 (WAGO France) |
eCl@ss 10.0 | 27-24-22-20 | eCl@ss 9.0 | 27-24-22-20 |
ETIM 9.0 | EC000237 | ETIM 8.0 | EC000237 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | not specified | Country of origin | FR |
GTIN | 4045454873905 | Customs tariff number | 85444290900 |
RoHS Compliance Status | Compliant,No Exemption | Siemens S7-300 | 6ES7 313-5BE01-0AB0 |
Pluggable connector | Pluggable connector per DIN 41651; female connector | Connection type 1 | System |
Wire cross-section | 0.14mm2 | Connector 2 | Pluggable connector per DIN 41651; female connector |
Pole number (2) | 20 | Connection type 2 | System |
Connector 3 | Siemens 6ES7-392-1BM00-0AA0 | Pole number (3) | 20 |
Connection type 3 | System |
Specifications may be subject to change without notice
