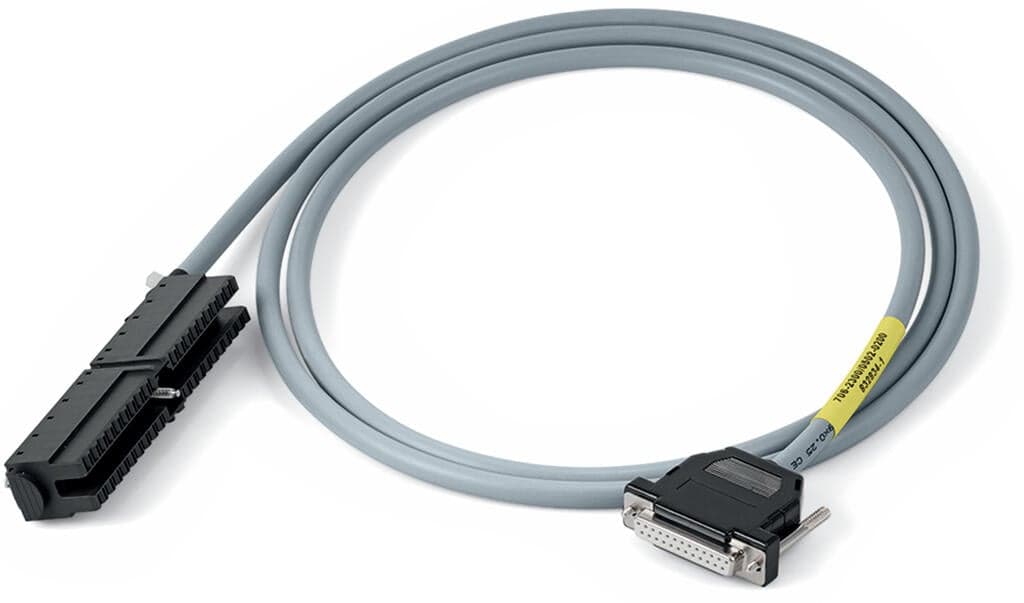

Product Model
706-2300/404-200
Selling Points
- 18 Analog Inputs for Current: Ideal for applications requiring precise current measurement.
- 22 Meter Length: Convenient for various industrial automation setups.
- 325-pin D-sub Female Connectors: Easy to connect and secure with no risk of loose connections.
- 4IP20 Protection Rating: Ensures reliable operation in industrial environments.
- 50.25mm² Conductor Cross-section: Supports a rated current of 2A per conductor for efficient data transfer.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | When using more than 10 wires, the maximum current per wire must be reduced to 1?A. | Inputs/outputs | 8 analog inputs; current |
Operating voltage | ≤?AC/DC?35?V | Current per wire (max.) | 2A |
Cable type | LiYCY | Color code | per DIN VDE 47100 |
Cable length | 2m | Weight | 320g |
Ambient temperature (operation) | -20 … +50 °C | Product Group | 30 (WAGO France) |
eCl@ss 10.0 | 27-24-22-20 | eCl@ss 9.0 | 27-24-22-20 |
ETIM 9.0 | EC000237 | ETIM 8.0 | EC000237 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | not specified | Country of origin | FR |
GTIN | 4045454881702 | Customs tariff number | 85444290900 |
RoHS Compliance Status | Compliant,No Exemption | Siemens S7-300 | 6ES7 331-7NF00-0AB0 |
Pluggable connector | D-subminiature female connector | Connection type 1 | System |
Wire cross-section | 0.25mm2 | Connector 2 | Siemens 6ES7-392-1BM00-0AA0 |
Pole number (2) | 25 | Connection type 2 | System |
Specifications may be subject to change without notice
