Product Model

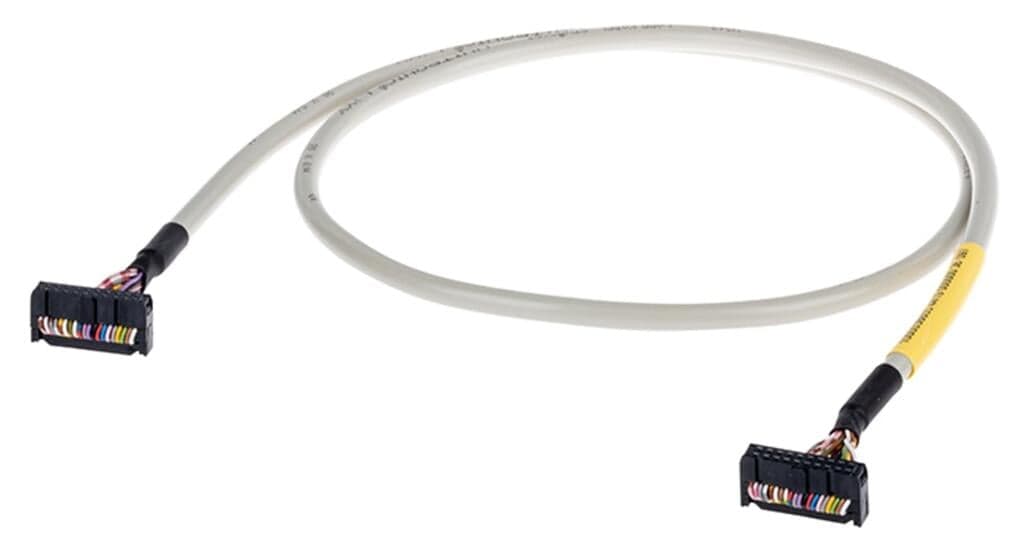

706-3057/300-200
Selling Points
- 116 Digital Inputs/Outputs: Ideal for Schneider TSX applications with 16 digital input or output connections.
- 22 Meters Length: Conveniently sized at 2 meters for easy installation and connectivity.
- 3DIN 41651 Connectors: Equipped with two 20-pin female connectors for secure and reliable connections.
- 4IP20 Protection Rating: Offers protection against solid objects and dust, ensuring reliable operation in various environments.
- 5Rohs Compliant: Meets RoHS standards, ensuring compliance with environmental regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | When using more than 10 wires, the maximum current per wire must be reduced to 0.7?A. | Inputs/outputs | 16 digital inputs or outputs |
Operating voltage | ≤?AC/DC?35?V | Current per wire (max.) | 1A |
Cable type | LiYY | Color code | per DIN VDE 47100 |
Cable length | 2m | Weight | 161g |
Ambient temperature (operation) | -20 … +50 °C | Product Group | 30 (WAGO France) |
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC000237 | ETIM 8.0 | EC000237 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | not specified | Country of origin | FR |
GTIN | 4045454873776 | Customs tariff number | 8544429090 |
RoHS Compliance Status | Compliant,No Exemption | Schneider Modicon Quantum | 140 DDI 364 00 |
Schneider TSX | TSX DEY 16FK | WAGO I/O System 750 | 750-1400 |
Pluggable connector | Pluggable connector per DIN 41651; female connector | Pole number 1 | 20 |
Connection type 1 | System | Wire cross-section | 0.14mm2 |
Connector 2 | Pluggable connector per DIN 41651; female connector | Pole number (2) | 20 |
Connection type 2 | System |
Specifications may be subject to change without notice
