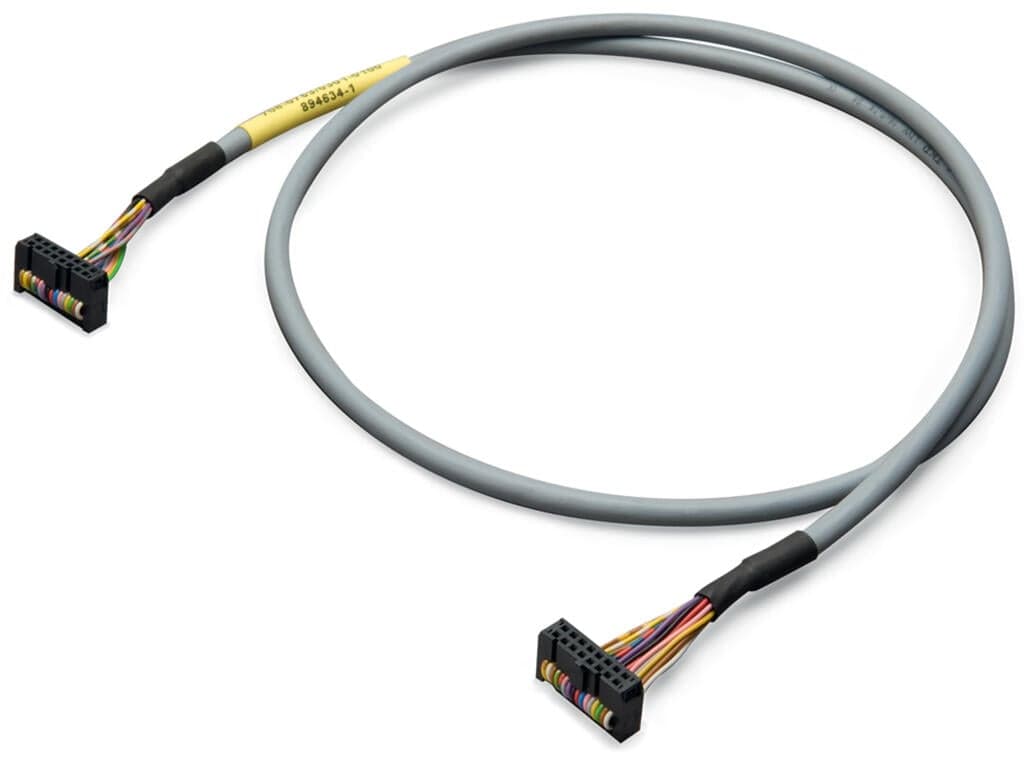

Product Model
706-753/301-300
Selling Points
- 1Connects 2 x 16 digital inputs or outputs for versatile I/O applications.
- 2Features pluggable connectors per DIN 41651 for easy and secure connections.
- 3Conveniently designed with a 3-meter length to meet various installation needs.
- 4Ensures reliable electrical performance with a 0.14 mm² conductor cross-section.
- 5Seamlessly integrates with WAGO I/O System 753 and compatible PLC modules.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | When using more than 10 wires, the maximum current per wire must be reduced to 0.7?A. | Operating voltage | ≤35?VDC |
Current per wire (max.) | 1A | Cable type | LiYY |
Color code | per DIN VDE 47100 | Cable length | 3m |
Weight | 10g | Ambient temperature (operation) | -25 … +70 °C |
Product Group | 30 (WAGO France) | eCl@ss 10.0 | 27-06-03-11 |
eCl@ss 9.0 | 27-06-03-11 | ETIM 9.0 | EC001855 |
ETIM 8.0 | EC001855 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | FR | GTIN | 4050821081654 |
Customs tariff number | 85444290900 | RoHS Compliance Status | Compliant,No Exemption |
Pluggable connector | Pluggable connector per DIN 41651; female connector | Pole number 1 | 16 |
Connection type 1 | System | Wire cross-section | 0.14mm2 |
Connector 2 | Pluggable connector per DIN 41651; female connector | Pole number (2) | 16 |
Connection type 2 | System |
Specifications may be subject to change without notice
