Product Model

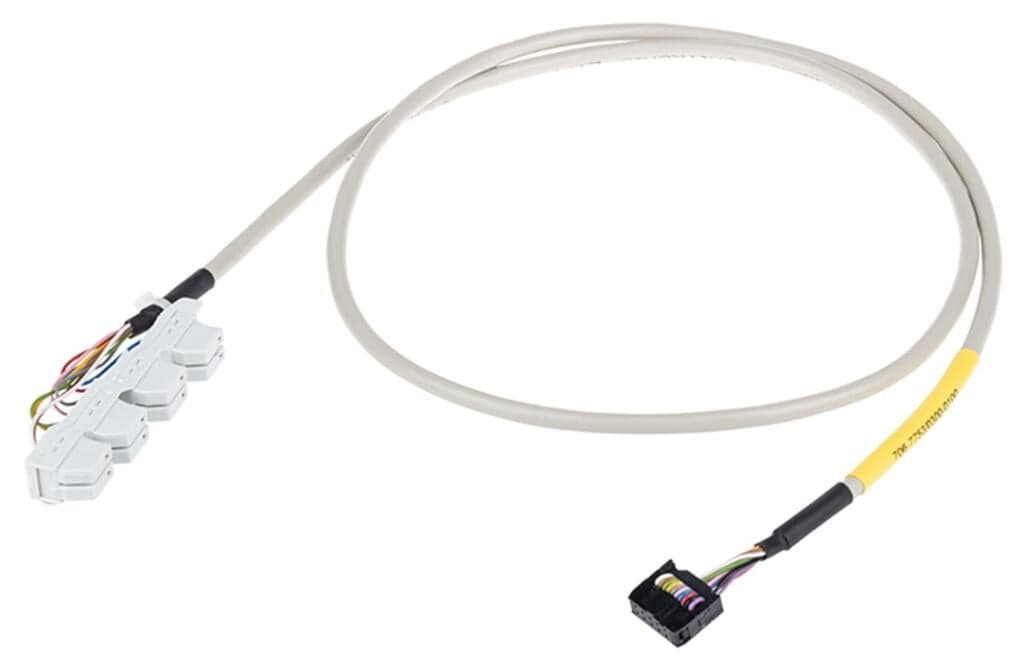

706-7753/300-100
Selling Points
- 1Designed for WAGO-I/O-SYSTEM, ensuring seamless integration.
- 2Features 8 digital inputs or outputs for versatile connectivity.
- 3Available in 1m length, perfect for various applications.
- 4Conductor cross-section of 0.14mm² for reliable signal transmission.
- 5Ideal for industrial automation and control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Observe the maximum operating temperature of the WAGO I/O modules used. | Inputs/outputs | 8 digital inputs or outputs |
Operating voltage | ≤?AC/DC?35?V | Current per wire (max.) | 1A |
Cable type | LiYY | Color code | per DIN VDE 47100 |
Cable length | 1m | Weight | 58g |
Ambient temperature (operation) | -20 … +50 °C | Product Group | 30 (WAGO France) |
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC000237 | ETIM 8.0 | EC000237 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | not specified | Country of origin | FR |
GTIN | 4045454874100 | Customs tariff number | 8544429090 |
RoHS Compliance Status | Compliant,No Exemption | WAGO I/O System 753 | 753-430 (x1) |
Pluggable connector | Pluggable connector (753 Series) | Pole number 1 | 8 |
Connection type 1 | System | Wire cross-section | 0.14mm2 |
Connector 2 | Pluggable connector per DIN 41651; female connector | Pole number (2) | 10 |
Connection type 2 | System |
Specifications may be subject to change without notice
