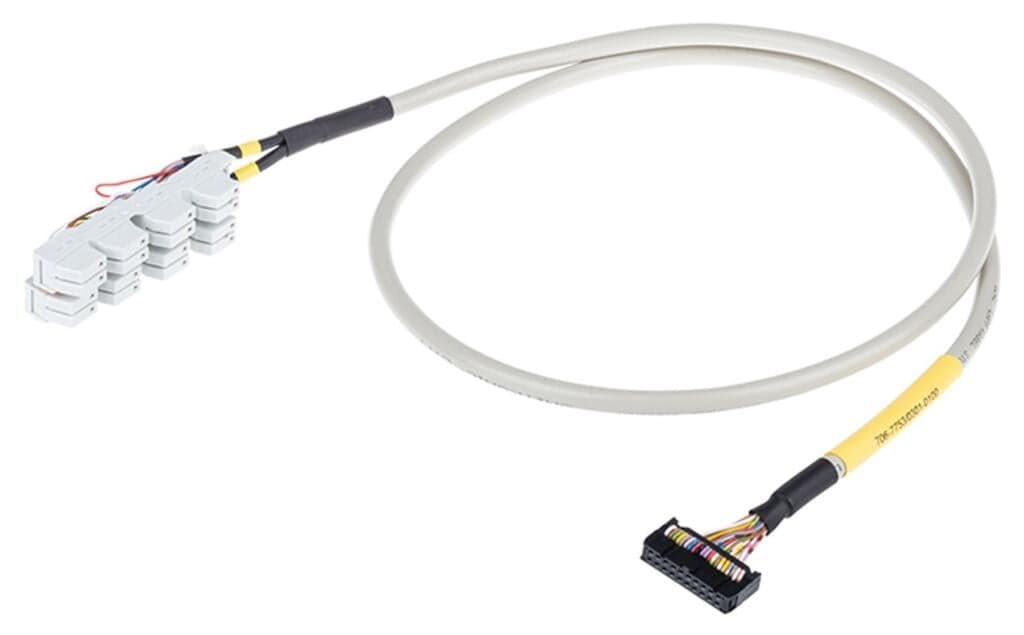

Product Model
706-7753/301-200
Selling Points
- 1High-quality connections ensure reliable performance in demanding environments.
- 2Durable design withstands harsh industrial conditions and heavy use.
- 3Easy installation with snap-in terminals for quick setup.
- 4Compact size fits seamlessly into tight spaces, reducing clutter.
- 5Meets or exceeds industry standards for electrical safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Observe the maximum operating temperature of the WAGO I/O modules used. | Inputs/outputs | 16 digital inputs or outputs |
Operating voltage | ≤?AC/DC?35?V | Current per wire (max.) | 1A |
Cable type | LiYY | Color code | per DIN VDE 47100 |
Cable length | 2m | Weight | 196g |
Ambient temperature (operation) | -20 … +50 °C | Product Group | 30 (WAGO France) |
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC000237 | ETIM 8.0 | EC000237 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | not specified | Country of origin | QU |
GTIN | 4045454874131 | Customs tariff number | 8544429090 |
RoHS Compliance Status | Compliant,No Exemption | WAGO I/O System 753 | 753-430 (x2) |
Pluggable connector | Pluggable connector per DIN 41651; female connector | Pole number 1 | 8 |
Connection type 1 | System | Wire cross-section | 0.14mm2 |
Connector 2 | WAGO 753-110 | Pole number (2) | 8 |
Connection type 2 | System | Connector 3 | WAGO 753-110 |
Pole number (3) | 20 | Connection type 3 | System |
Specifications may be subject to change without notice
