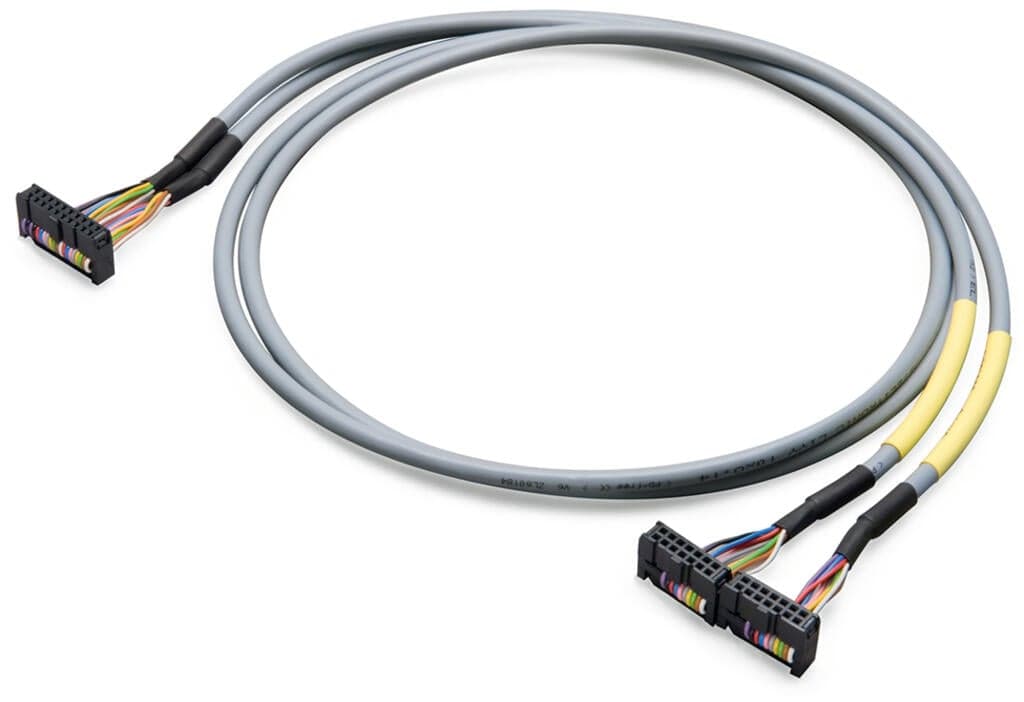

Product Model
706-7753/304-300
Selling Points
- 1Connects WAGO I/O modules with 2 x 8 analog inputs or outputs.
- 2Compatible with WAGO-I/O-SYSTEM, 750 Series.
- 3Length: 3 meters, ideal for various system wiring needs.
- 4Conductor cross-section: 0.14 mm², ensuring reliable signal transmission.
- 5Compliant with DIN 41651 standards for secure connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | When using more than 10 wires, the maximum current per wire must be reduced to 0.7?A. | Inputs/outputs | 2 x 8 analog inputs or outputs |
Operating voltage | ≤?AC/DC?35?V | Current per wire (max.) | 1A |
Cable type | LiYY | Color code | per DIN VDE 47100 |
Cable length | 3m | Weight | 261g |
Ambient temperature (operation) | -20 … +50 °C | Product Group | 30 (WAGO France) |
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC000237 | ETIM 8.0 | EC000237 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | FR |
GTIN | 4050821081630 | Customs tariff number | 8544429090 |
RoHS Compliance Status | Compliant,No Exemption | Pluggable connector | Pluggable connector per DIN 41651; female connector |
Pole number 1 | 20 | Connection type 1 | System |
Wire cross-section | 0.14mm2 | Connector 2 | Pluggable connector per DIN 41651; female connector |
Pole number (2) | 14 | Connection type 2 | System |
Connector 3 | Pluggable connector per DIN 41651; female connector | Pole number (3) | 14 |
Connection type 3 | System |
Specifications may be subject to change without notice
