Product Model
709-107
Selling Points

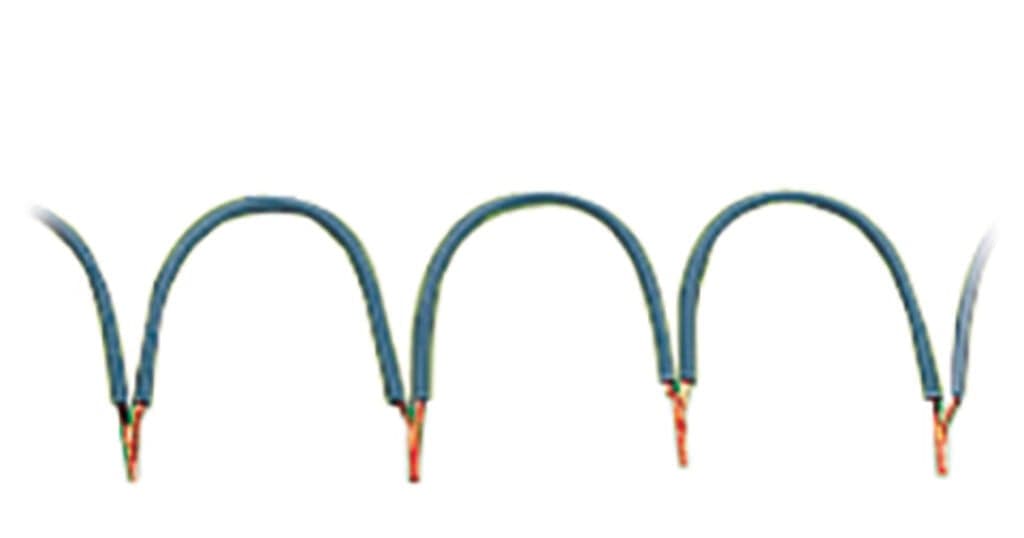

- 1Insulated wire commoning chain with 32 connections.
- 2Rated for a current of 6A, suitable for various electrical applications.
- 3Gray color for easy identification.
- 40.5 mm² insulation for reliable performance.
- 5Compliant with ROHS standards for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conductor preparation | Ultrasonically tip-bonded | Note (material data) | Information on material specifications can be found here |
Color | gray | Fire load | 0.104MJ |
Weight | 15.5g | Product Group | 2 (Terminal Block Accessories) |
eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?(1)?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4017332190510 | Customs tariff number | 8544429090 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 50V |
Rated current | 6A | Solid conductor | 0.5?mm2?/ 20?AWG |
Specifications may be subject to change without notice
