Product Model
709-183
Selling Points

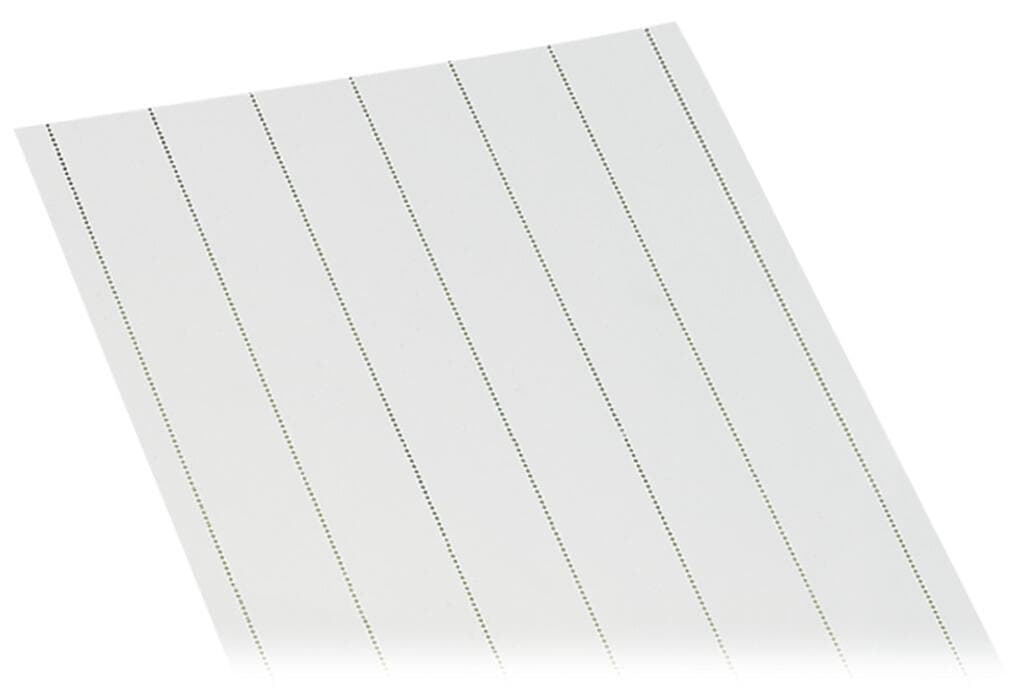

- 1Ideal for laser printers with 6 white marking strips.
- 2Made from halogen-free polyester for safety.
- 3Compatible with DIN A4 card format for easy insertion.
- 4Suitable for group marking or safety information needs.
- 5Compliant with ROHS standards for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Marking method | Laser printing | Marking | plain |
Delivery form | DIN A4 card | Delivery form configuration | DIN A4 card with 6?strips |
Printing device | Laser printer | Depth | 0.375?mm |
Strip width | 30mm | Mounting type | Pushing in |
Color | white | Material | Polyester |
Adhesive information | without adhesive | Halogen-free | Yes |
Weight | 6.2g | Fire load | 0.185MJ |
Ambient temperature (storage) | +10 … +21 °C | Ambient temperature (operation) | -40 … +150 °C |
Relative humidity | 40 … 50?% | Product Group | 2 (Terminal Block Accessories) |
eCl@ss 10.0 | 27-14-11-37 | eCl@ss 9.0 | 27-14-11-37 |
ETIM 9.0 | EC000761 | ETIM 8.0 | EC000761 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4017332361453 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
